2-24
Up angle The minimum angle required by the raised tool to change
the direction of cutting (marking). This reduces the degree
by which the tool pries the work.
○○○
Ring distance If minute line segments continue, a rounding distance (R) is
provided between each two of the line segments to add
another one.
○○○
Press
correction
The pressure applied to the tool at the time of descending is
to be corrected when cutting (marking) heavy-weight
works. The works can be cut without fail when the tool is
lowered by adding a pressure correction value to the previ-
ously-set pressure value.
○○
Press (Y) The pressure applied to the roller/cutter can be corrected in
terms of Y-axis, to perform marking with a Y-axis pressure
applied separately from an X-axis pressure. To mark a piece
of corrugated fiberboard, it can be placed with its flutes ori-
ented in the Y-axis for marking with a lighter pressure
applied as compared with the X-axis.
R5 speed The speed that is employed when cutting an arc that is 5
mm or less in radius. If [OFF] is selected, the arc is cut at
the previously specified speed.
○○
R10 speed The speed that is employed when cutting an arc that is less
than 5 mm or more and 10 mm or less in radius.If [OFF] is
selected, the arc is cut at the previously specified speed.
○○
R15 speeds The speed that is employed when cutting an arc that is 10
mm or more and less that 15 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
○○
R20 speed The speed that is employed when cutting an arc that is 15
mm or more and less that 20 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
R30 speed The speed that is employed when cutting an arc that is 25
mm or more and less that 30 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
R40 speed The speed that is employed when cutting an arc that is 30
mm or more and less that 40 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
R50 speed The speed that is employed when cutting an arc that is 40
mm or more and less that 50 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
R100 speed The speed that is employed when cutting an arc that is 50
mm or more and less that 100 mm. If [OFF] is selected, the
arc is cut at the previously specified speed.
Setting item Description Pen
Tangential
cutter
Crease
roller
Swivel
blade

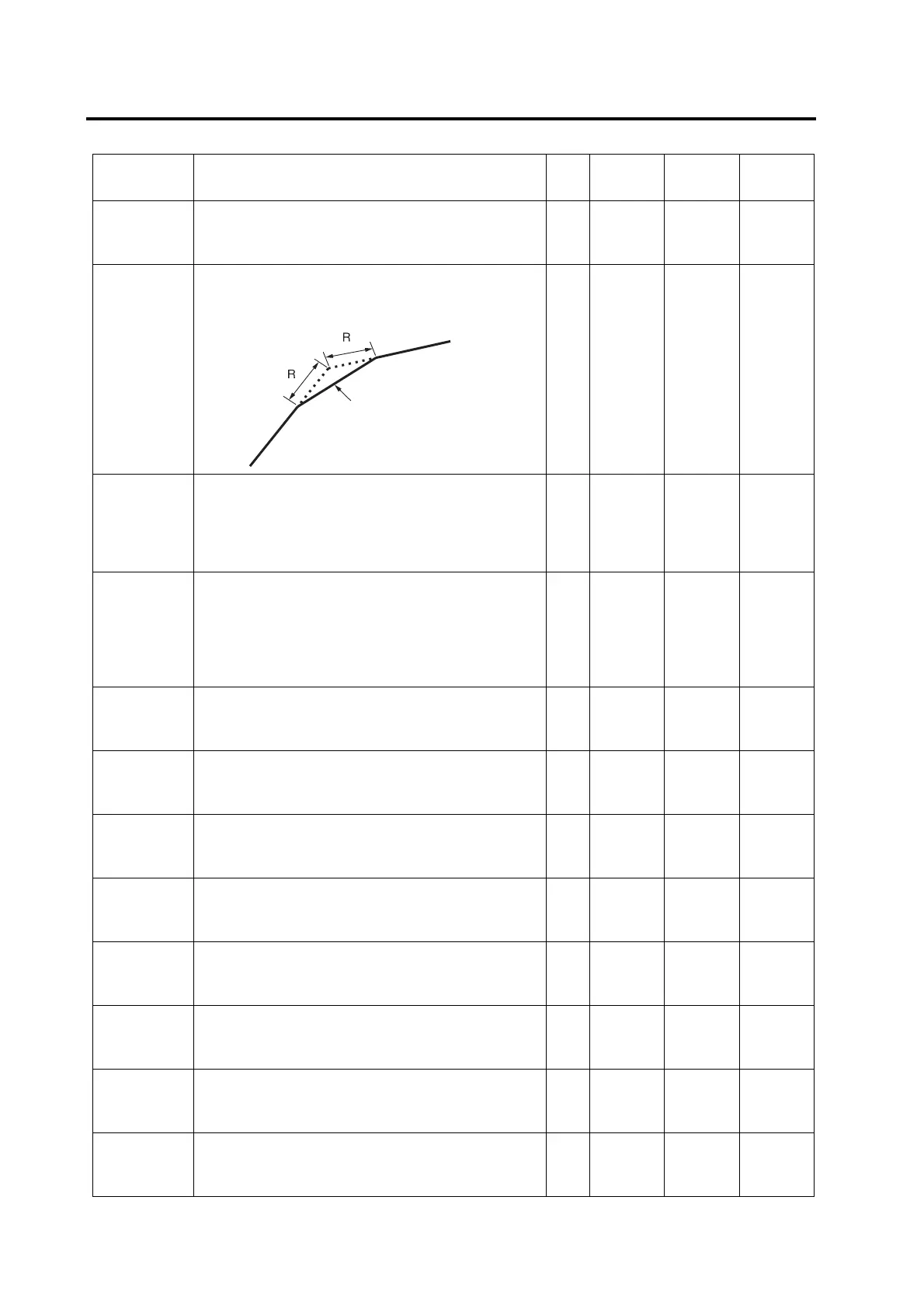

Line segment 2
Added line segment
Line segment 1
