MIMAKI CF2 Series User Manual

TOOLS ARE NOT ALIGNED TO EACH OTHER [TOOL SELECT]
3-11
Adjustment of the θ angle
The rotating angle of the roller is adjusted.
Eliminate the difference in rotating angle between the plotted pattern and the marked pattern.
One pattern is used for adjustment.

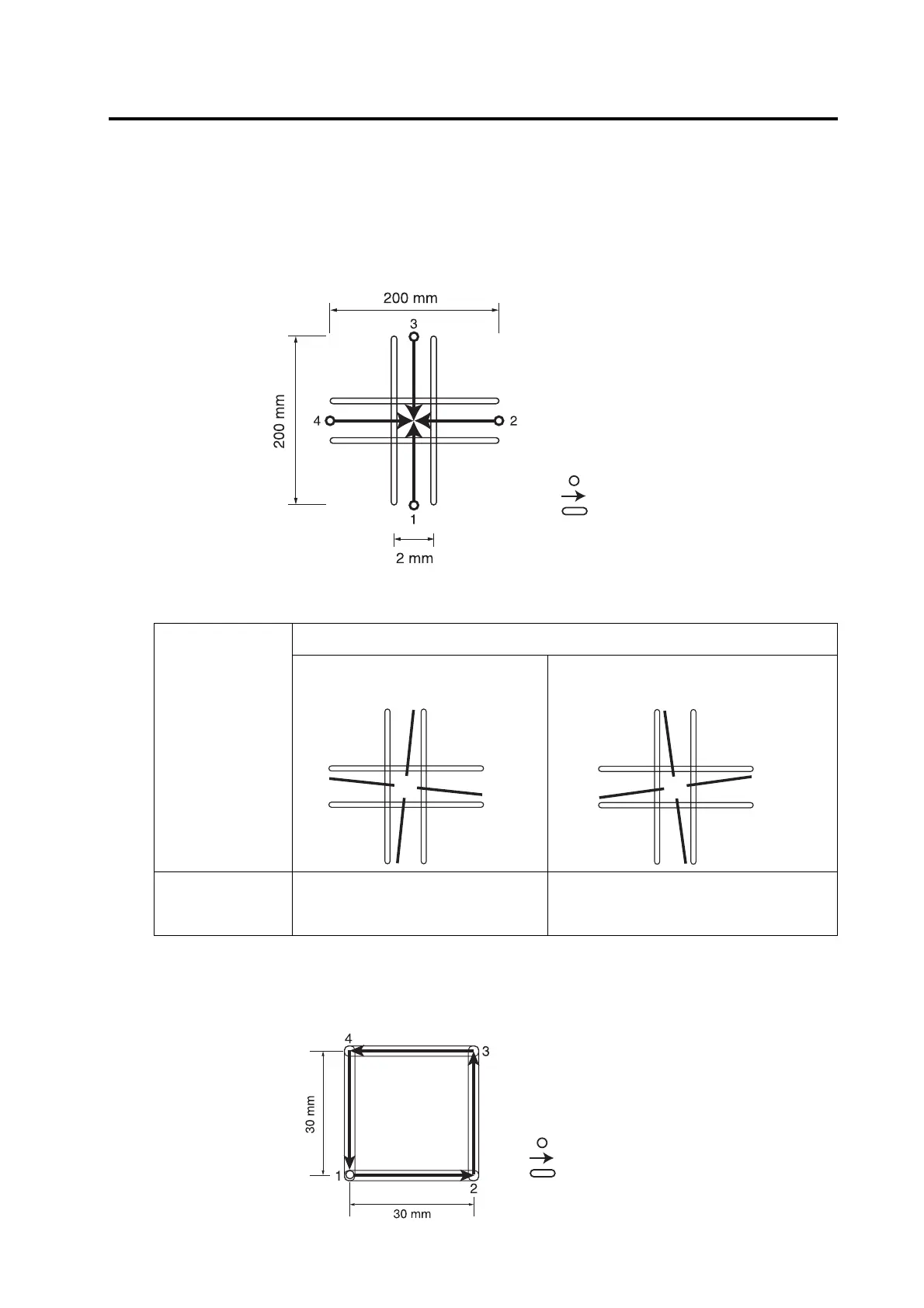

The illustration below gives the size of the pattern and the cutting order.
Pattern 1
How to adjust:
Follow the adjusting procedure given below.
Adjustment of the offset
Offset amount of the marked pattern as from the plotted pattern is adjusted in terms of the X- and Y-axes.
One pattern is used for adjustment.
The illustration below indicates the size of the pattern and the cutting order.
Sample pattern
Pattern 1 (Pattern 2)
How to adjust
If the cut pattern rotates clockwise as
compared with the plotted pattern,
decrease the θ value for the roller.
If the cut pattern rotates counter clockwise as
compared with the plotted pattern, increase the θ
value for the roller.
:Pointfromwhichmarkingstarts
:Directionofmarking
:Pen
:Pointfromwhichmarkingstarts
:Directionofmarking
:Pen
