ECG Dialog ECG – Arrhythmia
9 - 6 V Series Operating Instructions

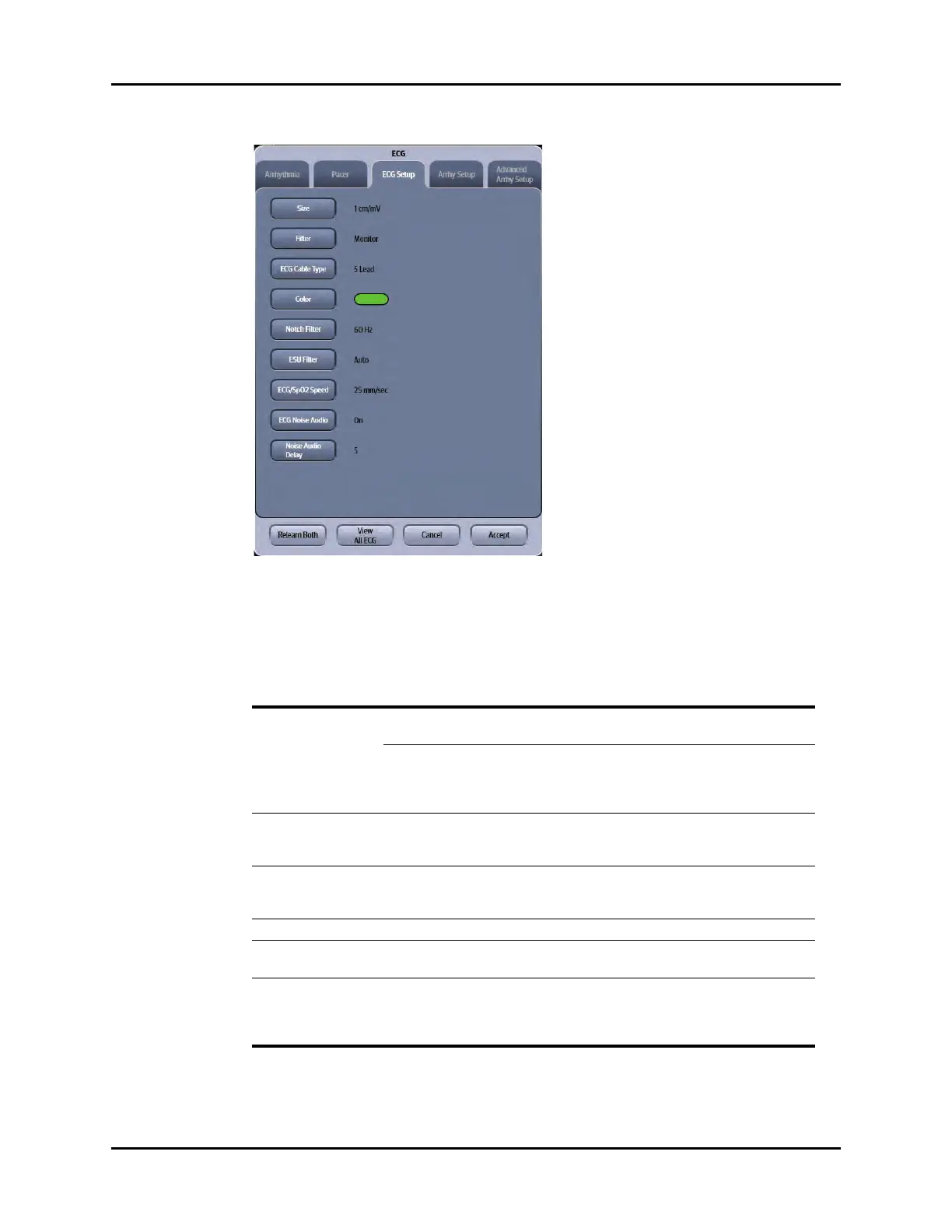

FIGURE 9-5 Example ECG Setup Tab Accessed from Arrhy Digital Tile
3. Select the buttons described in TABLE 9-2 to configure the tab.
TABLE 9-2
BUTTON DESCRIPTION/ COMMENTS SETTINGS*
ECG Leads Configures the ECG lead that displays in the
selected waveform tile.
Dependent on the lead set
currently in use.
NOTE: The ECG Leads button only displays when the ECG
dialog is accessed from the ECG waveform tile. It is not
shown when accessing the ECG dialog from selecting
the Arrhy digital tile.
Size Configures the ECG waveform size for each
unique lead type in all operating modes.
0.125 cm/mV, 0.25 cm/mV, 0.5
cm/mV, 1 cm/mV, 2 cm/mV, 4cm/
mV
Filter Configures the ECG filter in all operating
modes.
Monitor, ST, Diagnostic
Refer to "ECG Filters" on page 9-31
for additional information.
ECG Cable Type Configures the current ECG Cable. 3 Lead, 5 Lead and 12 Lead
Color Configures the ECG waveform color. 16 distinct colors
Default color is green.
Notch Filter Configures the ECG Notch filter. This menu
item is used to filter out AC line noise from
the ECG waveform.
Off, 50 Hz, 60 Hz
The default is 50 Hz when the
monitor is not configured for the
US.
* The factory default configuration settings are in bold.
