ST Dialog ST
16 - 6 V Series Operating Instructions

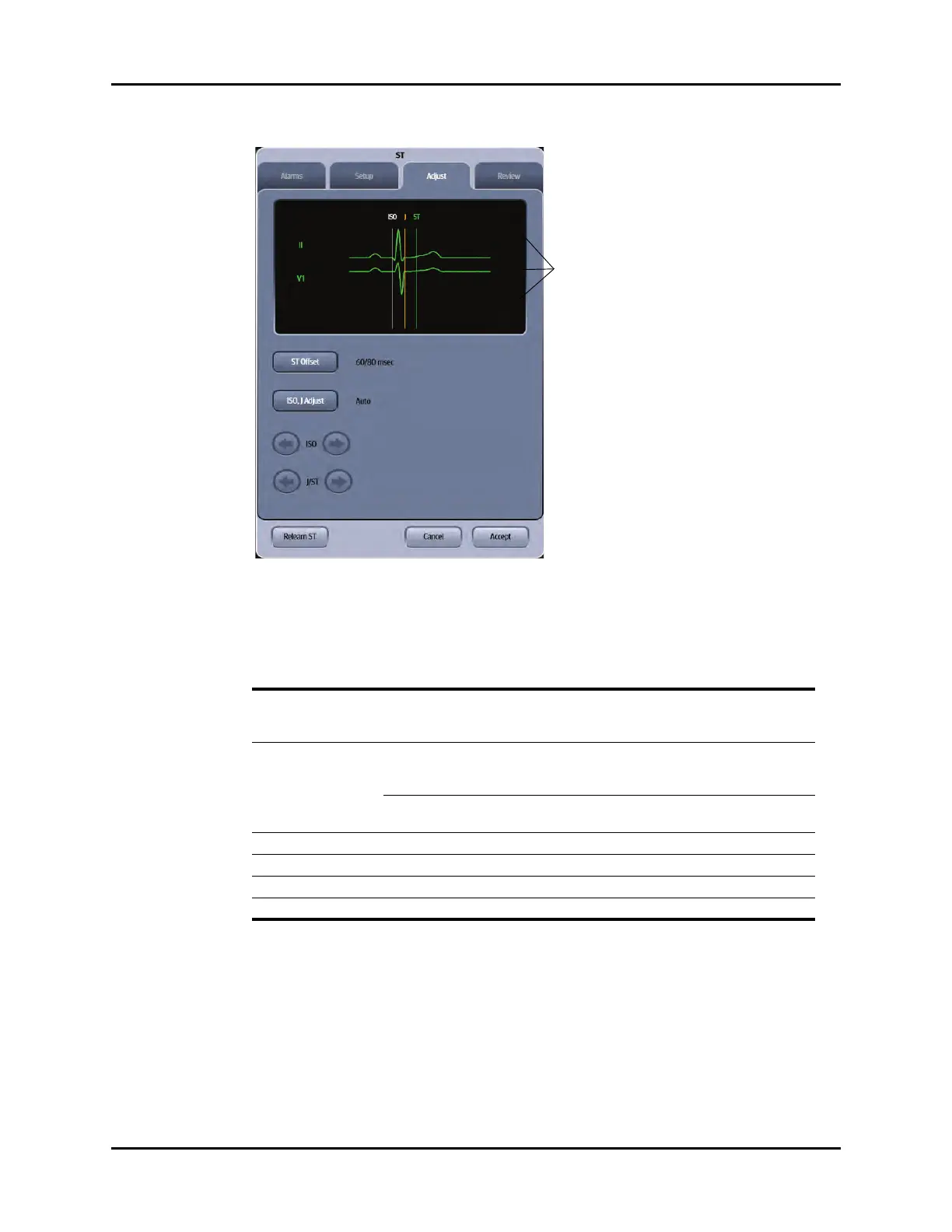

FIGURE 16-3 Example ST Dialog other than 3-lead (Adjust Tab)
3. Adjust the parameter using the tab buttons described in TABLE 16-2.
4. Select Accept or Cancel.
•The Accept button saves the settings and closes the dialog.
•The Cancel button closes the dialog without saving the settings
TABLE 16-2
BUTTON DESCRIPTION / COMMENTS OPTIONS*
ST Offset Based on the msec setting selected, moves
the ST point further or closer to the J point in
the ST template.
60/80 msec, 40 msec, 60 msec, 80
msec
ISO, J Adjust Selecting Auto fixes the ISO and J/ST points.
Selecting Manual allows the clinician to
manually adjust ISO and J/ST points.
Auto, Manual
NOTE: To adjust the ISO, J/ST points manually, the ISO, J Adjust
must be set to Manual.
ISO left arrow If ISO, J Adjust is set to manual, the button adjusts the ISO reference line to the left.
ISO right arrow If ISO, J Adjust is set to manual, the button adjusts the ISO reference line right.
J/ST left arrow If ISO, J Adjust is set to manual, the button adjusts the J and ST reference lines left.
J/ST right arrow If ISO, J Adjust is set to manual, the button adjusts the J and ST reference lines right.
* The factory default configuration settings are in bold.
