V Series Operating Instructions 4 - 7
Mechanical Functions V 12

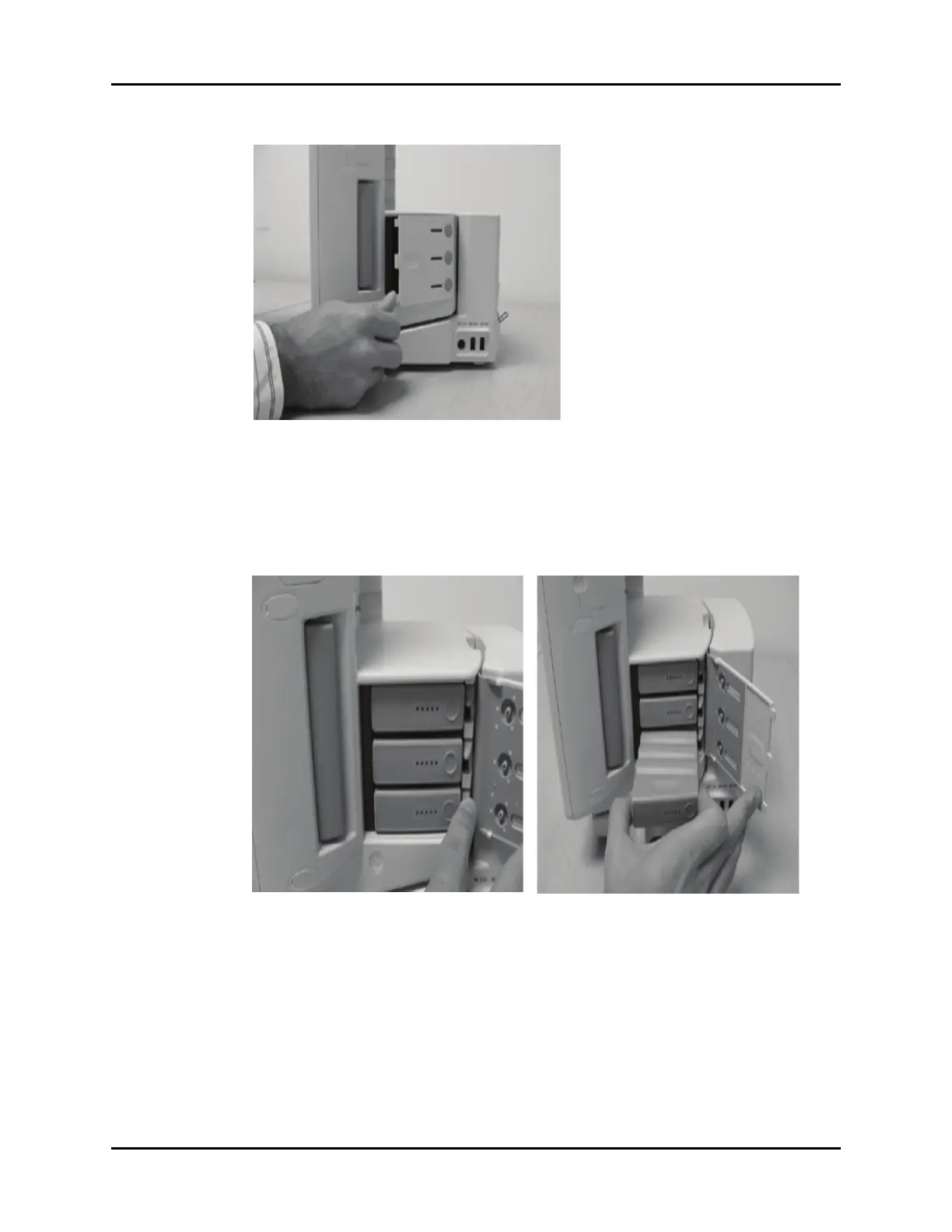

FIGURE 4-10
3. With the same or other hand, prepare to receive the desired battery by positioning your fingers
close or against the battery. Press downward against the release button adjacent to the desired
battery (shown in FIGURE 4-11). The corresponding battery ejects from the battery bay. Grab it
and remove it completely from the V 12 (shown in FIGURE 4-12).
FIGURE 4-11 FIGURE 4-12
