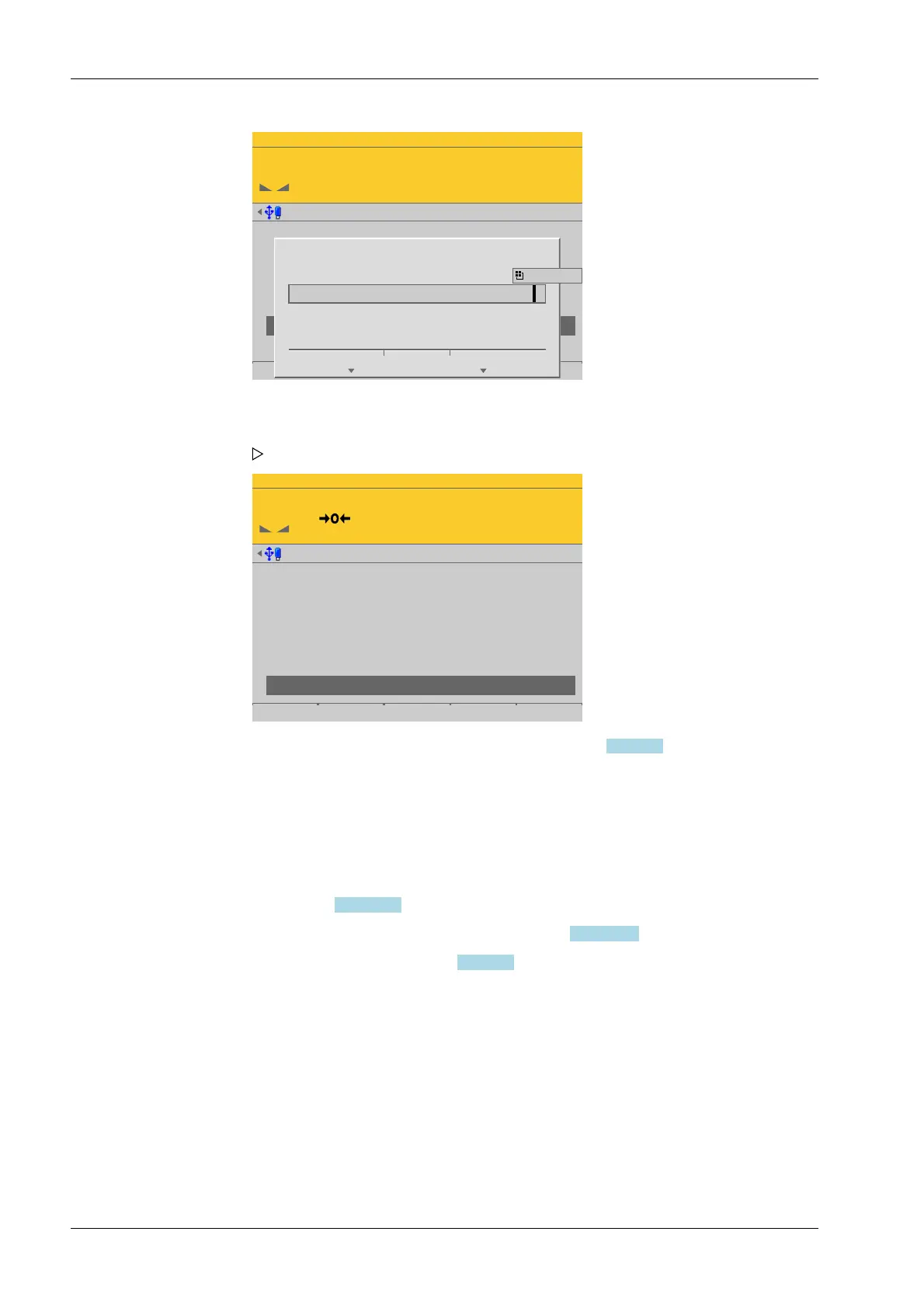

Minebea Intec PR5900 - Page 208

WP-D Max 200t d= 0.02t
11.200+ t
Calibration @admin
Number of vessel feet
Local gravity
Max
Scale interval
Dead load
Calibration weight
Corner correction
4
9.81379 m/s²
200.000 t
0.020 t
7.508 t
10000 d
1 d
Vessel Save
Place the adjustment weight on the
platform and enter the value.
11.000 t
Ok Cancel
Unit
WP-D Max 200t d= 0.02t
0.000 t
Calibration @admin
Number of vessel feet
Local gravity
Max
Scale interval
Dead load
Calibration weight
Corner correction
4
9.81379 m/s²
200.000 t
0.020 t
7.508 t
11.000 t
10000 d
1 d
Vessel Save
4.7.8.3.4.2 Modify
In this menu item (under Calibrate the scale), changes are made to an existing calibration
of the digital precision pressure load cell Pendeo
®
Process.
- For parameters (local gravity, maximum capacity, scale interval, calibration weight),
see Chapter 4.7.8.3.4.1.
- Dead load (subsequent correction), see Chapter 4.7.8.3.4.3.
- Corner correction, see Chapter 4.7.8.3.7
Accessible via MENU - [Operating] - [System setup] - [Weighing points] - [Weighing
point x] - [Calib] - [Calibrate the scale] - [Modify] .
14. Place calibration weight on the center of the scale and enter the weight value.
15. Press the [OK] soft key and remove the calibration weight.
The corner load (dead load set to zero) is displayed.
16. Perform a corner correction if necessary; see Chapter 4.7.8.3.7.
17. Press the [Save] soft key to save the calibration.
