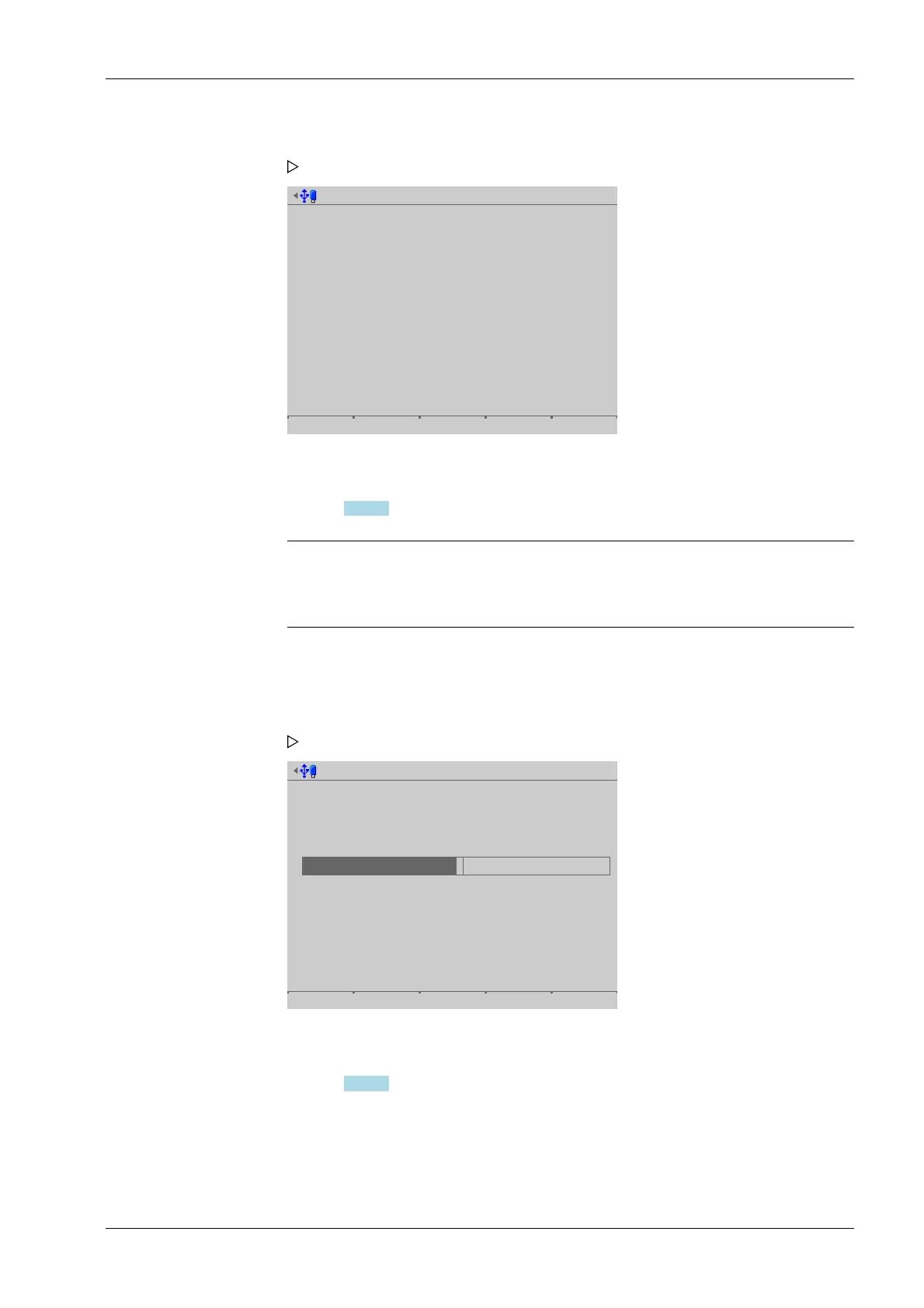

Test I/O-Cards @admin
Option-2
in use by PLC task
Test mode
Digital Outputs
Digital Inputs
PR5900/12 Digital I/O
1
Monitoring
0000
0000
Monitor Intern Extern
Test mode 1 [Monitoring] is active.
The current input and output values from the PLC (application) are displayed; see
Chapter 6.11.3.1.
Note:
If the option is not used by the application, test mode 3 is active and the values
cannot be changed.
Input: 0 and 1 (e.g.: 1111; 0010)
Test I/O-Cards @admin
1
2
3
Option-2
in use by PLC task
Test mode
Digital Outputs
Digital Inputs
PR5900/12 Digital I/O
1
Internal test
0000
0000
Monitor Intern Extern
Test mode 2 [Internal test] is active.
The inputs are simulated to test the functionality of the PLC (application); see
Chapter 6.11.3.1.
Input: 0 and 1 (e.g.: 1111; 0010)
1. Select and conrm the desired card (here: PR 5900/12).
An information window is displayed.
2. Press the [Intern] soft key.
3. Enter the input values using the keyboard and conrm.
An information window is displayed.
4. Press the [Extern] soft key.
5. Enter the output values using the keyboard and conrm.
