Designation Data

Bus termination

110 Ω at the cable ends

Bus load 100 mA

Cable type 2x2 screened twisted pair

Cable length 100 m @ 10 Mbps, 1200 m @ 156 kbps

Certicates - Type: ABS-CCL (H/W: 1.01, S/W: 2.00.05, CC-Link: 2.0)

- Reference no. 372

Note:

The CSP le is stored on the CD supplied with the device (Fieldbus directory of the

respective device). The current le is also available for download via the Internet:

http://www.minebea-intec.com

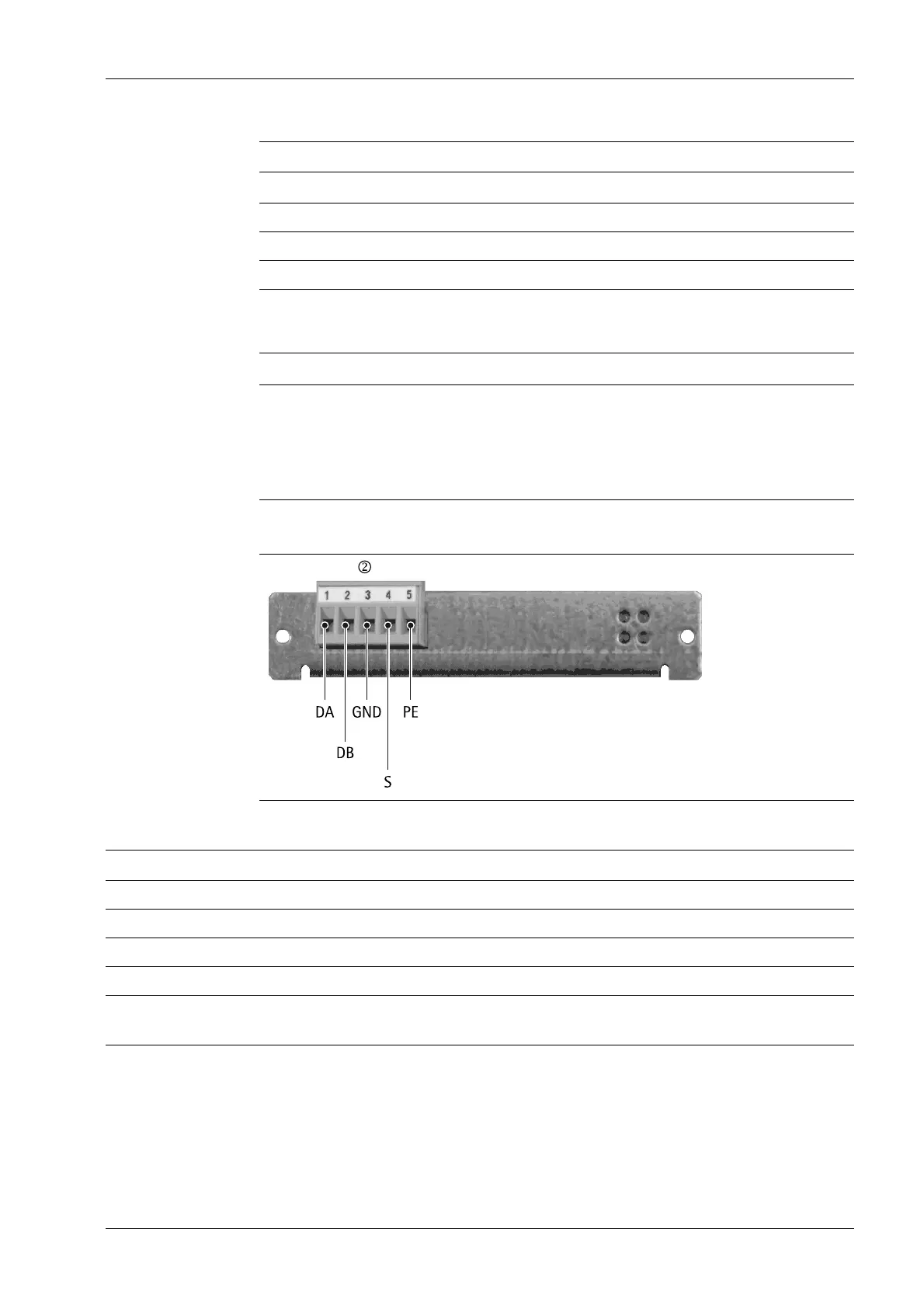

CC-Link terminal

Allocation of the 5-pole terminal block

Pin assignment Signal Description

1 -------------------- DA Communication RS-485 RxD/TxD (+)

2 -------------------- DB Communication RS-485 RxD/TxD (–)

3 ------------ GND Digital ground

4 -------------------- S Cable screen

5 -------------------- PE, according to AnyBus S-speci-

cation

Housing ground

4 Device installation X3 Process Indicator PR 5410

EN-109 Minebea Intec
