LED 1 LED 2 LED 3
No function
LED 4
Constant green Connection (HW) Online, link establis-
hed
Initialized, no error
Flashing green Send/receive data Online in stop
Flashing green,
quickly
Engineering tool for
identication is acti-
ve
Flashing red Conguration error,
no station name/IP
address, internal er-
ror
4.6.16 EtherNet IP interface

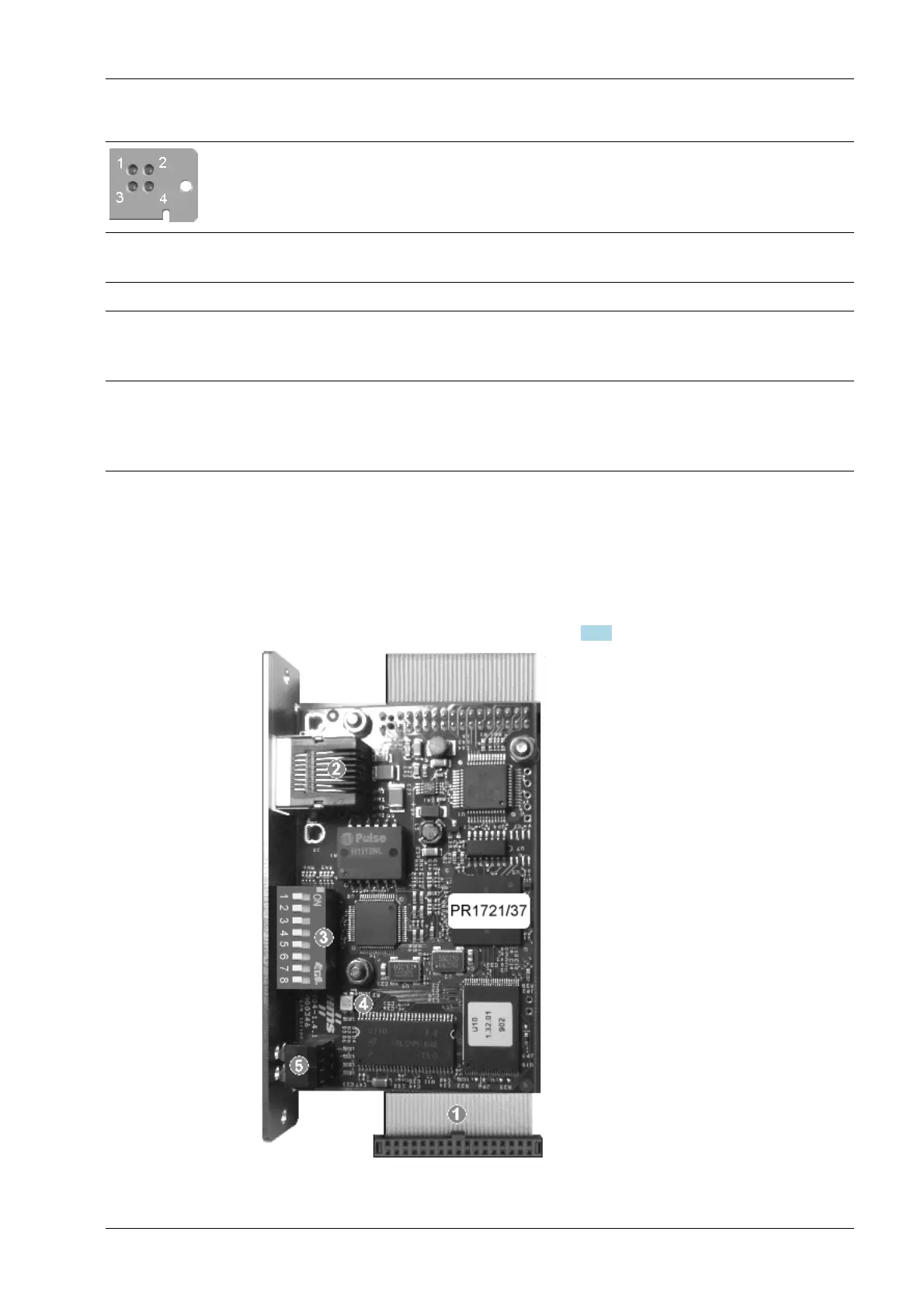

The EtherNet IP interface card has the type designation PR 1721/37.
The eldbus card is equipped with a standard RJ-45 socket ② for network connection.
It contains a powerful TCP/IP and EtherNet-IP interface connection with transfer rates of
10 or 100 Mbit/s.
The card is inserted into "Slot 4" ① (see Chapter 4.6.1).
4 Device installation X3 Process Indicator PR 5410
EN-113 Minebea Intec
