S Channel Current
0+20 mA DC
Voltage
0+10 V DC
Voltage
0+5 V DC
S202-5 … … … …
Input impedance
250 Ω 100 kΩ >10 MΩ
4.6.5 BCD output (open emitter)

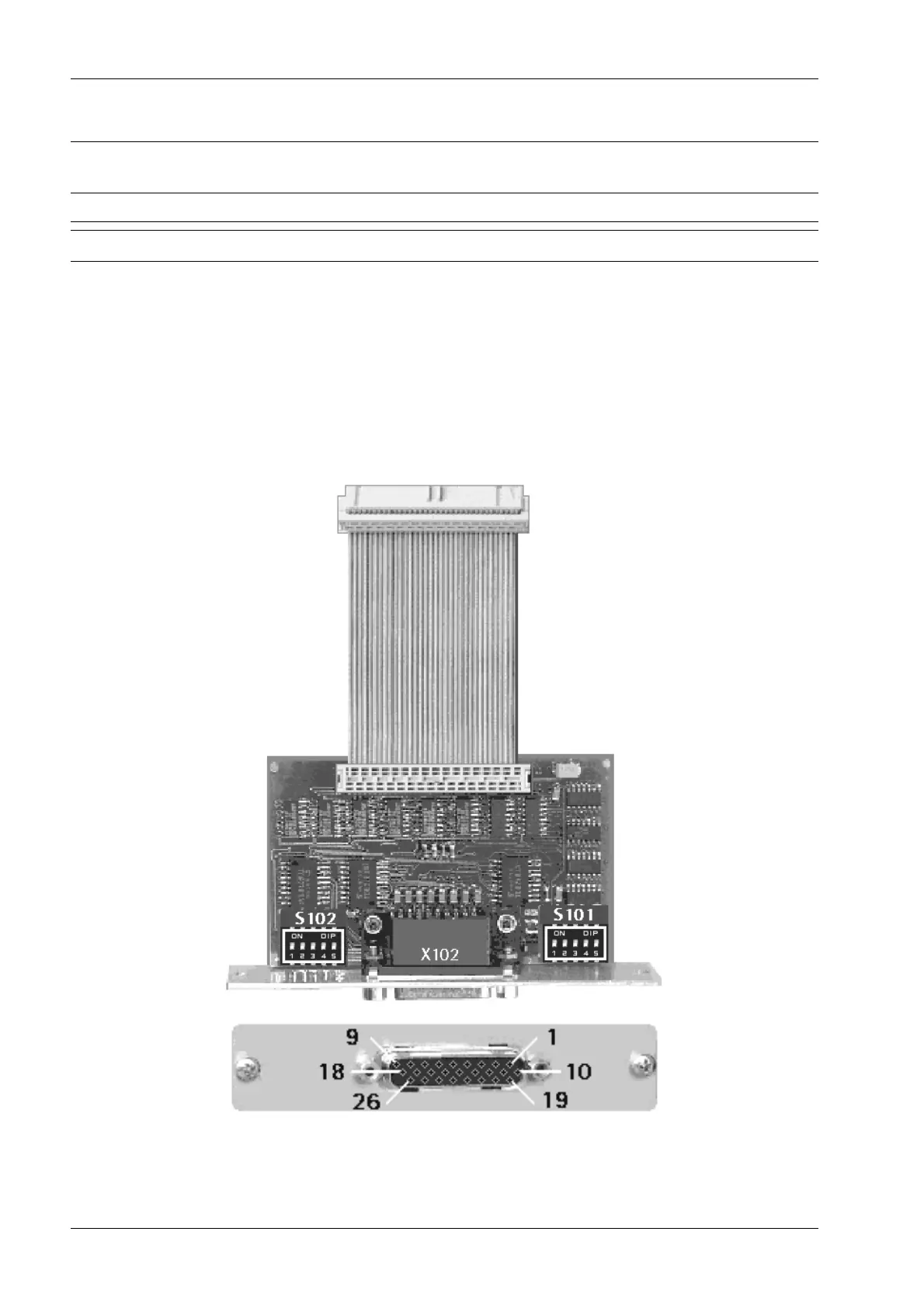

This interface card has the type designation PR 5510/08.
A PR 5510/08 card can be plugged into "Slot 1" or "Slot 2."
The plug-in card is used for BCD-coded output of a 5-decade weight value.
Cyclical output of the weight value with 4-bit (plus or minus sign, stability, error). The
value is intrinsically consistent and can be output continuously or the digital input
"DATA_IN" control can be used to freeze (hold) the value.
Before installing the card, set switches "S101" and "S102".
X3 Process Indicator PR 5410 4 Device installation
Minebea Intec EN-76
