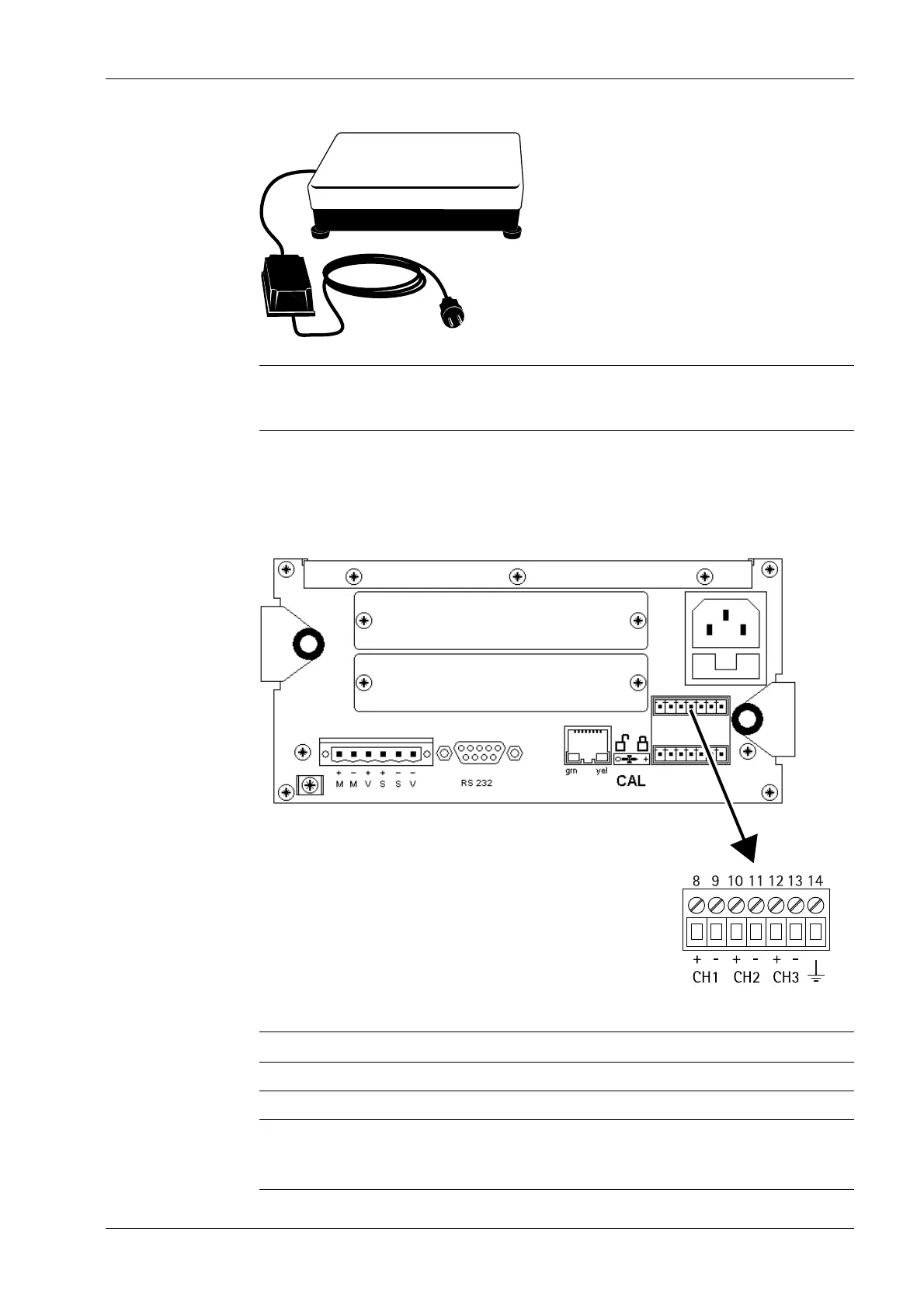

4.4.5 Digital inputs
The main board is equipped with 3 digital inputs for the process control. They are
electrically isolated by optocouplers and each 2-pin potential-free.
The interface can be congured by software.
Technical data
Description Data
Connection Terminal, 7-pin
Number of inputs 3 (CH1, CH2, CH3)
Input voltage Logic 0: 0 to 5 V DC or open
Logic 1: 10 to 28 V DC
Passive, external power supply required.
