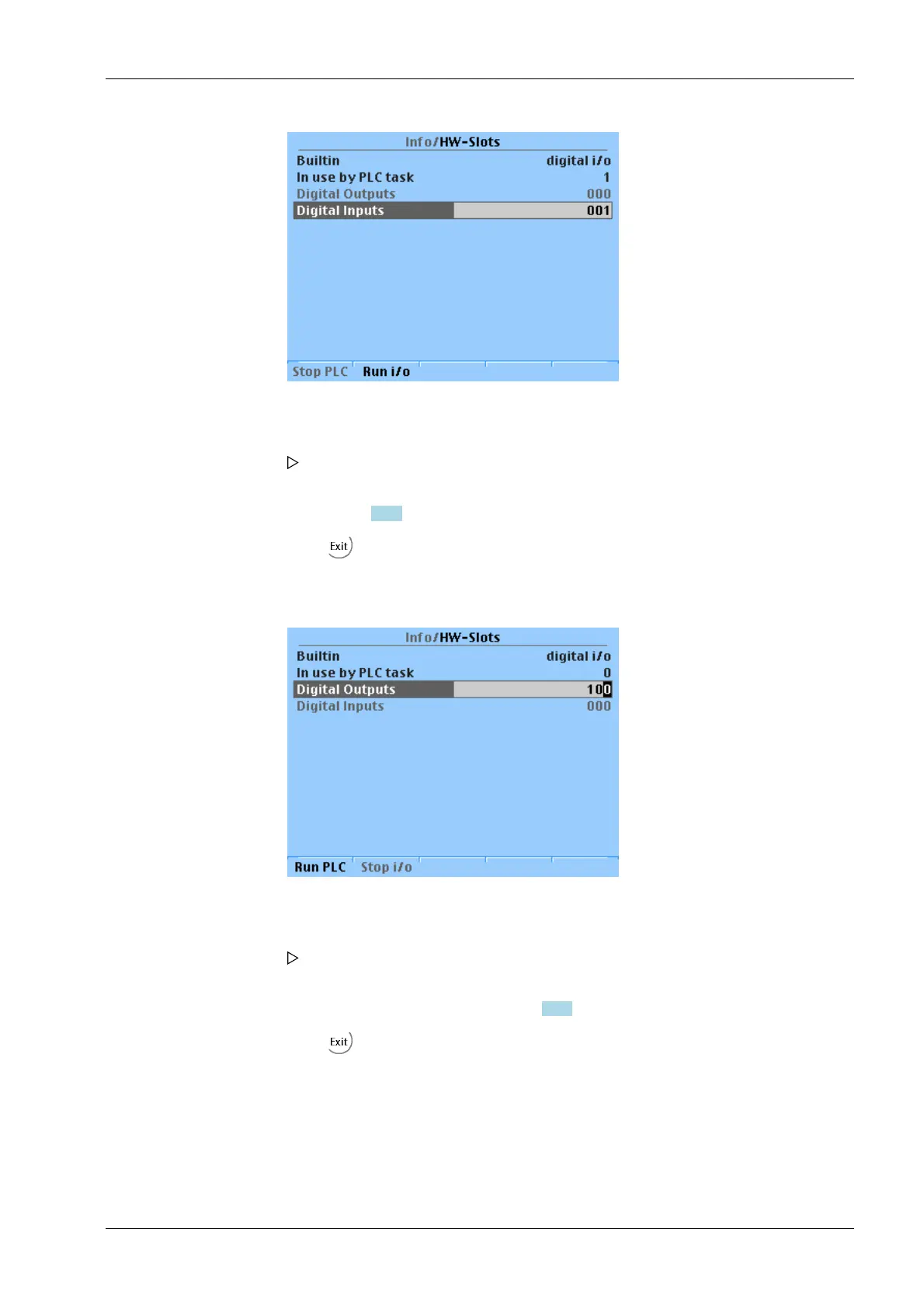

Input: 0 and 1 (e.g.: 111; 001)
An info window is shown briey.
Input: 0 and 1 (e.g.: 111; 100)
9.2 Functions via the WEB site
9.2.1 General information
If the device is connected to the network, it can be displayed e.g.in the "Windows"
operating system under "Network".
3. Enter the input values using the keyboard and conrm.
The inputs are simulated to test the functionality of the PLC (application); see
Chapter 9.1.4.
An info window is shown briey. The "Internal" test mode is active.
4. Press to return to the previous window.
5. Press the [Stop PLC] softkey.
6. Enter the output values using the keyboard and conrm.
The physical inputs and outputs (hardware) are tested without the involvement of
the PLC (application) (see Chapter 9.1.4).
An info window is shown briey. The "External" test mode is active.
7. Press to return to the previous window.
9 Extended functions X3 Process Indicator PR 5410
EN-271 Minebea Intec
