7.17.8.3 Saving parameters
7.17.9 Conguring digital outputs
Congure the required function for [Output 1] to [Output 3] by selecting a signal from the
list.
The output is set to the corresponding state.
Selection list for output functions
Function SPM Bit Description
no condition --- No condition
actual diginp1 X00 = 0 digital input 1: not active
actual diginp2 X01 = 0 digital input 2: not active
actual diginp3 X02 = 0 digital input 3: not active

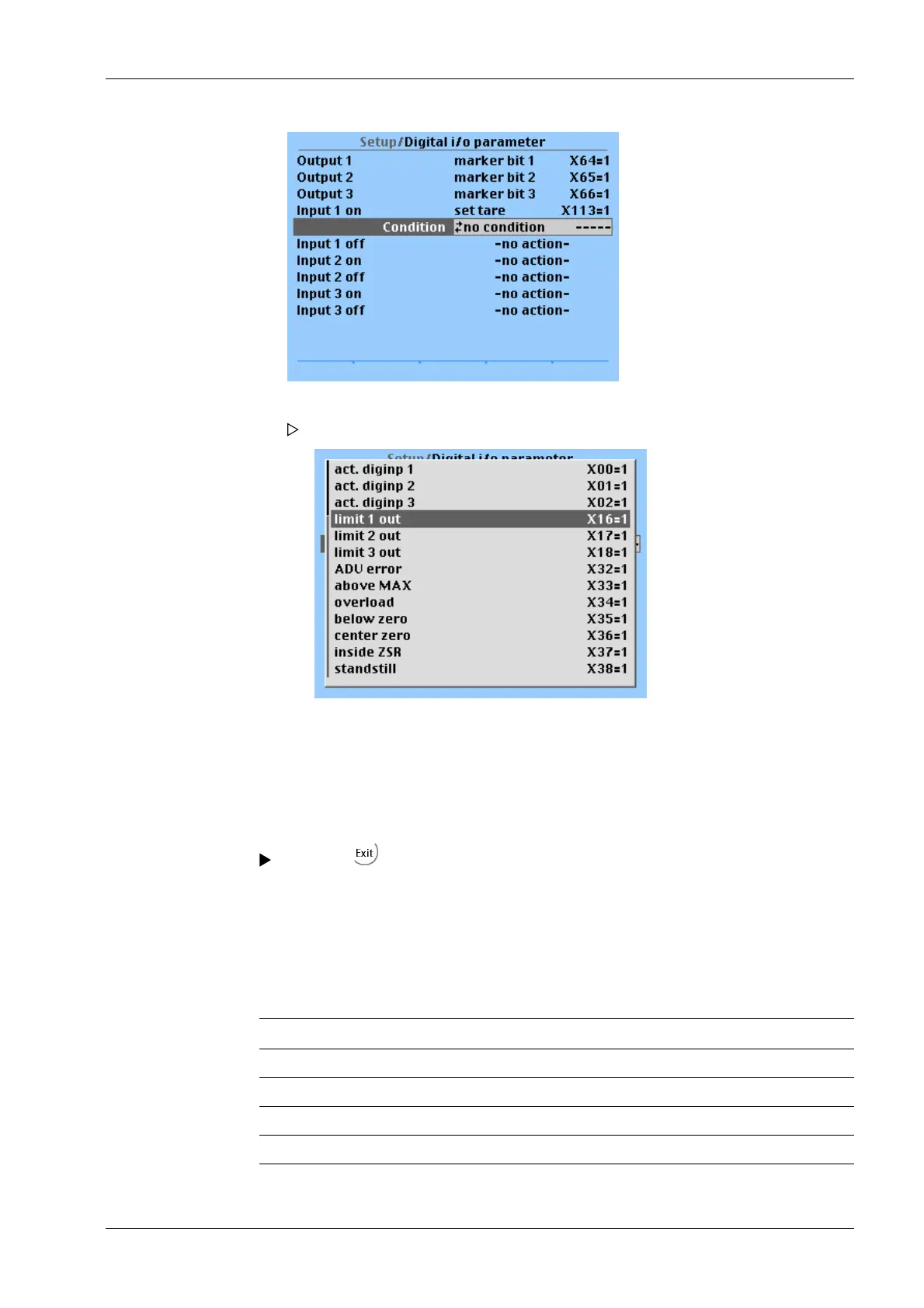

1. Select and conrm the condition line of the appropriate parameter.
A selection window opens.
2. Select and conrm the appropriate line (here: If input 1 changes from 0 to 1 [Input 1
on], a taring signal is triggered only, if the condition under [Condition] is met (limit 1
out = active).
3. If applicable, select additional conditions for the other parameter and conrm.
Press the softkey to exit the menu.
7 Commissioning X3 Process Indicator PR 5410
EN-233 Minebea Intec
