4.6.13 DeviceNet interface

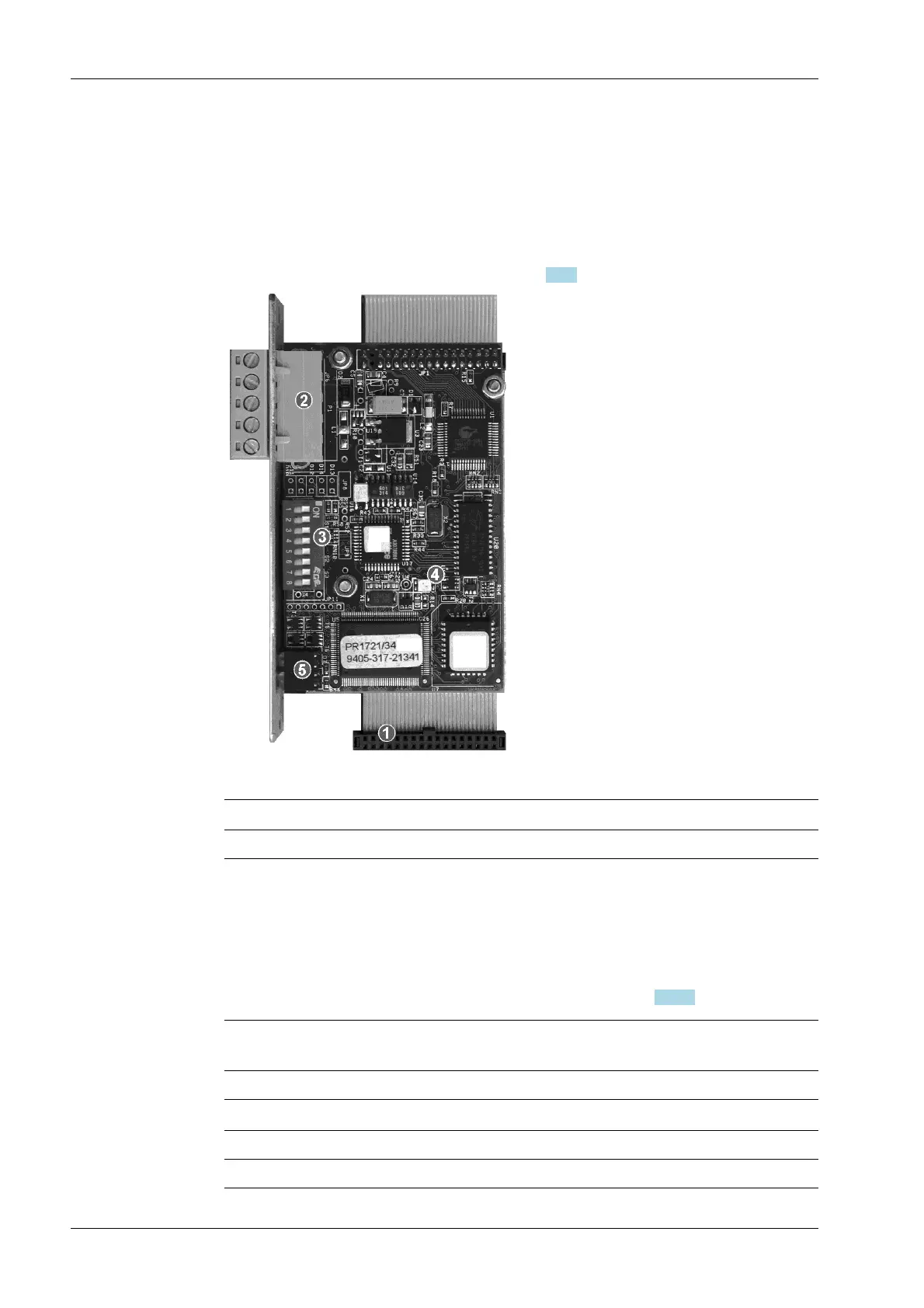

The DeviceNet interface card has the type designation PR 1721/34.
The eldbus card contains all functionalities to make a complete DeviceNet slave with a
CAN controller and transmission speeds up to 500 kbit/s.
The DeviceNet connection is established by 5-pin terminal ②.
The card is inserted into "Slot 4" ① (see Chapter 4.6.1).
Technical data
Description Data
Transfer rate 125, 250 and 500 kbit/s
Protocol DeviceNet Master Slave
- Polling procedure (polled IO)
- CRC error recognition according to IEC 62026 (EN 50325)
- Max. 64 station nodes
- Data width max. 512 byte "input & output"
- Watchdog Timer ④ (see Chapter 4.6.10)
Conguration EDS le "sag_5410.eds"
MAC-ID (162)
Potential isolation Yes, optocoupler and DC/DC converter
Bus termination
120 Ω at the cable ends
Bus load 33 mA @ 24 V DC
Cable type DeviceNet; color: petrol green; 2x2 twisted pair; screened
