Press the [Cancel] softkey to accept and display the existing values.
7.16.6 Assigning load cells
The load cells (serial number) can be assigned to the place of installation in this menu.
This is important for correcting the dead load (distribution to the individual load cells), for
corner correction and in the event of load cell replacement.
An example of a possible assignment is shown below.

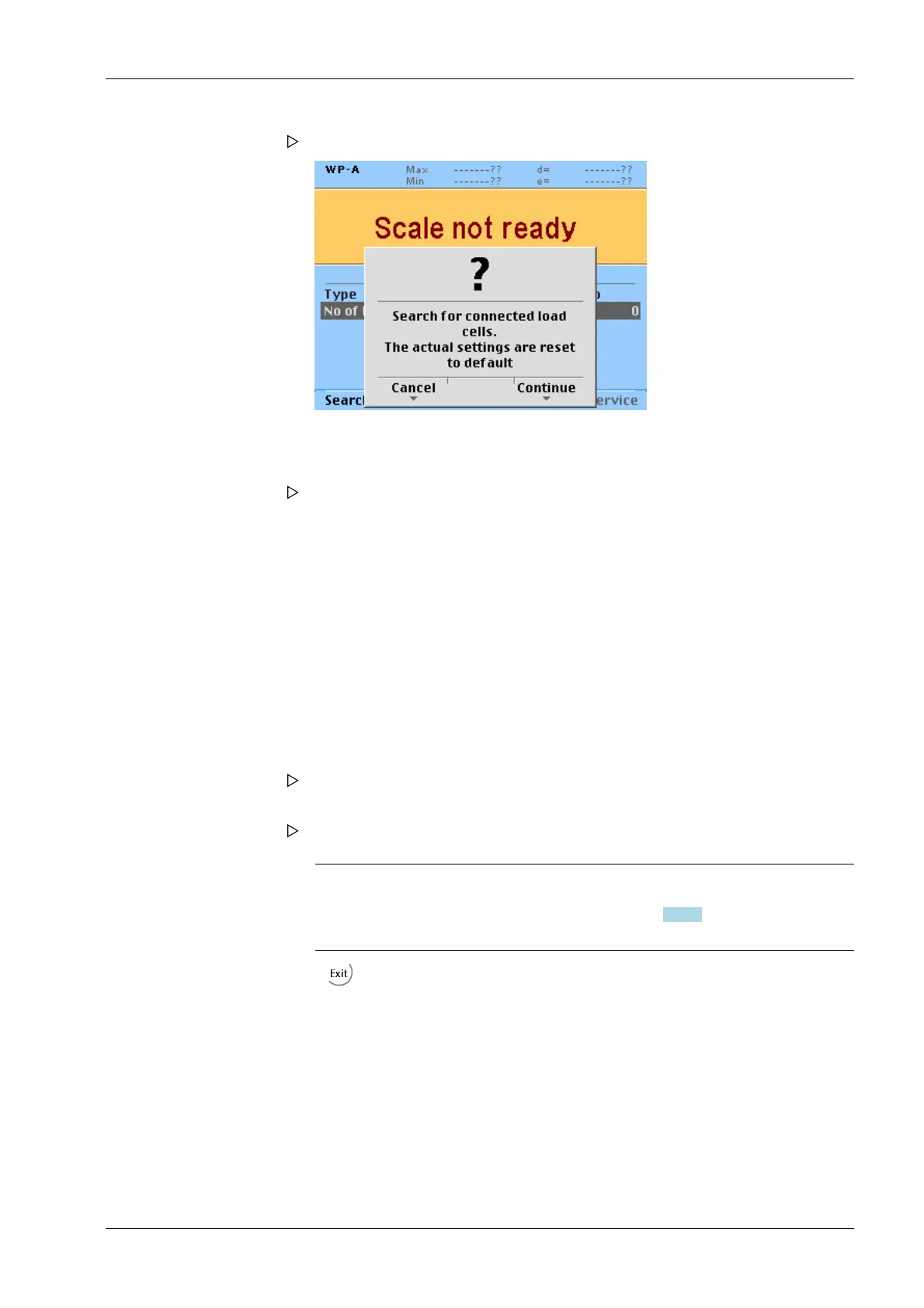

A prompt window opens.
4. Press the [Continue] softkey to start a new search process.
[Type]
Type of load cells
[No of LC]
Number of load cells
[LC 1n]
Serial number/name of the load cells
[WP serial number]
Weighing point serial number(is displayed after search)
A window with load cell information opens
5. Press the [View] softkey.
The load cells are displayed with their item number, serial number, and load.
6. Select the desired load cell and press the [Info] softkey.
Note:
If load cell names have been assigned (see Chapter 7.16.8), the view can be
switched with the [by name] softkey.
The load cell data is displayed.
7. Press to exit the menu and save.
7 Commissioning X3 Process Indicator PR 5410
EN-197 Minebea Intec
