Minebea Intec X3 Process Indicator PR 5410 User Manual

Note:
The assignment from the installation should be documented in the case of load cells
being replaced.

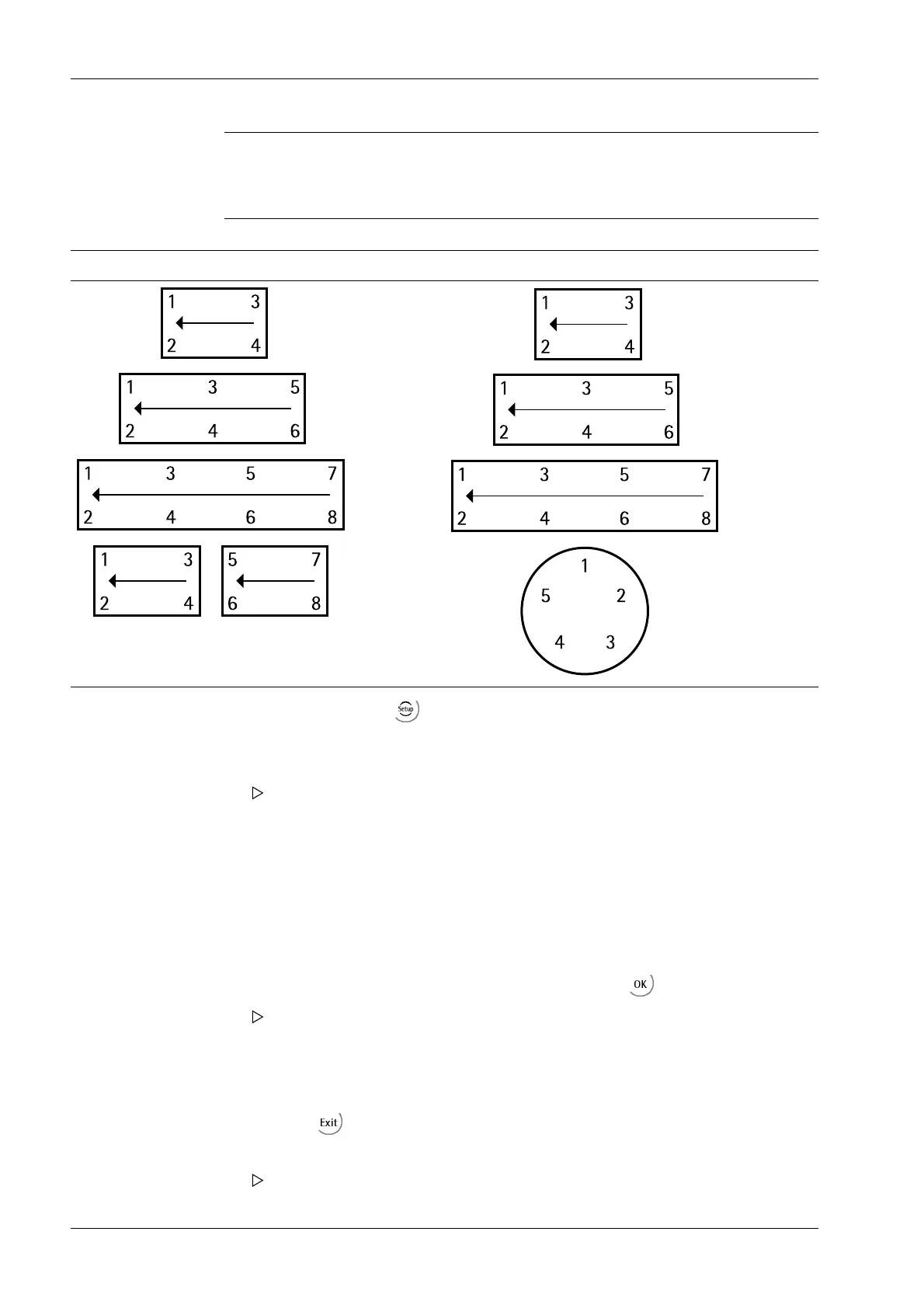

with load cells of type Pendeo Truck with load cells of type Pendeo Process
The menu is accessed via - [Weighing point] - [Weighing point A] - [Assign] - [View] .
The load cells are assigned by placing minimum weights on the scale (approx. 50 kg).
As soon as the device detects the weight change, the corresponding line is selected.
1. Unload the scale.
2. Press the [Assign] softkey.
You are prompted to conrm.
3. Press the [Continue] softkey to reset the dead load information and start the
assignment procedure.
4. Press the [Cancel] softkey to not start the assignment.
5. Place the weight on the corner/load cell which will be assigned no. 1 later.
6. Conrm the assignment of the rst load cell by selecting .
The future LC no. is shown at the far right of the line.
7. Remove the weight.
8. Repeat these steps for load cells 24.
9. Press the [Accept] softkey.
10. Press the softkey to exit the menu and save.
11. Press the [View] softkey.
The new assignment will be displayed.
