4.6.14 CC-Link interface
The CC-Link interface card has the type designation PR 1721/35.
The eldbus card contains all functions to provide a complete CC-Link slave with transfer
rates up to 10 Mbps.

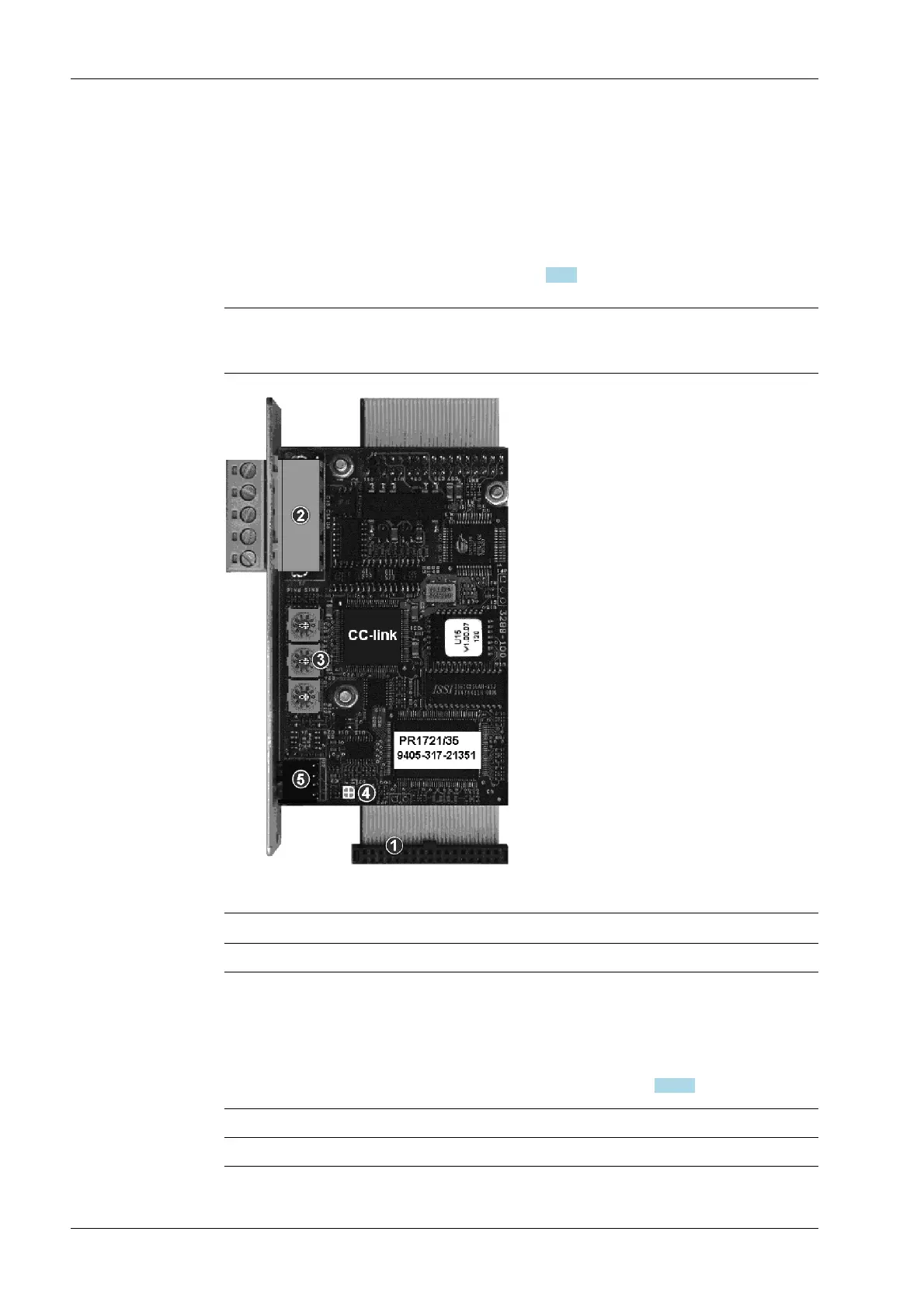

The CC-Link connection is established by the 5-pin terminal ②.
The card is inserted into "Slot 4" ① (see Chapter 4.6.1).
Note:
This eldbus card does not support the "EasyFill" application.
Technical data
Designation Data
Transfer rate 156; 625 kbps; 2.5; 5, 10 Mbps
Protocol CC-Link slave
- CRC error recognition according to IEC 62026 (EN 50325)
- Max. 64 station nodes
- 128 I/O bits and 16 (32 bit) words
- Watchdog Timer ④ (see Chapter 4.6.10)
Conguration CSP le "PR1721_1.csp"
Potential isolation Yes, optocoupler and DC/DC converter
