4.6.11 ProBus-DP interface

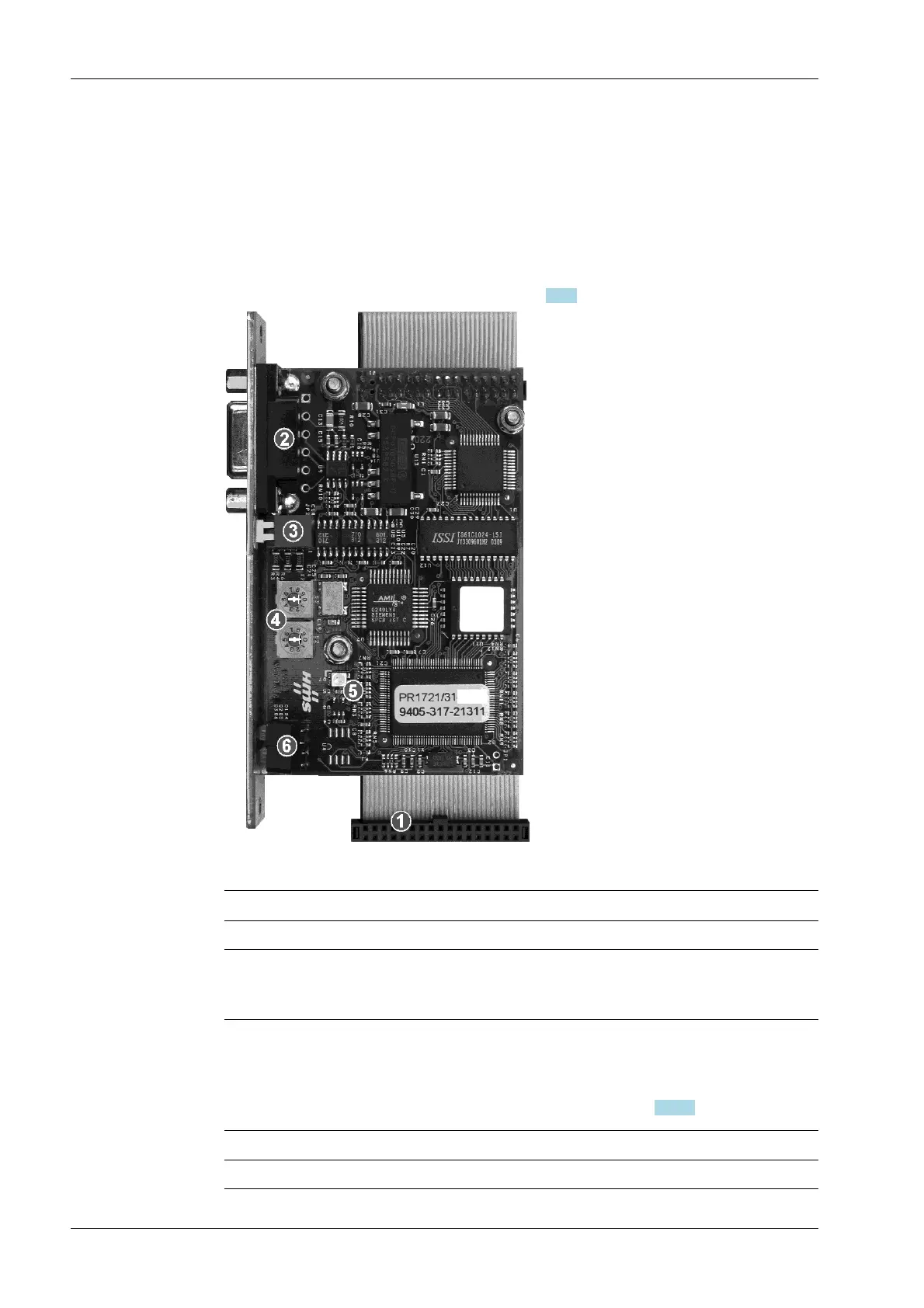

The ProBus-DP interface card has the type designation PR 1721/31.
Communication protocols and syntax comply with the ProBus-DP standard to IEC 61158,
with transfer rates up to 12 Mbit/s.
Connection to the ProBus is established using the 9-pin D-Sub female connector ② on
the back of the device.
The card is inserted into "Slot 4" ① (see Chapter 4.6.1).
Technical data
Description Data
Transfer rate 9.6 kbit/s to 12 Mbit/s, auto baud rate detection
Connection mode ProBus network,
connections can be made/released without aecting other
stations.
Protocol PROFIBUS-DP-V0 SLAVE to IEC 61158
- Mono or multi-master systems are supported.
- Master and slave devices, max. 126 nodes possible.
- Watchdog Timer ⑤ (see Chapter 4.6.10)
Conguration GSD le "SART5410.gsd"
Potential isolation Yes, optocoupler in lines A and B (RS-485)
