Minebea Intec X3 Process Indicator PR 5410 User Manual

Description Data
Bus termination
Via bus terminating resistor switch ③ (see Chapter 4.6.11.3)
Cable type ProBus "special"; color: violet; screened twisted pair cable
Cable impedance
150 Ω
Cable length The max. distance of 200 m can be extended at 1.5 Mbit/s by
means of an additional repeater.
Certicates Probus test center Comdec in Germany and PNO (Probus
User Organization).
Industry-compatible CE, UL, and cUL
Note:
The GSD le is stored on the CD supplied with the device (eldbus directory of the
respective device). The current le is also available to download online:
http://www.minebea-intec.com

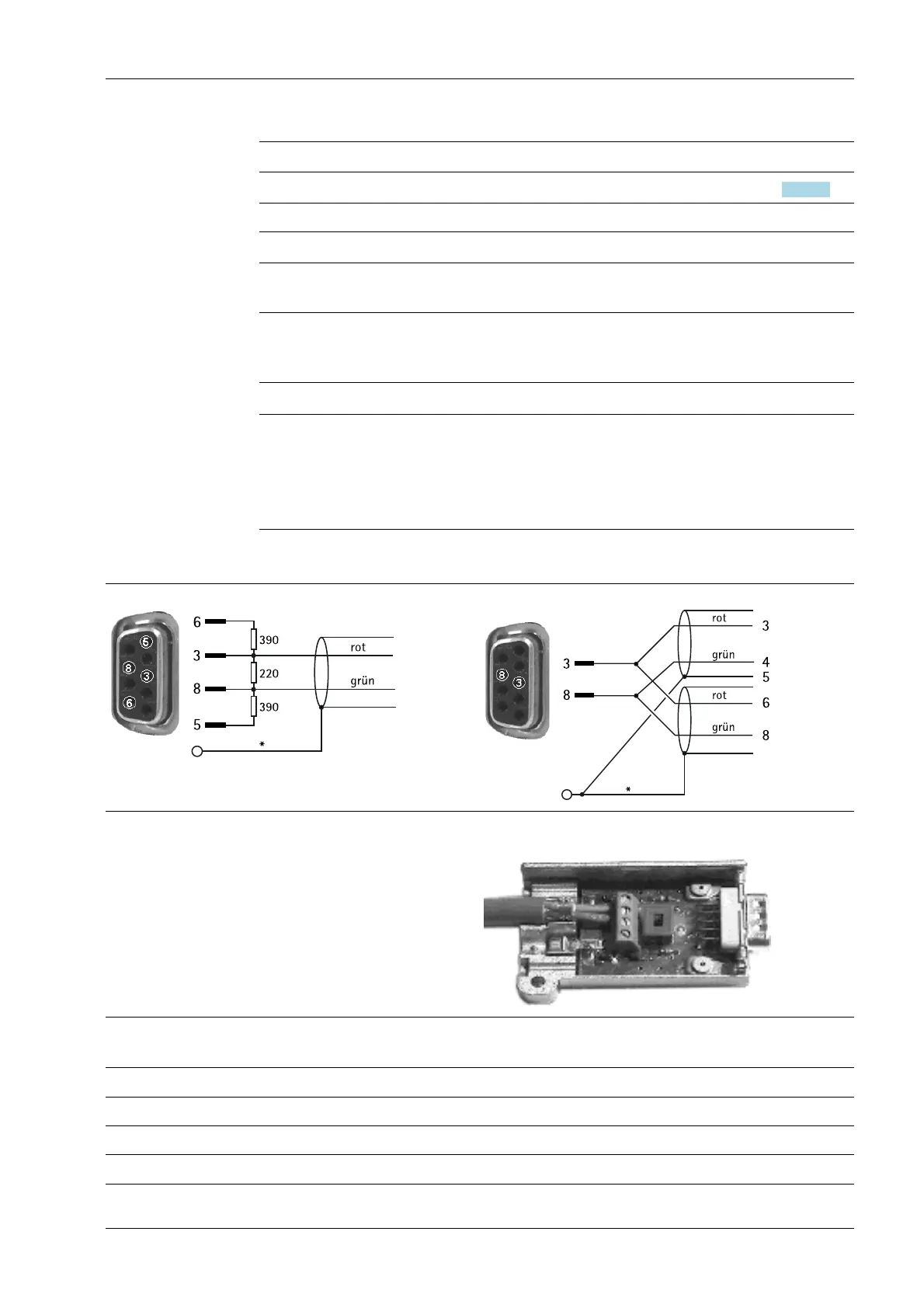

ProBus connection
The transmitter is the only/last slave in the bus:
* screen on connector housing
The transmitter is not the only/last slave in the bus:
e.g.: D-Sub bus plug SIMATIC NET PROFIBUS FAST
CONNECT
Allocation of the 9-pin D-sub female connector
Pin assignment Signal Color Description
Housing ------------- S Screen
1 Not connected
2 Not connected
4 Device installation X3 Process Indicator PR 5410
EN-95 Minebea Intec
