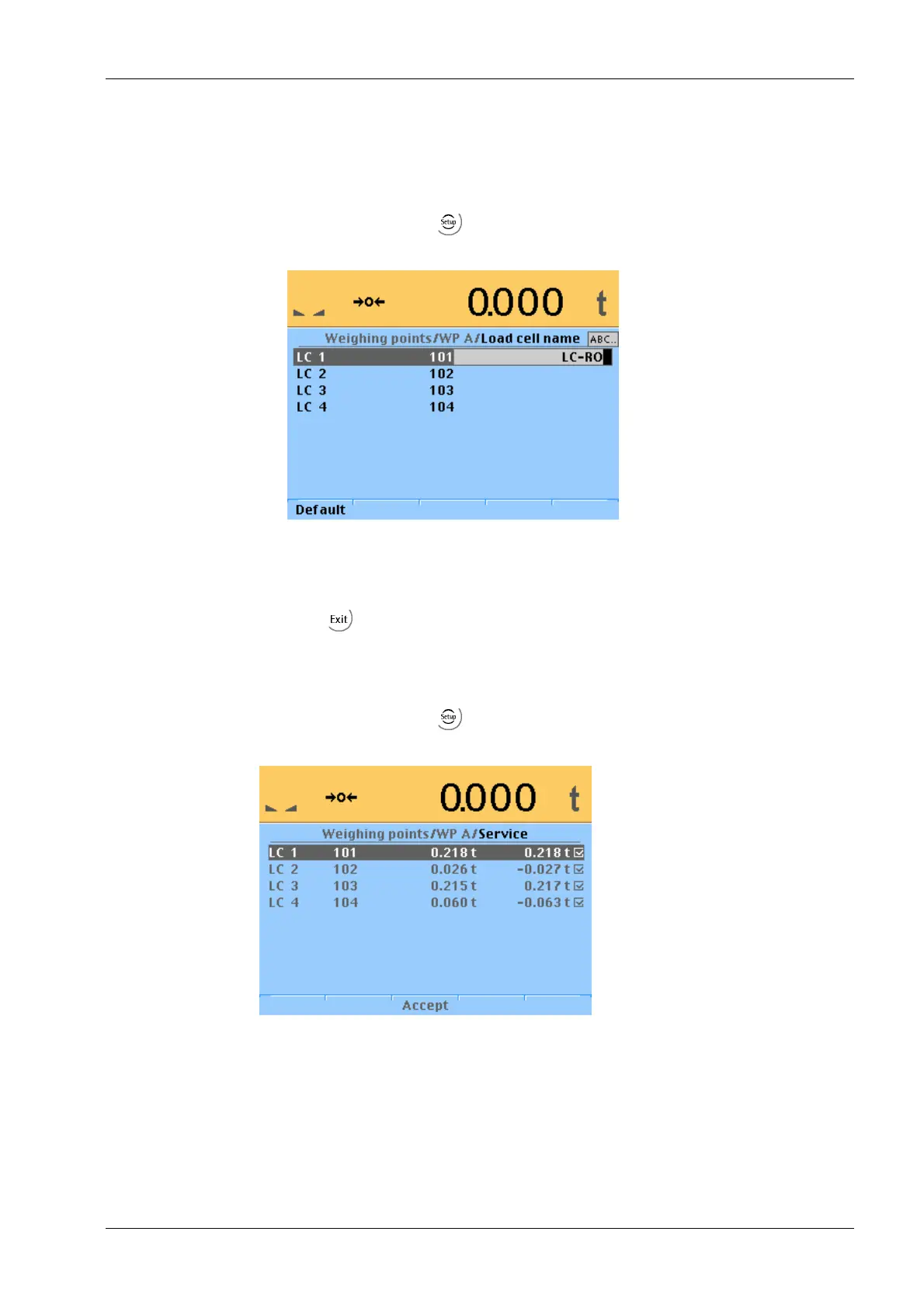

7.16.8 Assigning load cell names
In this menu the load cells can also be assigned names in addition to the load cell no. and
serial numbers.
The menu is accessible via -[Weighing point]- [Weighing point A]- [Assign]- [LC
name].
7.16.9 Service function
In this menu faulty load cells can be deactivated and replaced load cells activated.
The menu is accessible via -[Weighing point]- [Weighing point A]- [Assign]- [Service].
The service window appears.
Item number, serial number, dead load and current weigh of connected load cells are
displayed.
7.16.9.1 Deactivating the load cell
A load cell can be deactivated if it is defective. The weight is then distributed to the
remaining load cells.
1. Select the line, enter the name with the keyboard (max. 20 alphanumerical
characters) and conrm.
2. Repeat these steps for load cells 24.
3. Press to exit the menu and save.
7 Commissioning X3 Process Indicator PR 5410
EN-201 Minebea Intec
