[BCD out]
Output as BCD with max. 5 decades plus preceding sign and state
Selection: Gross, Net if tared (net weight if tared, otherwise gross weight), Selected (gross
or net weight depending on SPM bit X72), Transparent (value in D20 is output as BCD)
7.17.10 Conguring analog output
The weight value of the weighing point is transmitted to the output.

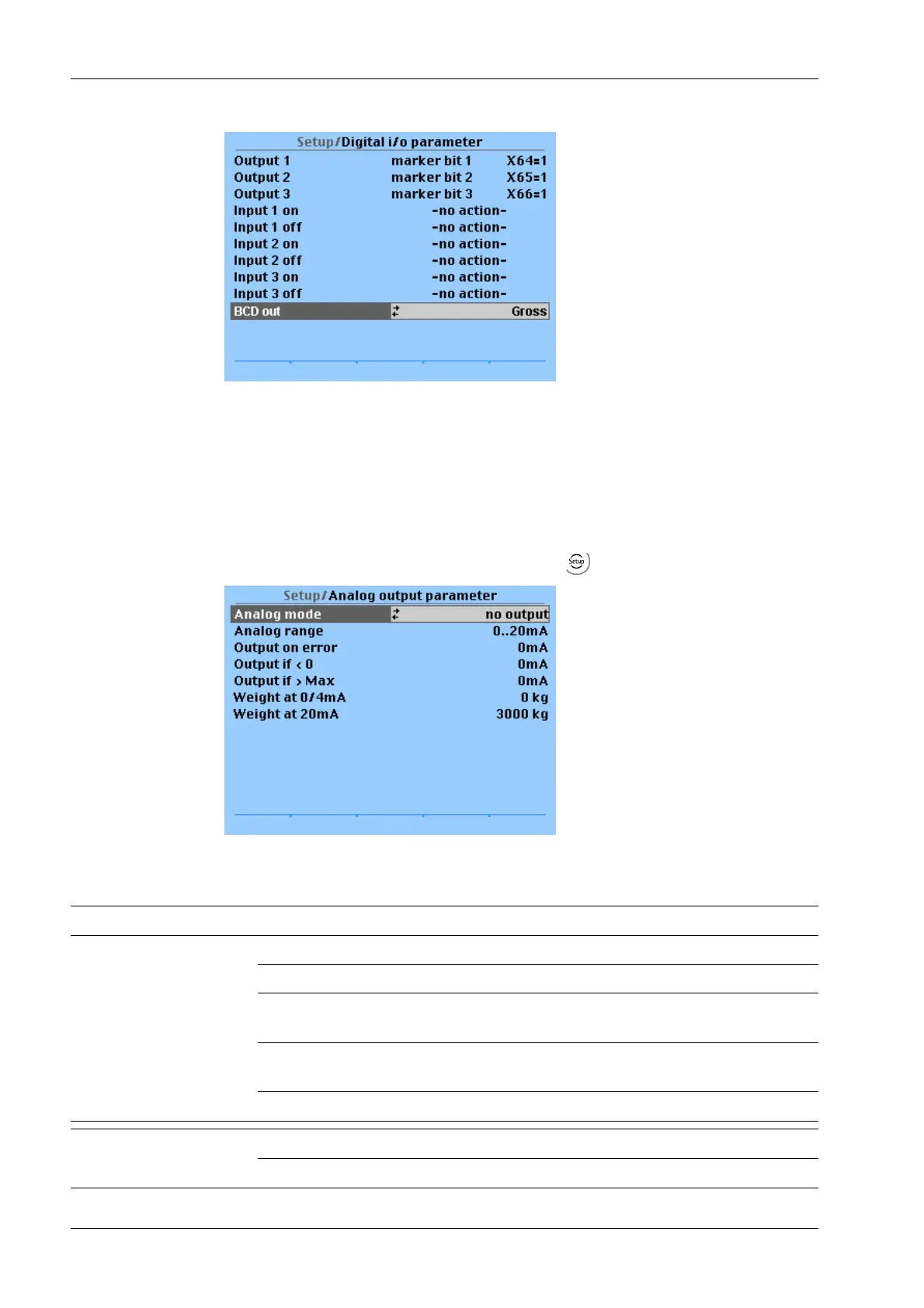

Dene the parameters for the analog output under -[Analog output parameter].
The analog output can be congured according to the table below.
Parameter table
Menu item Selection Description
[no output] Analog output is unused.
[Gross D08] Output of the gross weight.
[Net if tared D09] Output of the net weight, if tared; otherwise gross
weight
[Selected D11] Output of the gross/net value on the display, de-
pendent on SPM bit X72.
[Analog mode]
[Transparent D30] Output of the value in D30
[020 mA] Output of 020 mA.
[Analog range]
[420 mA] Output of 420 mA.
X3 Process Indicator PR 5410 7 Commissioning
