The switch settings can be found in the table in Chapter 4.6.7.
4.6.6 BCD output (open collector)
This interface card has the type designation PR 5510/09.
A PR 5510/09 card can be plugged into "Slot 1" or "Slot 2."
The plug-in card is used for BCD-coded output of a 5-decade weight value.
Cyclical output of the weight value with 4-bit (plus or minus sign, stability, error). The
value is intrinsically consistent and can be output continuously or the digital input
"DATA_IN" control can be used to freeze (hold) the value.

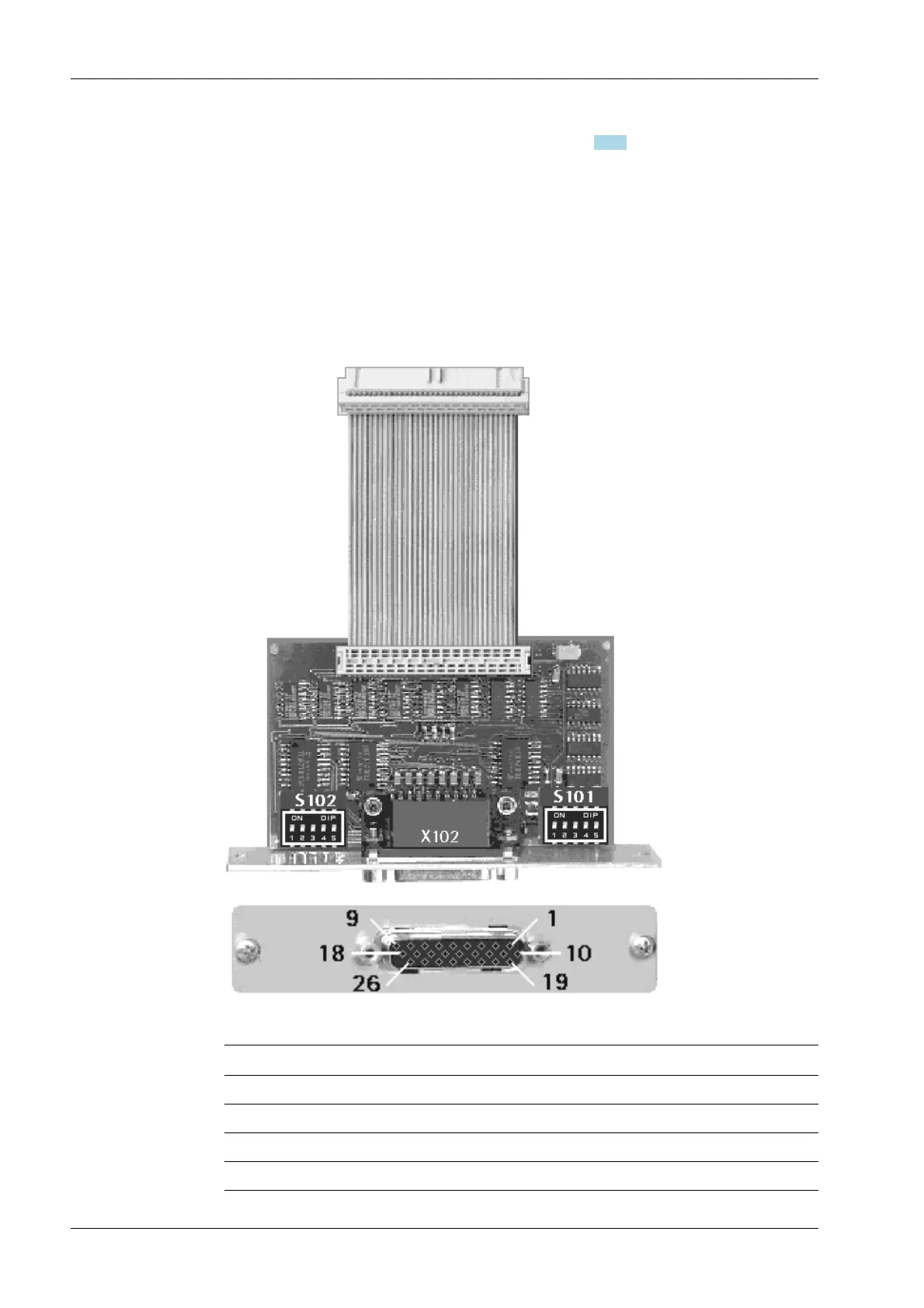

Before installing the card, set switches "S101" and "S102".
Specications
Description Data
Connection D-SUB female connector, 26-pin
Output: Qty 5 digit BCD + preceding sign
Input: Qty 1 bit "DATA_IN"
Output level Shared emitter to ground, open collector
