Minebea Intec X3 Process Indicator PR 5410 User Manual

Description Data
Cable impedance
150 Ω
Cable length
Depends on cable type and transmission rate: 100500 m
Certicates - Compatible with DeviceNet specication Vol. 1: 2.0, Vol 2:
2.0
- ODVA Certicate according to conformity test software
version A‑12
- Industry-compatible CE, UL, and cUL
Note:
The EDS le is stored on the CD supplied with the device (eldbus directory of the
respective device). The current le is also available to download online:
http://www.minebea-intec.com
DeviceNet terminal

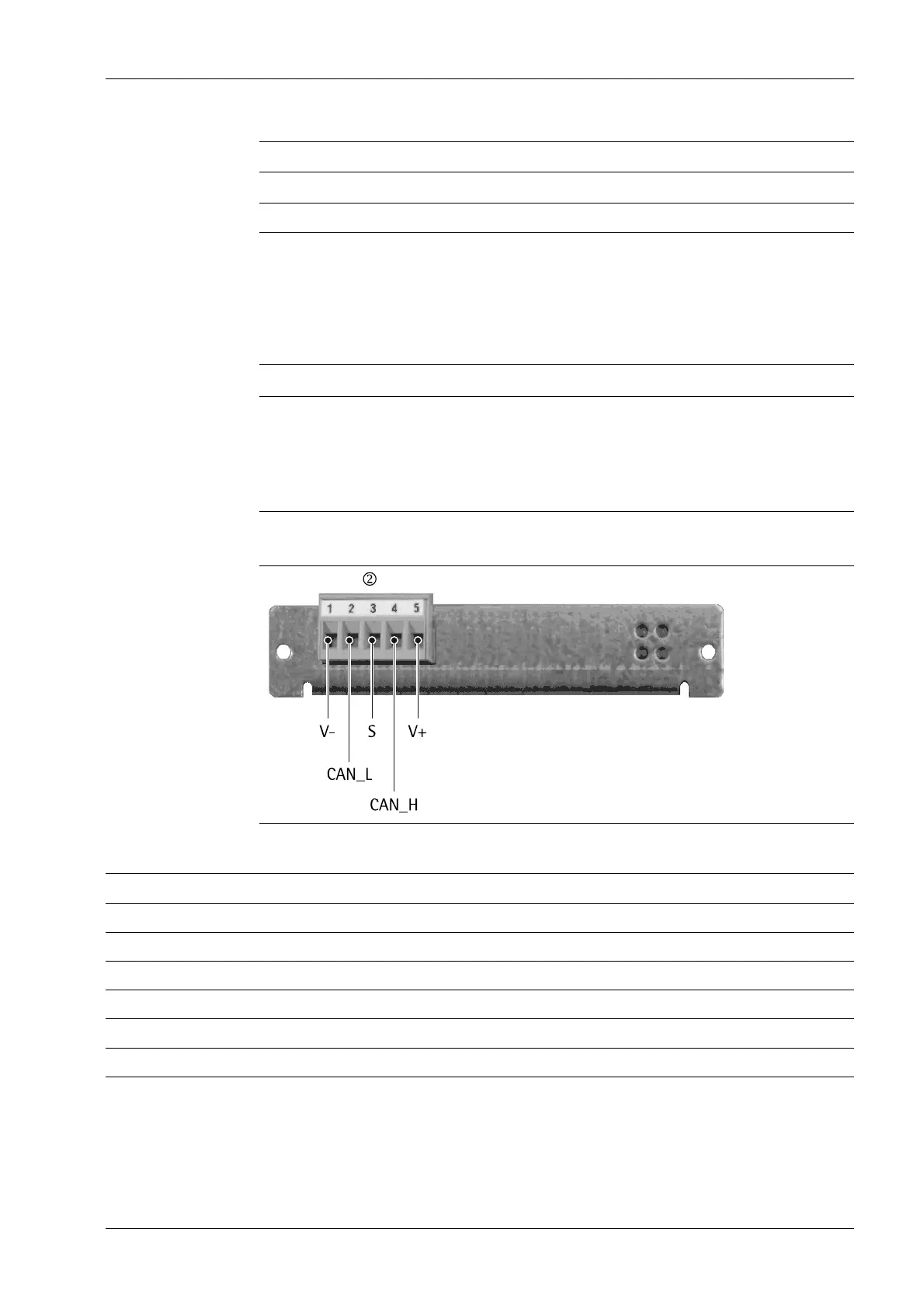

Allocation of the 5-pin terminal
Pin assignment Signal Color Description
Cable sheath Special DeviceNet cable (certied)
1 -------------------- V– black Negative power supply
2 -------------------- CAN_L blue CAN_L bus signal
3 ------------ S Cable screen
4 -------------------- CAN_H white CAN_H bus signal
5 -------------------- V+ red Positive power supply
4 Device installation X3 Process Indicator PR 5410
EN-105 Minebea Intec
