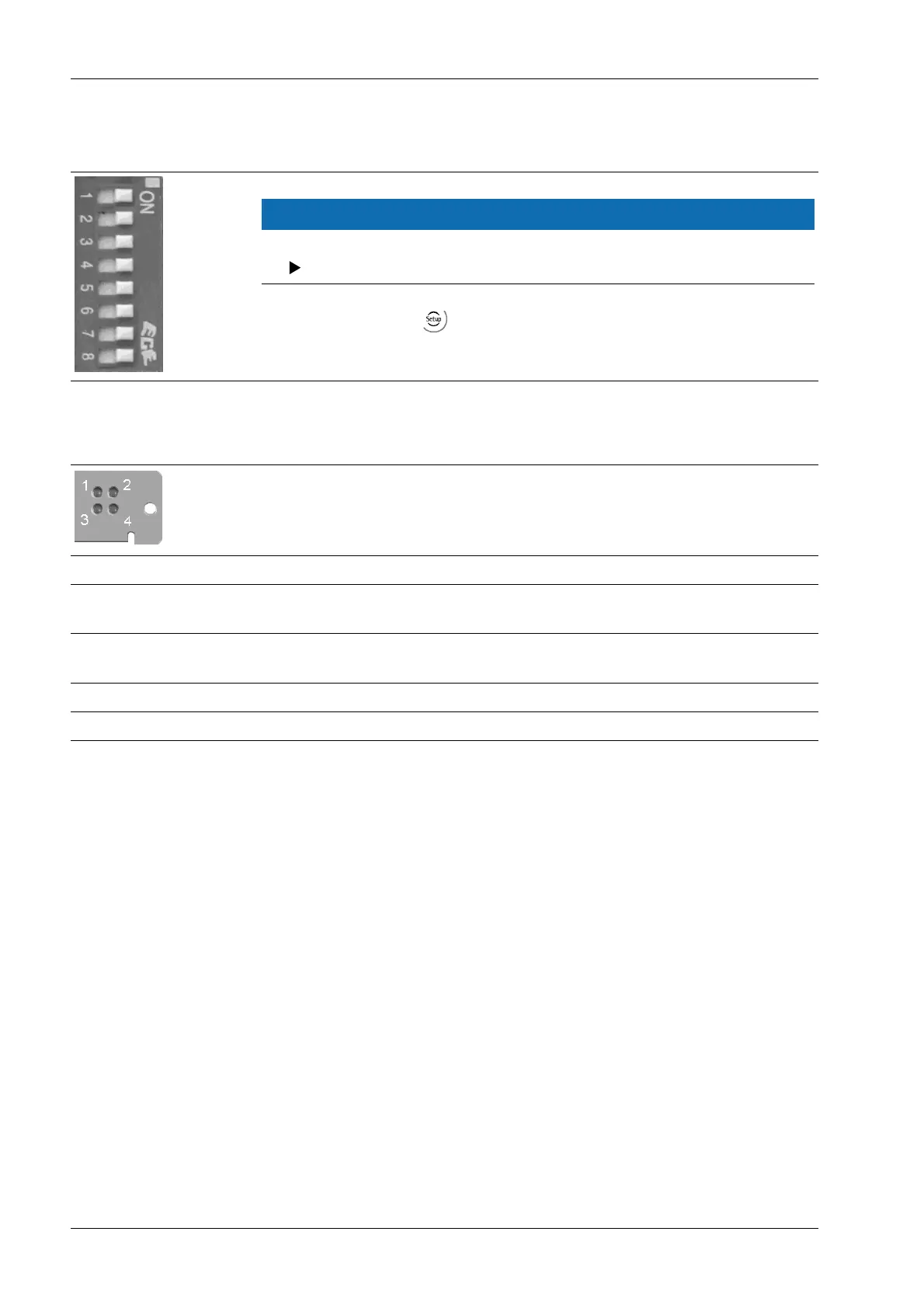

4.6.13.1 Controls on eldbus card
③
NOTICE
The ③③ DIL switch settings will not be used.
Make sure that the switches 18 are set to position "ON."
Settings are dened via - [Fieldbus parameter].
4.6.13.2 LEDs in the module cover
The module cover can be found at the rear of the device.
⑤⑤
LED 1
No function
LED 2
Network status
LED 3
No function
LED 4
Module status
O No power
Constant green Link detected; online
and connected
Module is working
Flashing green Online, not connec-
ted
Data length > con-
guration
Constant red Critical link error Fatal error
Flashing red Connection timeout Minor error
X3 Process Indicator PR 5410 4 Device installation
Minebea Intec EN-106
