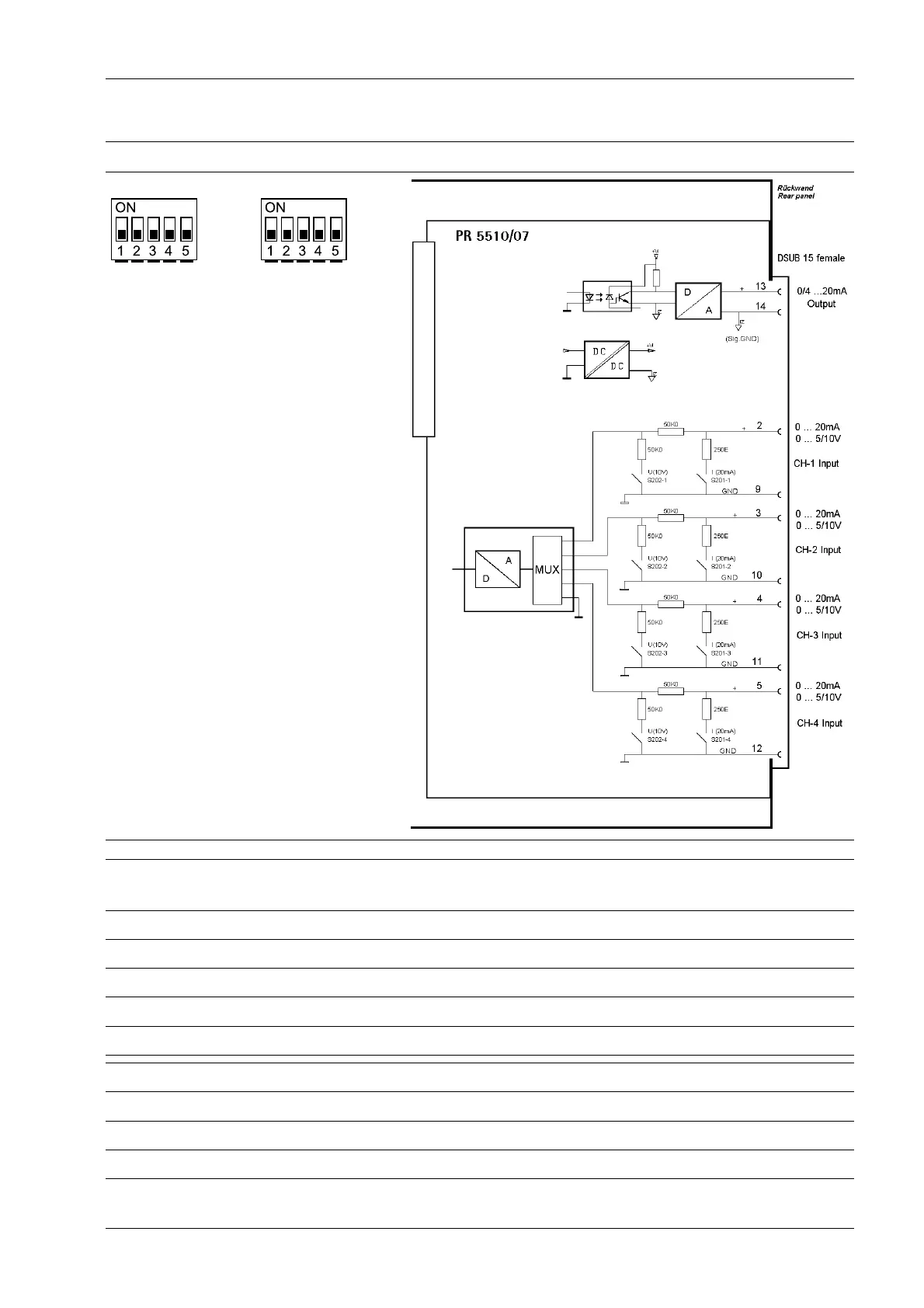

Switch for analog inputs PR 5510/07 block diagram
Factory setting:
S201
Factory setting:
S202
S Channel Current
0+20 mA DC
Voltage
0+10 V DC
Voltage
0+5 V DC
S201-1 CH1 ON OFF OFF
S201-2 CH2 ON OFF OFF
S201-3 CH3 ON OFF OFF
S201-4 CH4 ON OFF OFF
S201-5 … … … …
S202-1 CH1 OFF ON OFF
S202-2 CH2 OFF ON OFF
S202-3 CH3 OFF ON OFF
S202-4 CH4 OFF ON OFF
