When the CAL switch is in "opened" position, the calibration data and parameters can be
changed using the PC program or via the ProBus connection.
With the CAL switch in the "closed" position, the calibration data (e.g. dead load, span)
and parameters (measuring time, zero tracking etc.) cannot be changed.
With legal-for-trade applications, the CAL switch must be sealed in the closed position.
Note:
If the weighing electronics board has been changed after calibration or the device is not
calibrated the weight value display will show "Error 15" if the CAL switch is closed.

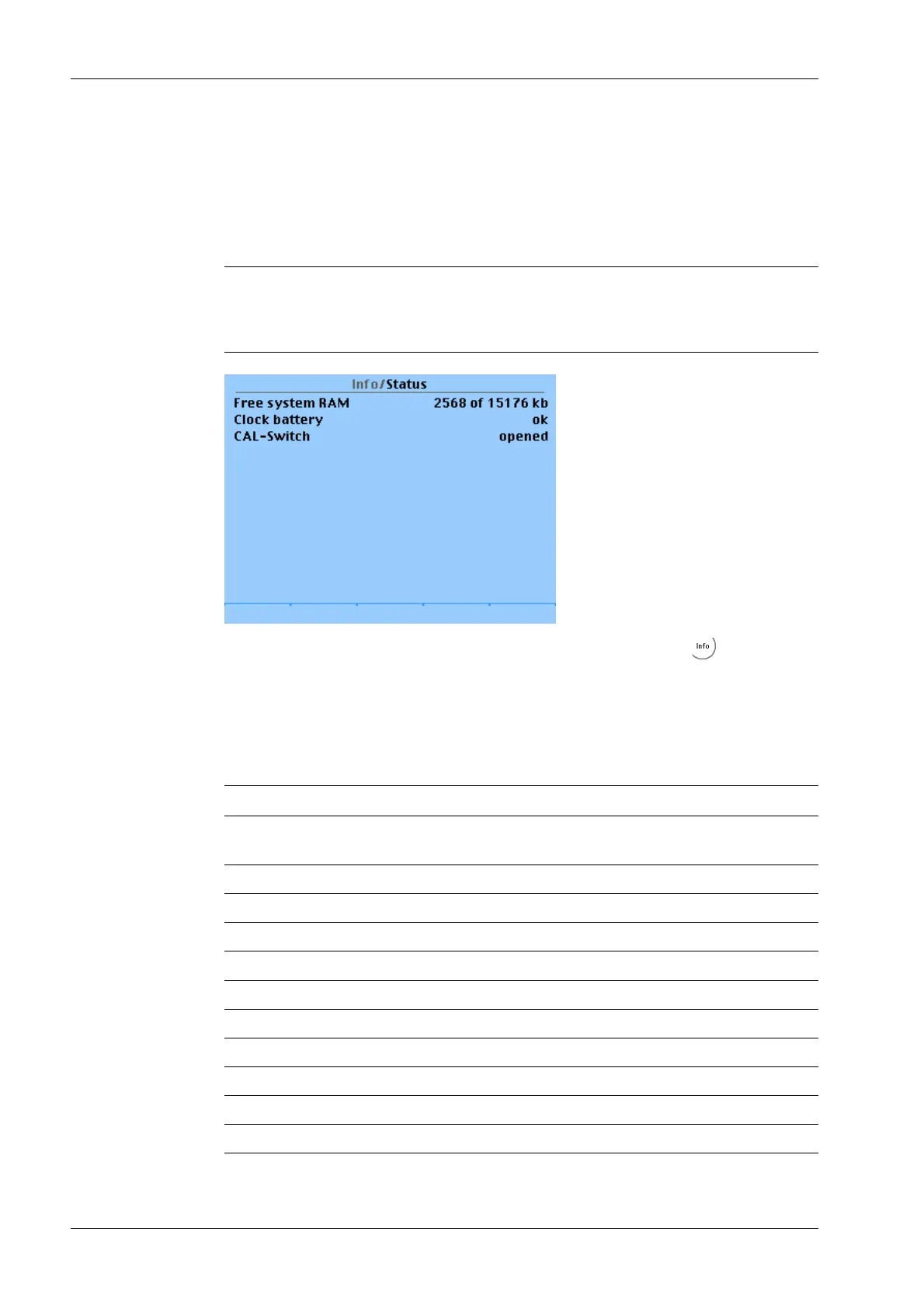

The position of the CAL switch is shown with VNC/WEB browser under – [Show
status]:
[opened] = opened, no write protection.
[closed] = closed, write protection is active.
7.1.3.2 Factory settings (defaults)
Calibration data <default> Calibration parameter <default>
Upper scale limit (Max) <3000>
<Kg>
Measurement time <160> ms
Scale interval <1> Digital lter <o>
Dead load <0.000000> mV/V Test mode <Absolute>
Span <1.000000> mV/V W&M* <none>
Standstill time <0.5> s
Standstill range <1.00> d
Zero-setting range <50.00> d
Automatic zero tracking range <0.25> d
Scale interval for automatic zero tracking <0.25> d
Overload (range > Max) <9>d
Min <20> d
