Note:
The individual parameters depend on the eldbus type.

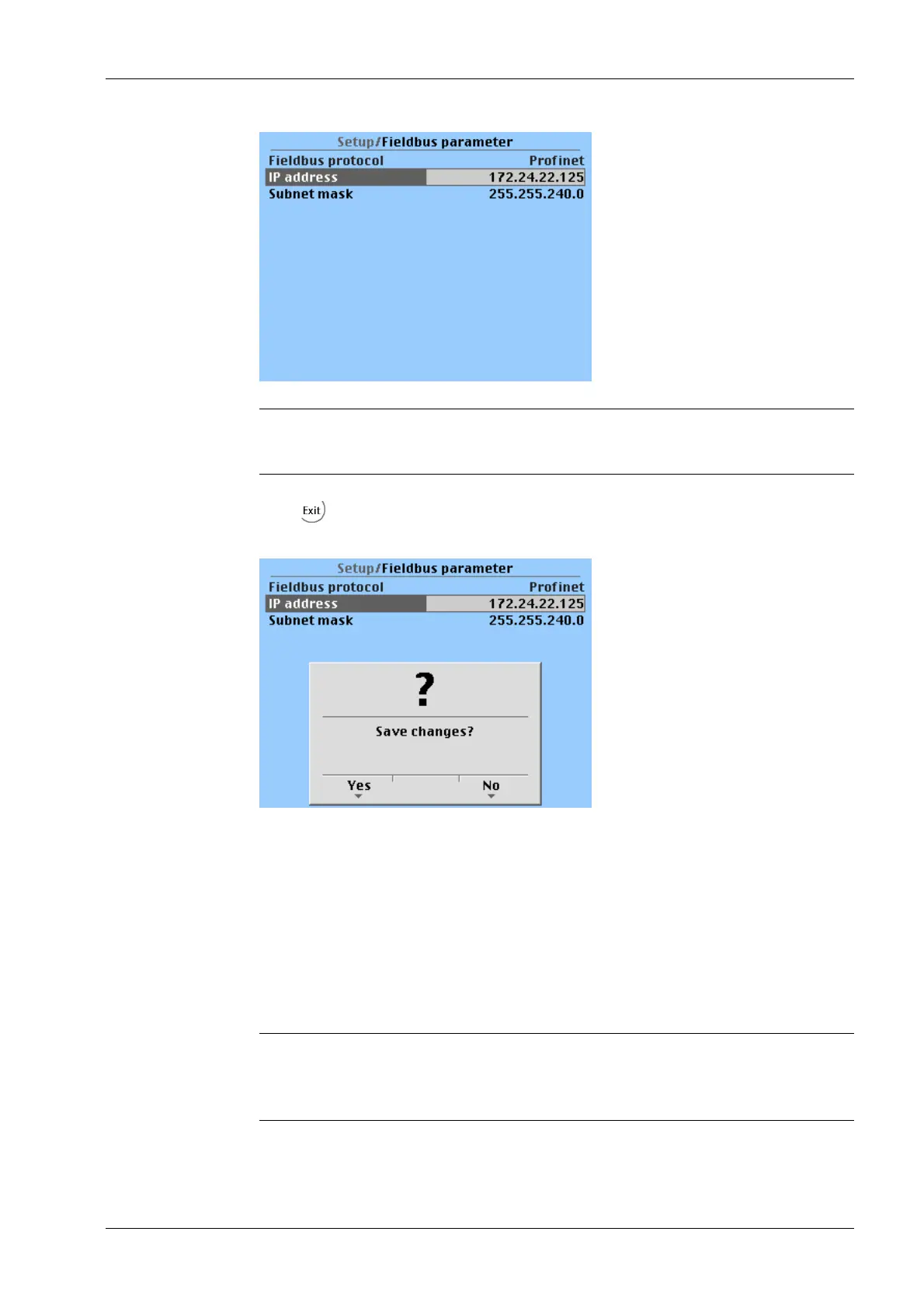

Press to return to the Setup menu.
The following prompt window appears:
Save the data with [Yes].
Press [No] to exit the menu without changing data.
7.17.5.1 ProBus-DP settings for S7
Requirements:
- PR 1721/31 ProBus-DP is installed.
- The parameters are selected and saved.
Procedure:
Note:
Further details can be found in the supplementary application manual "How to"
(available upon request from technical.support.hh@minebea-intec.com).
1. Establish communication with the PLC (here: SIEMENS S7-300/400 or S7-1500).
2. Create/open a project in the "SIMATIC MANAGER."
7 Commissioning X3 Process Indicator PR 5410
EN-221 Minebea Intec
