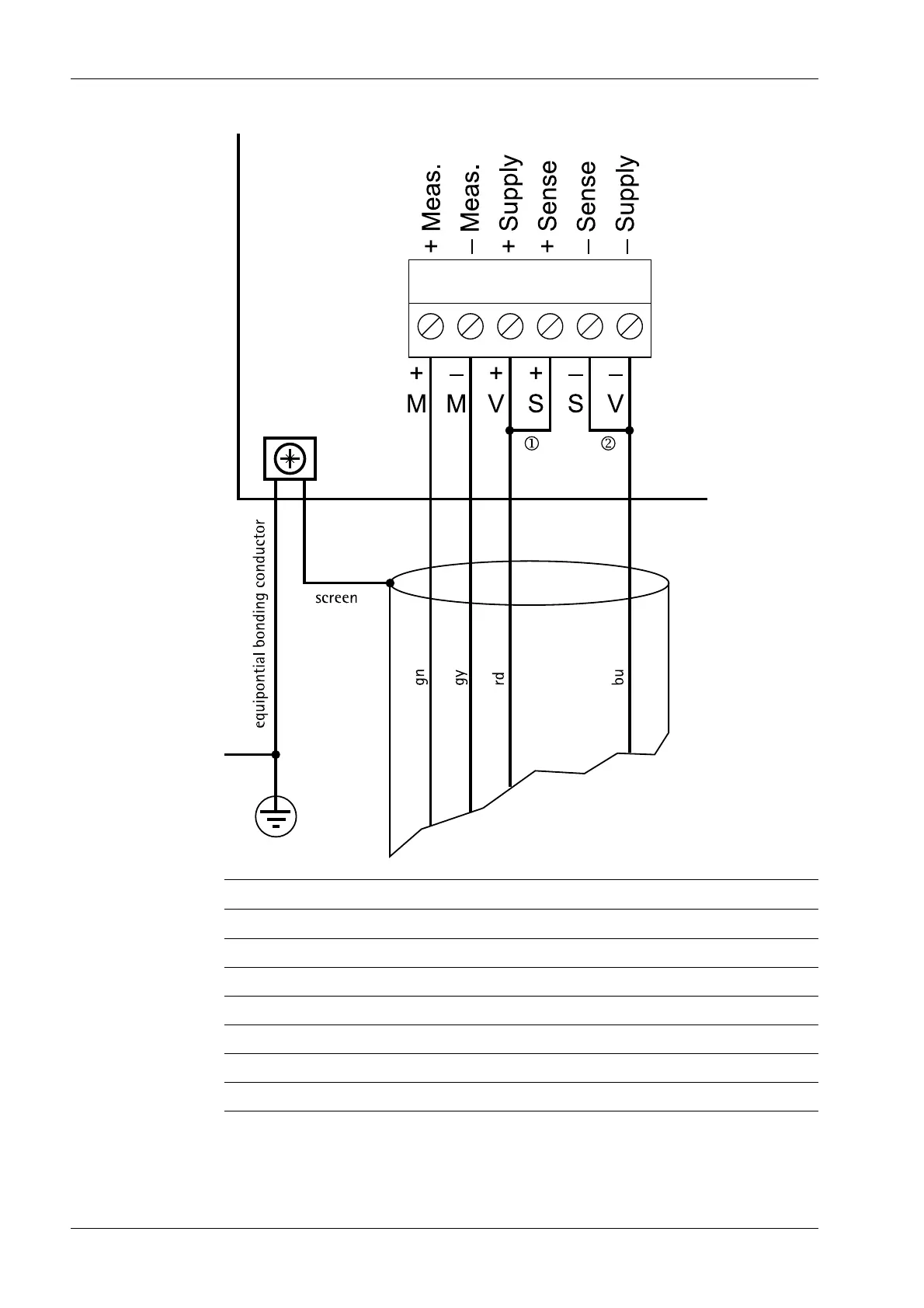

Terminal Connection/color code Description
M+ + Meas./gn + Measuring voltage (load cell output)
M- - Meas./gy - Measuring voltage (load cell output)
S+ + Sense + Sense voltage
S- - Sense - Sense voltage
V+ + Supply/rd + Supply voltage
V- - Supply/bu - Supply voltage
Housing Ground (GND) Screen (ground)
