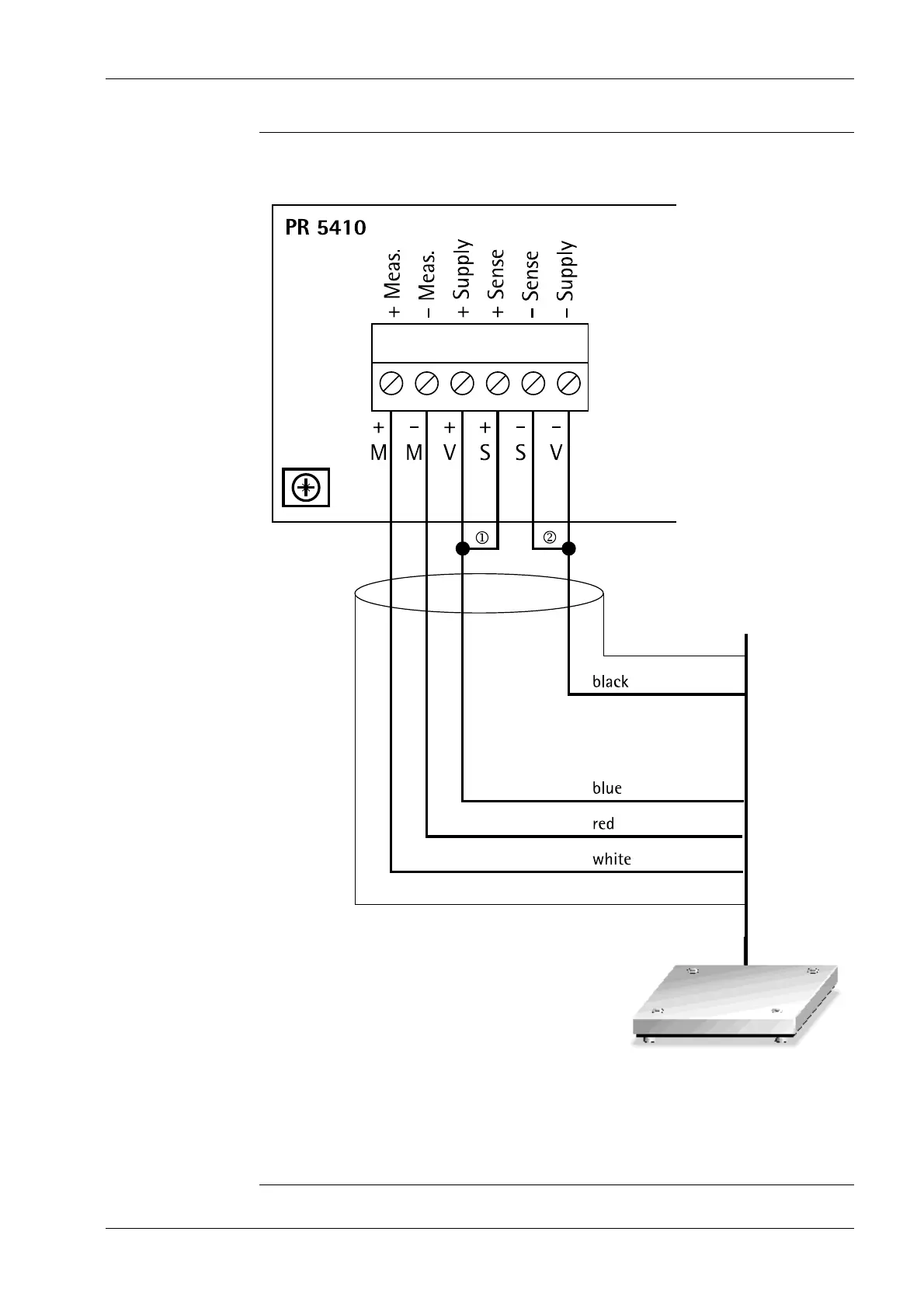

Example:
Platform with 4-wire connection
The following links between the terminal contacts are provided:
① from Sense S+ to Supply V+
② from Sense S- to Supply V-
4 Device installation X3 Process Indicator PR 5410
EN-53 Minebea Intec
