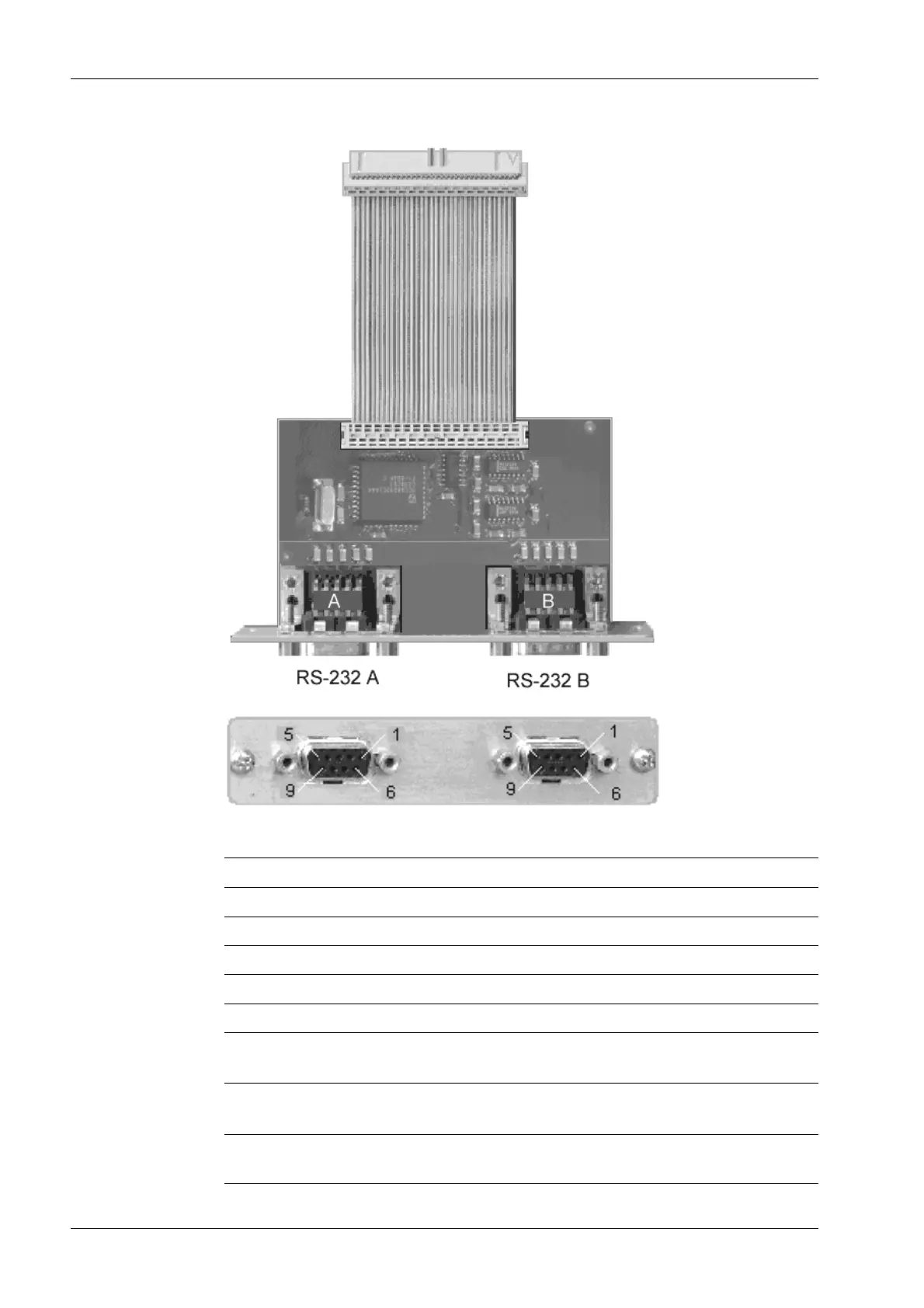

Specications
Description Data
Connection 2× D-Sub female connector, 9-pin
Number of channels 2 (RS-232 A and RS-232 B)
Type RS-232, full duplex
Transmission rate [Bit/s]
30019K2 Bit/sec
Data bits 7/8
Input signal level
Logic 1 (high) -3-15 V
Logic 0 (low) +3+15 V
Output signal level
Logic 1 (high) -5-15 V
Logic 0 (low) +5+15 V
Number of signals Input: RxD, CTS
Output: TxD, RTS
