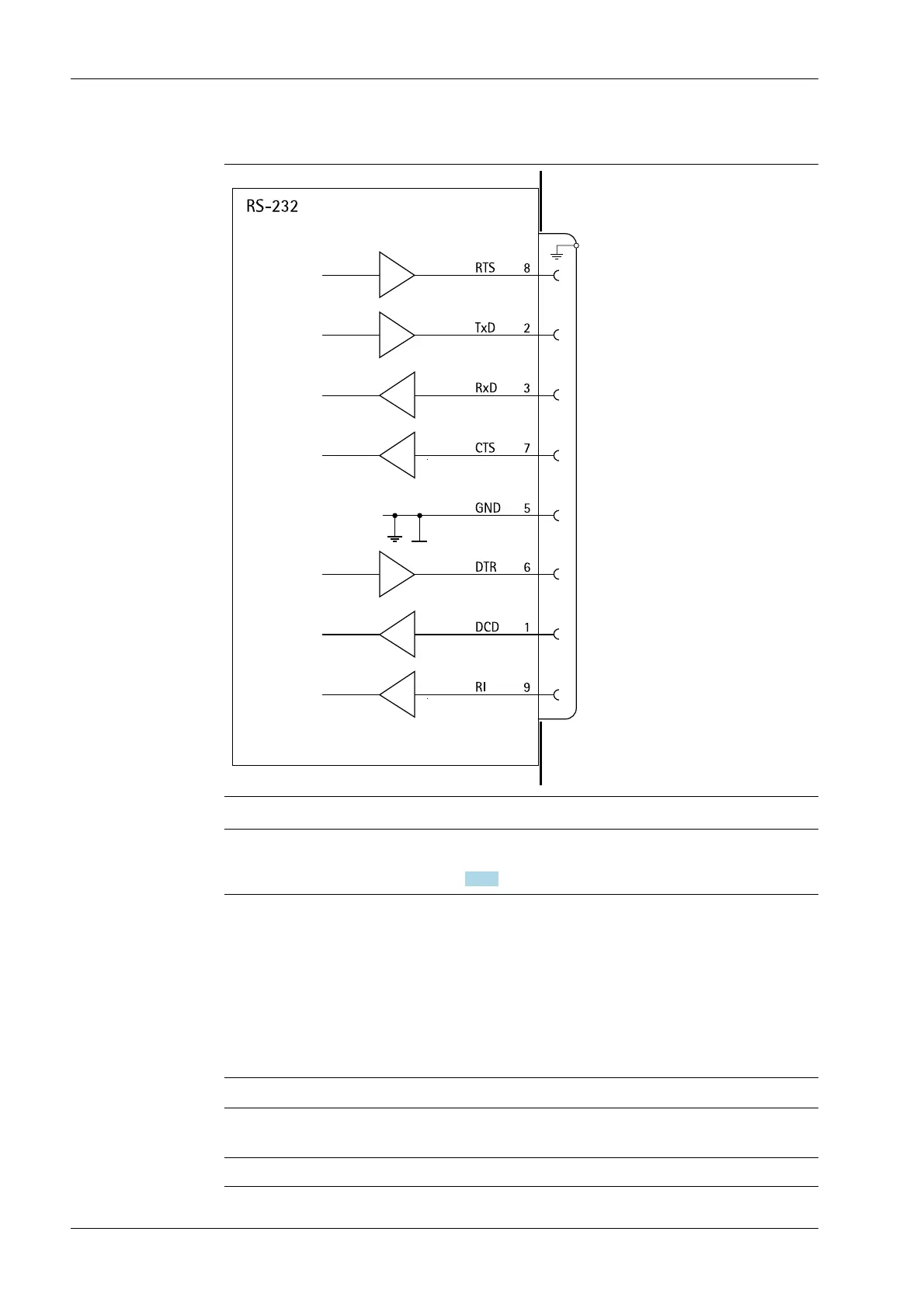

Block diagram RS-232
Note:
For more information, see Chapter 4.4.4.
4.6.3.2 RS-485 channel
The RS-485/422 interface must be congured using switch "S101" after being installed on
the card.
The RS-485 interface can also be used as a point-to-point connection.
Using RS-485 is compulsory with a multi-point connection (Tristate status).
Specications
Description Data
Type RS-422/485, full duplex (4-wire)
RS-485, half duplex (2-wire)
Bits/stopbit <8/1> or 7/1
