8 Operation
Maschinenfabrik Reinhausen GmbH 2020 1693587317/21 EN TAPCON
®
Parameter Option
UI measuring channels 3-ph. voltage, 1-ph. current
Measurement mode Phase-phase
Table56: Circuit 3-E
Circuit 3-F
L1
L2
L3
N
UI
VTVT
VT
CT
L1 L2 L3 N k1 l1 k2 l2 k3 l3

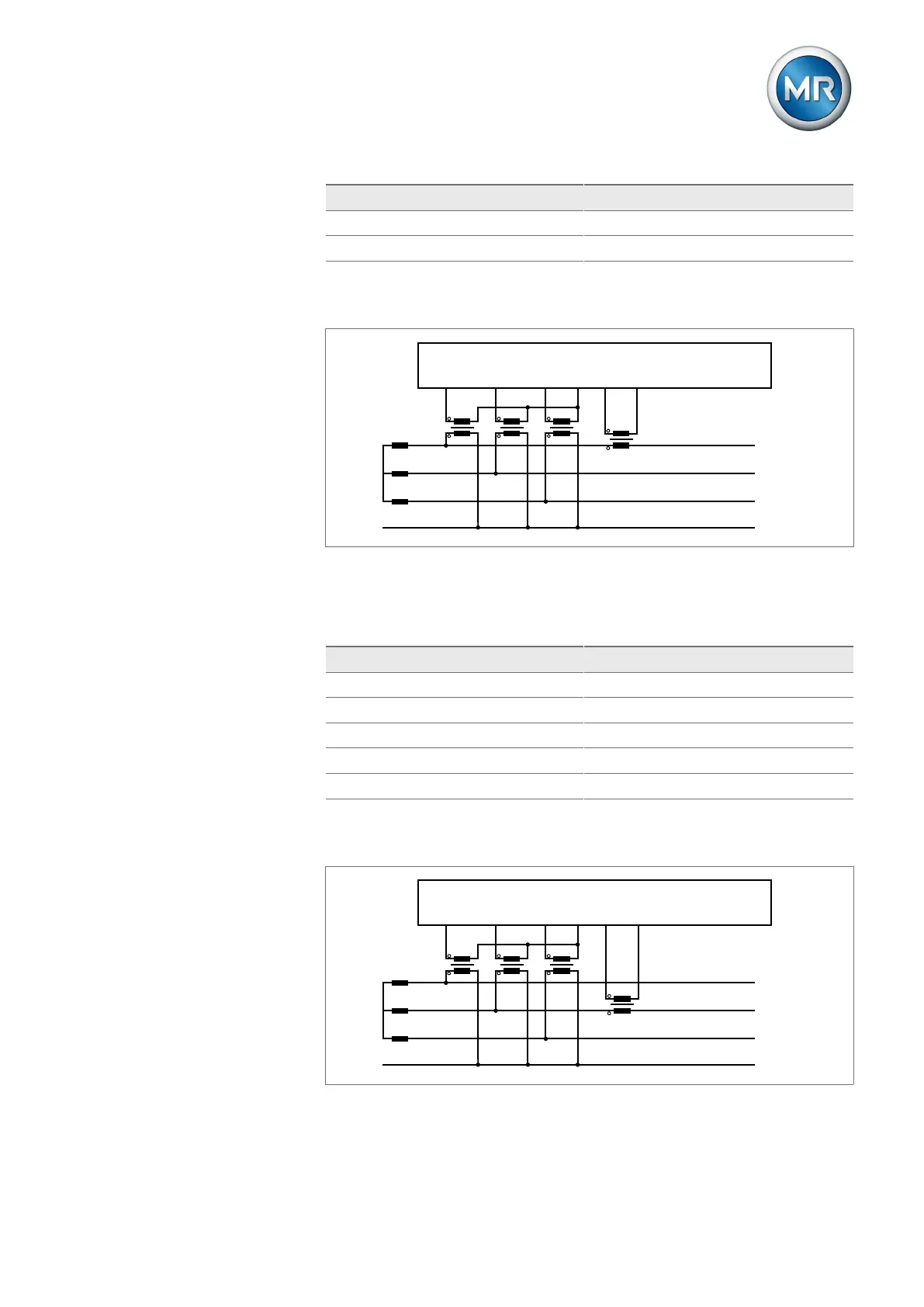

▪ Three-phase voltage measurement, single-phase current measurement.
▪ The voltage transformers are connected between the phase and neutral
conductor.
▪ The current transformer is connected to phase L1.
Parameter Option
Voltage-transformer circuit 3 Ph phase voltage
Current-transformer circuit 3 Ph phase current
Phase angle correction 0°
UI measuring channels 3-ph. voltage, 1-ph. current
Measurement mode Phase-neutral
Table57: Circuit 3-F
Circuit 3-G
L1
L2
L3
N
UI
VTVT
VT
CT
L1 L2 L3 N k1 l1 k2 l2 k3 l3
