SENSOR TXIL / DS1

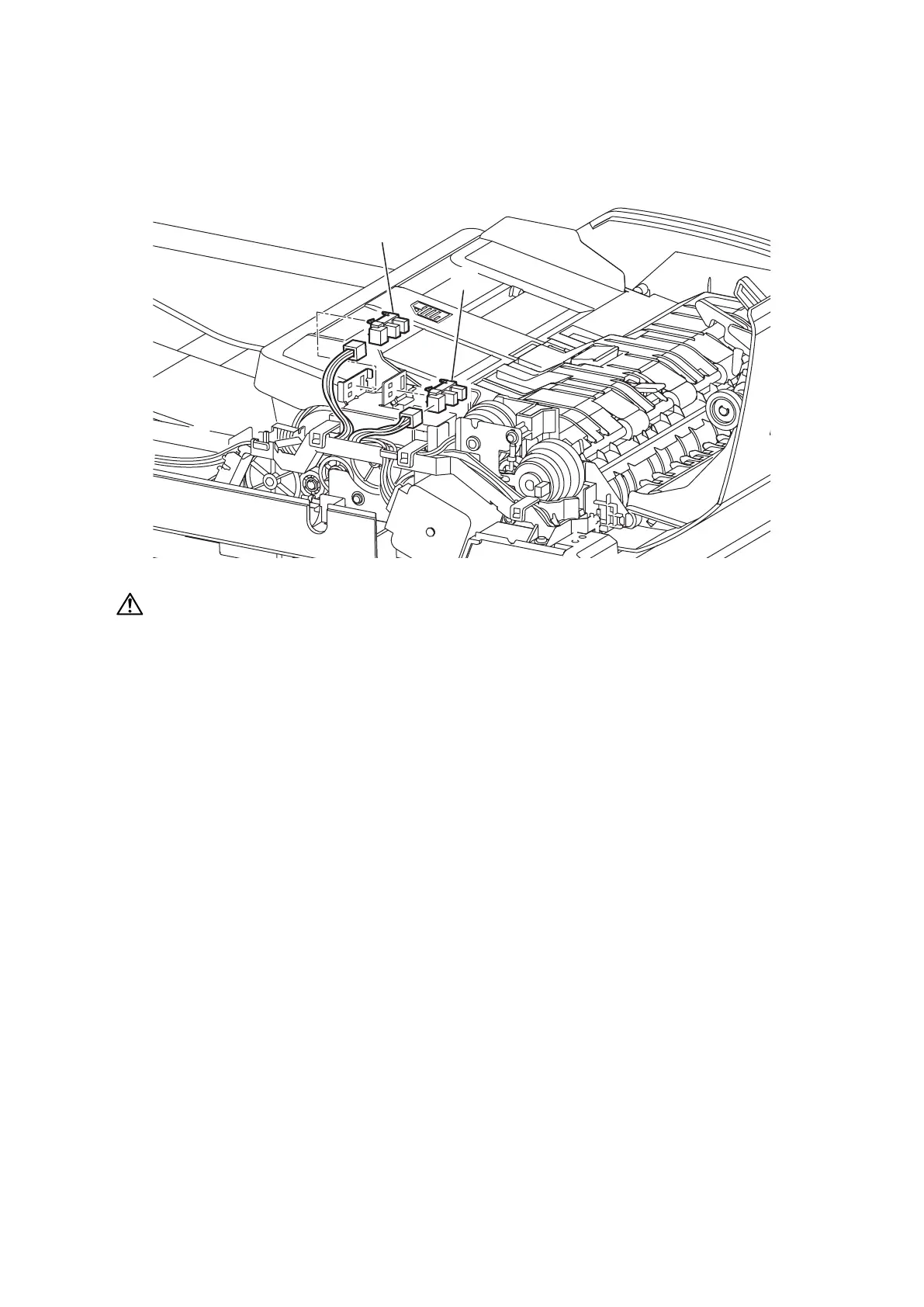

1. Remove the Cover Tx side B. (See “COVER TX SIDE B” on page 5-5.)
2. Disconnect each connector for the SENSOR TxIL [1] and the Sensor DS1 [2].
3. Remove the SENSOR TxIL [1] and the Sensor DS1 [2].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
Remove the long side first.
>
@
>
@
5
%
CAUTION
When assembling, please be careful to plug in the connectors correctly.
Sensor TxIL··· Harness color: Red (marked R)
Sensor DS1··· Harness color: Blue (marked B)
