5-53

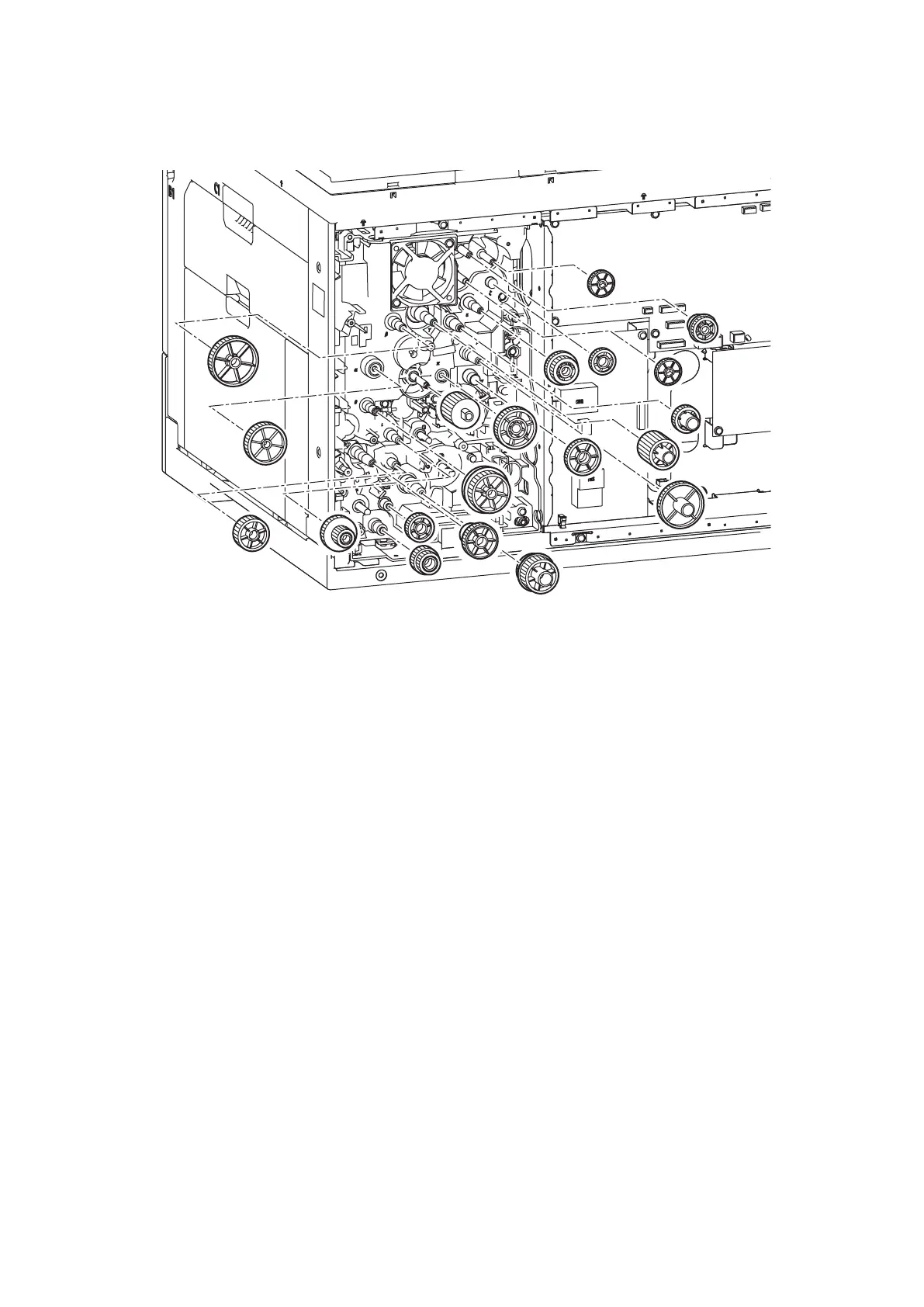

GEARS

1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)

2. Remove the Clutch. (See “CLUTCH” on page 5-51.)

3. Remove the Frame drive A. (See “FRAME DRIVE A” on page 5-52.)
