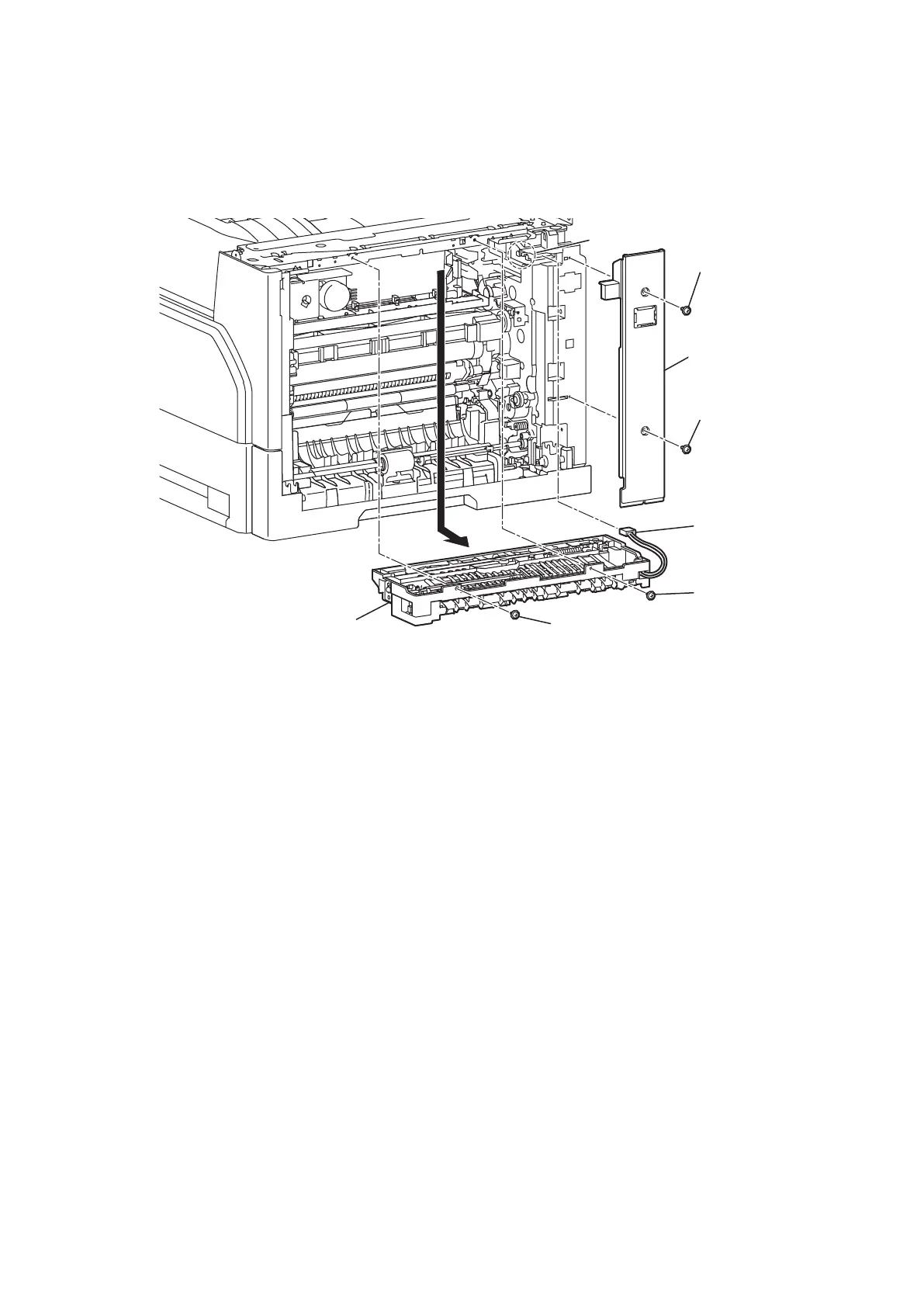

EXIT ASSY
1. Remove the Printer fuser. (See “PRINTER FUSER” on page 5-58.)
2. Remove two screws [1] and remove the Cover right [2].
3. Disconnect one connector [3] and remove the harness from the hook [4].
4. Remove two screws [5].
5. Remove the EXIT ASSY [6].
[
6
]
[
1
]
[
4
]
[
1
]
[
2
]
[
3
]
[
5
]
[
5
]
