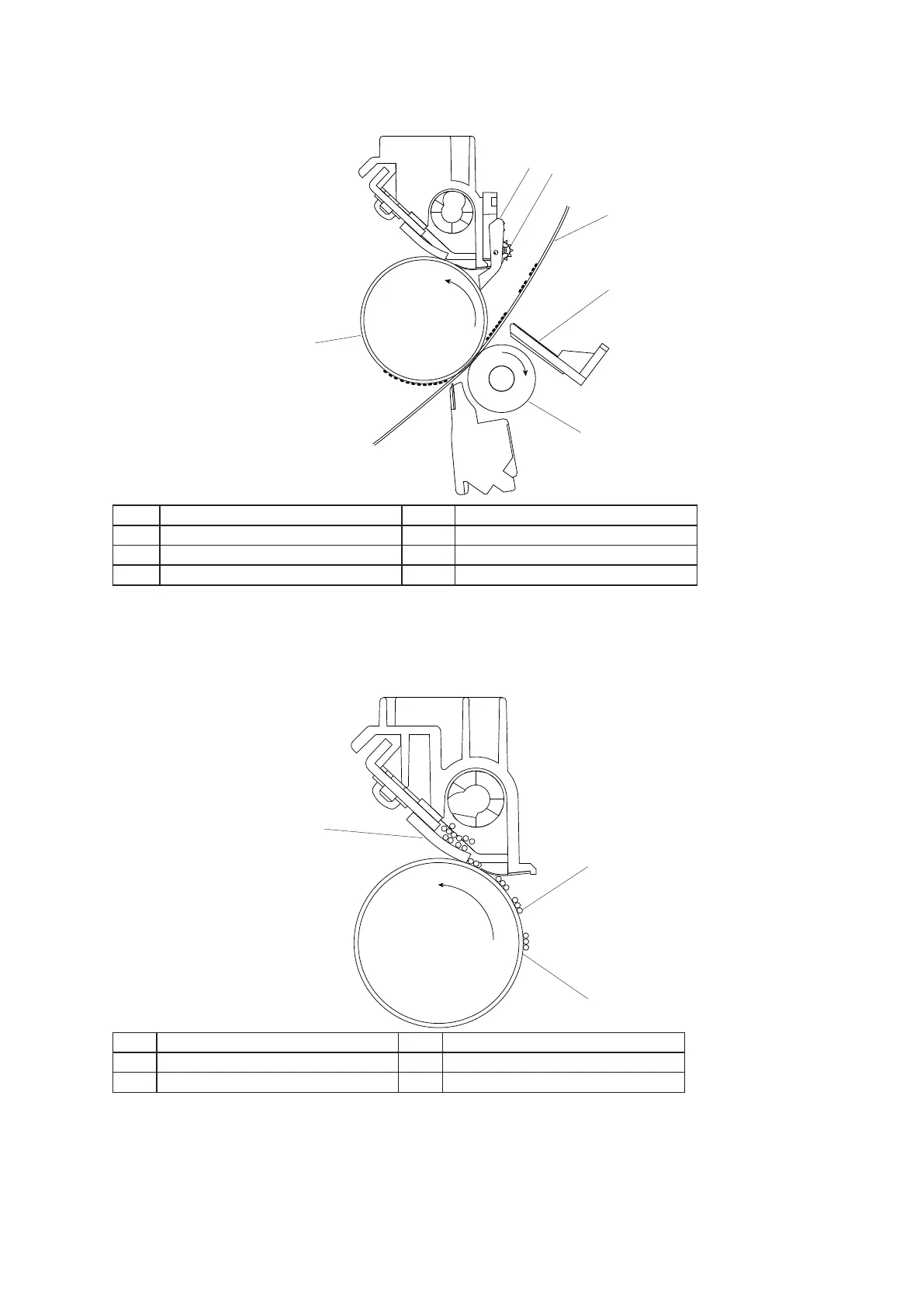

2.3.7 Separation mechanism
The electrostatic force on the paper is removed by a separator stylus, and the paper separates from the
drum. The drum separation scraper also helps the paper separate from the drum.
1
2
4
6
5
3
No. Part name No. Part name
1 Separation scraper 2 Star roller
3 Paper 4 Separation stylus
5 Transfer roller 6 OPC drum
2.3.8 Cleaning mechanism
The residual toner and paper dust on the drum is scraped off by a cleaning blade that is pressed against the
drum surface.
1
2
3
No. Part name No. Part name
1 Cleaning blade 2 Residual toner / Paper dust
3 OPC drum
