5.3.7 ADF skew adjustment

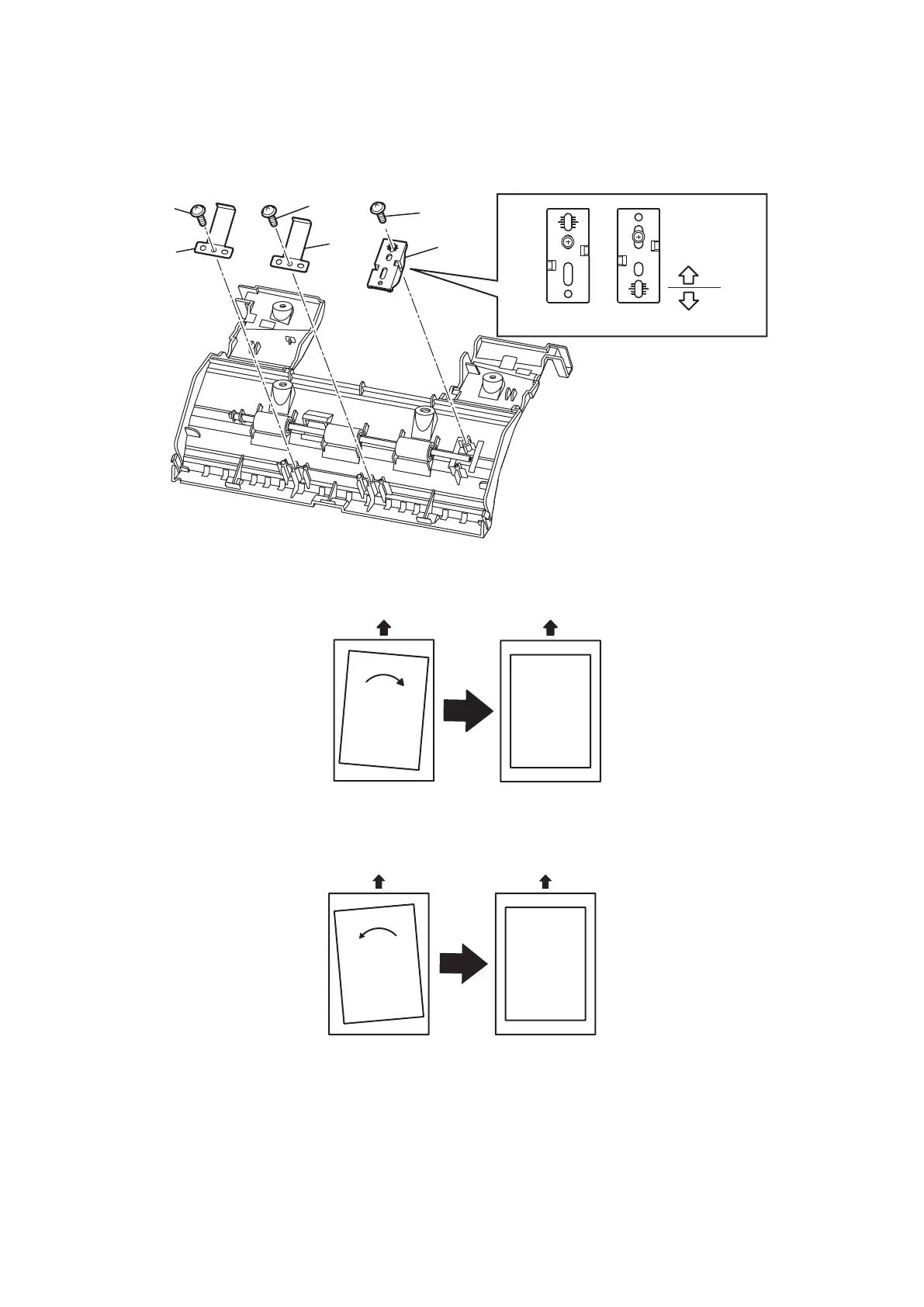

1. Remove the Cover Tx. (See “COVER TX” on page 5-17.)
2. Remove the Guide outer A. (See “ASSY ROLLER SEPARATOR” on page 5-18.)
3. Remove two screws [1] and remove two Springs P regist [2].
4. Remove one screw [3] then remove the Holder regist shaft [4].
5. Rotate the Holder regist shaft [4] 180 degrees and reinstall it.
>
@
>
@
>
@
>
@
>
@
VFUHZSRVLWLRQ
EHIRUHVKLSSLQJ
VFUHZSRVLWLRQ
GXULQJDGMXVWLQJ
GLUHFWLRQ%
GLUHFWLRQ$
UHIHUHQFH
SRVLWLRQ
6. If the adjustment is made in direction A: the copied image will be rotated counterclockwise in relation to
the recording paper.
7. If the adjustment is made in direction B: the copied image will be rotated clockwise in relation to the re-
cording paper.
