5-52

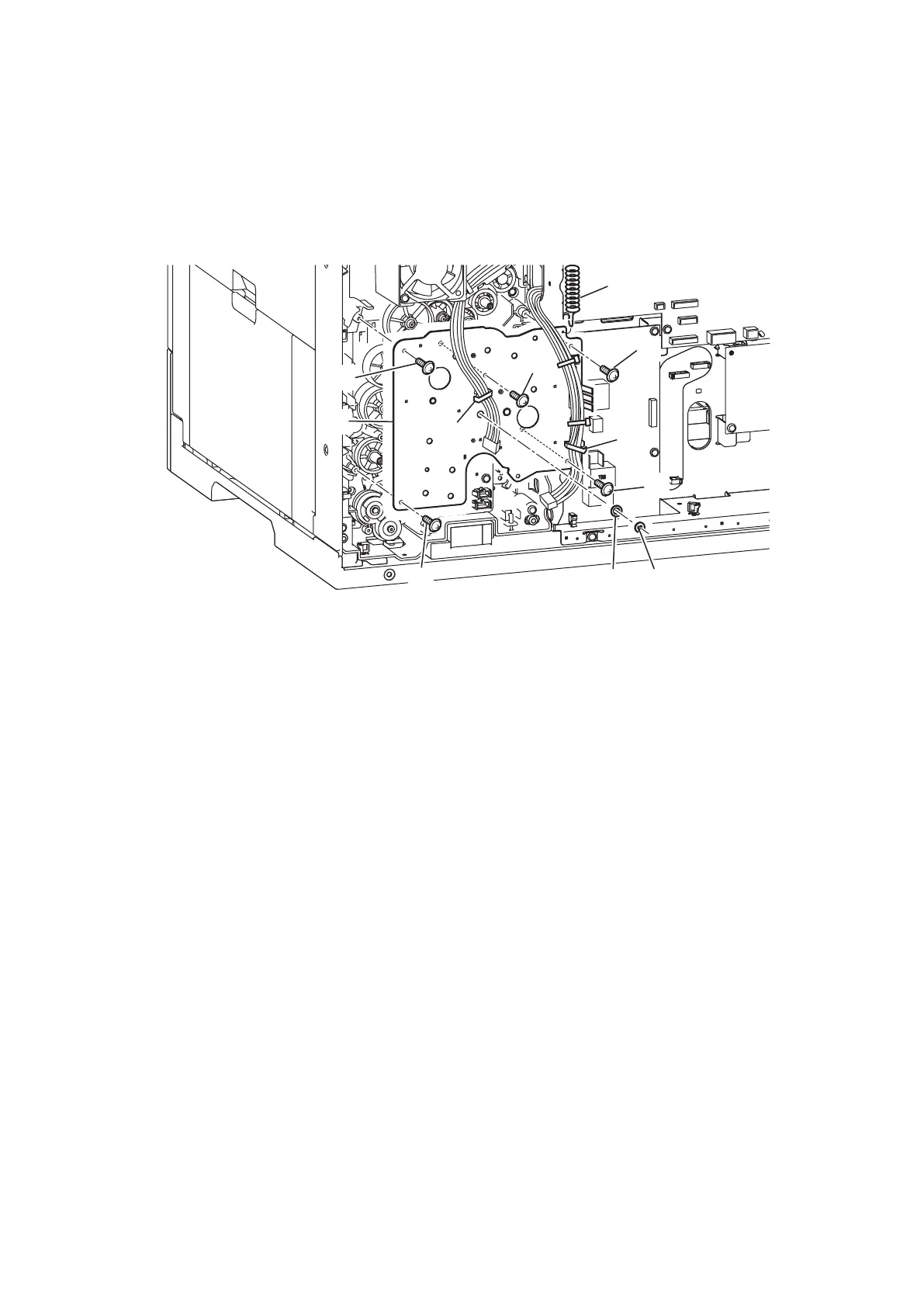

FRAME DRIVE A
1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Remove the PRT motor. (See “PRT MOTOR” on page 5-50.)
3. Remove the Plate FG regist. (See “CLUTCH” on page 5-51.)
4. Cut the cable tie [1], then remove the harness.
5. Remove the Spring C exit FG [2].
6. Remove the SR [3], then remove the Feed bearing [4].
7. Remove five screws [5], then remove the FRAME DRIVE A [6].
[
1
]
[
1
]
[
2
]
[
3
]
[
4
]
[
5
]
[
5
]
[
5
]
[
5
]
[
5
]
[
6
]
