3-105

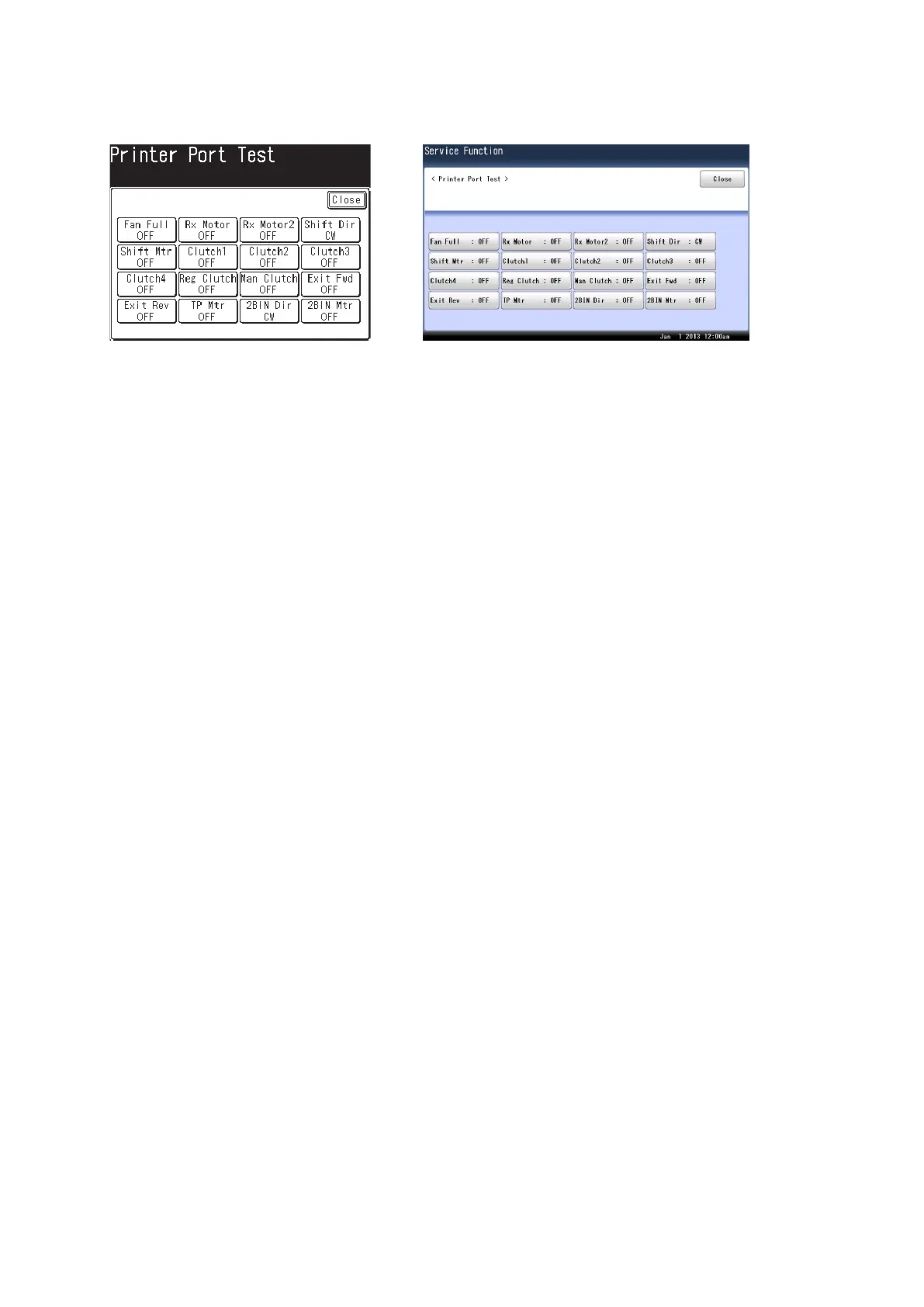

3.21 Printer diagnostic mode
This mode can confirm the operation of each part of the printer section.
1. Press <Mode>, <*>, <2>, <3>.
2. Select the device you want to set to ON.
Fan Full : Rotate the fan motor with full power
Rx Motor : Rotate the Rx motor
Rx Motor 2: Rotate the Rx motor 2
Shift Dir : Shows the shift motor rotate direction (MFX-3595 only)
Shift Mtr : Shift unit shifts and returns to its home position(MFX-3595 only)
Clutch 1 : Turn on clutch of cassette 1
Clutch 2 : Turn on clutch of cassette 2
Clutch 3 : Turn on clutch of cassette 3
Clutch 4 : Turn on clutch of cassette 4
Reg Clutch: Turn on resister roller clutch
Man Clutch : Rotate bypass tray feed clutch
Exit Fwd : Rotate the paper exit roller to paper discharge direction (forward)
Exit Rev : Rotate the paper exit roller to reveres direction (reverse)
TP Mtr : Rotate the toner motor
2BIN Dir : Shows the 2-bin motor rotate direction
2BIN Mtr : 2-bin motor rotates and stops every time pressed
