5-33
DISPLAY LCD B/W (MFX-3595)
1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover top FBS. (See “CIS” on page 5-27.)
3. Remove the PCB panel assy. (See “PCB PANEL ASSY (MFX-3595)” on page 5-30.)
4. Remove the PCB PANEL. (“PCB PANEL KEY/PCB SUBSW/PCB PANEL (MFX-3595)” on page 5-31)

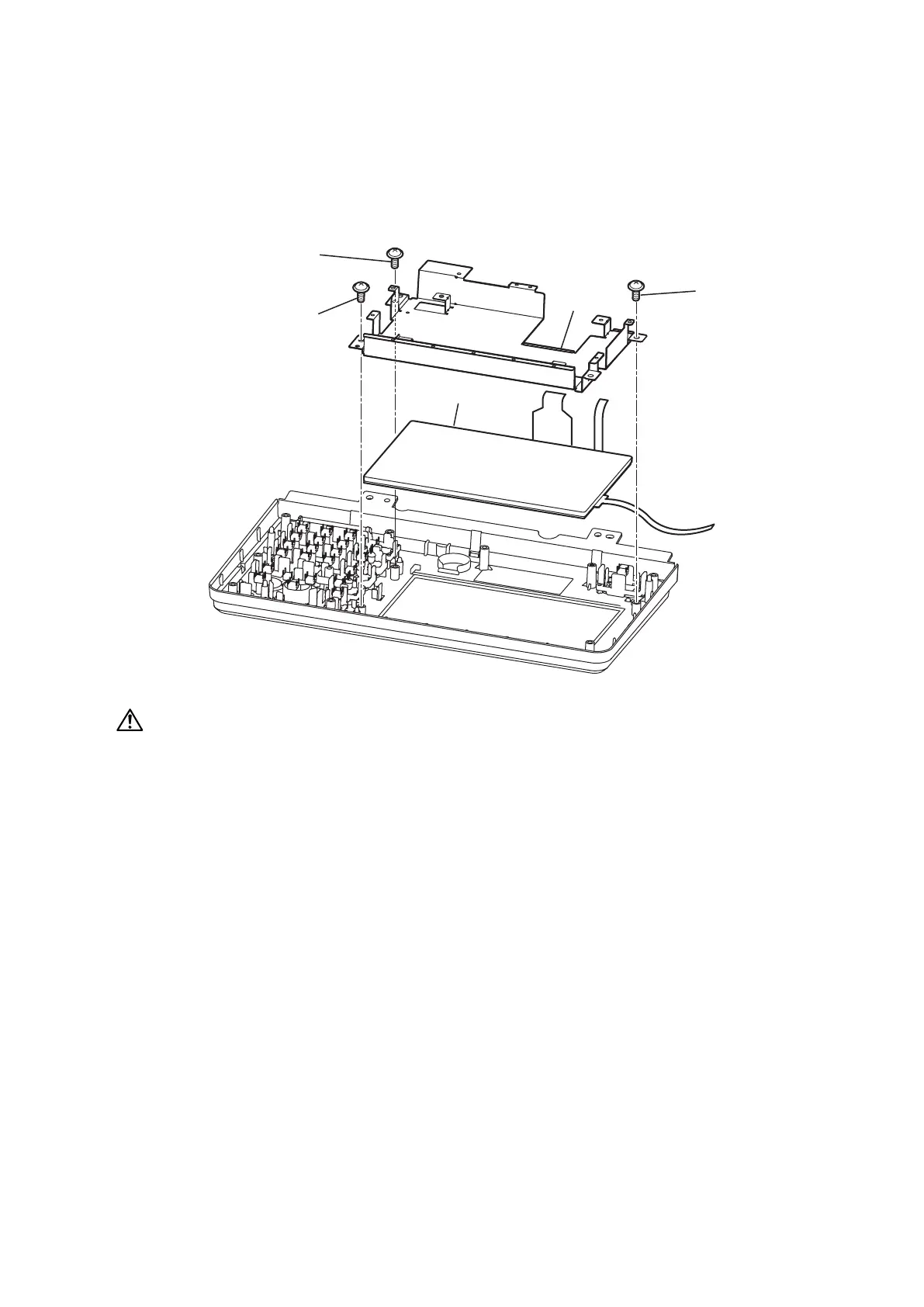

5. Remove three screws [1].
6. Remove the Stay LCD high [2].
7. Remove the DISPLAY LCD B/W [3].
>
@
>
@
>
@
>
@
>
@
CAUTION
Handle the LCD gently to avoid from breaking it.
If the LCD breaks and the liquid comes into contact with your hands, rinse with water. If you have con-
tact with your eyes or mouth, rinse with water and consult a physician.
