Muratec MFX-3595 User Manual

5-49

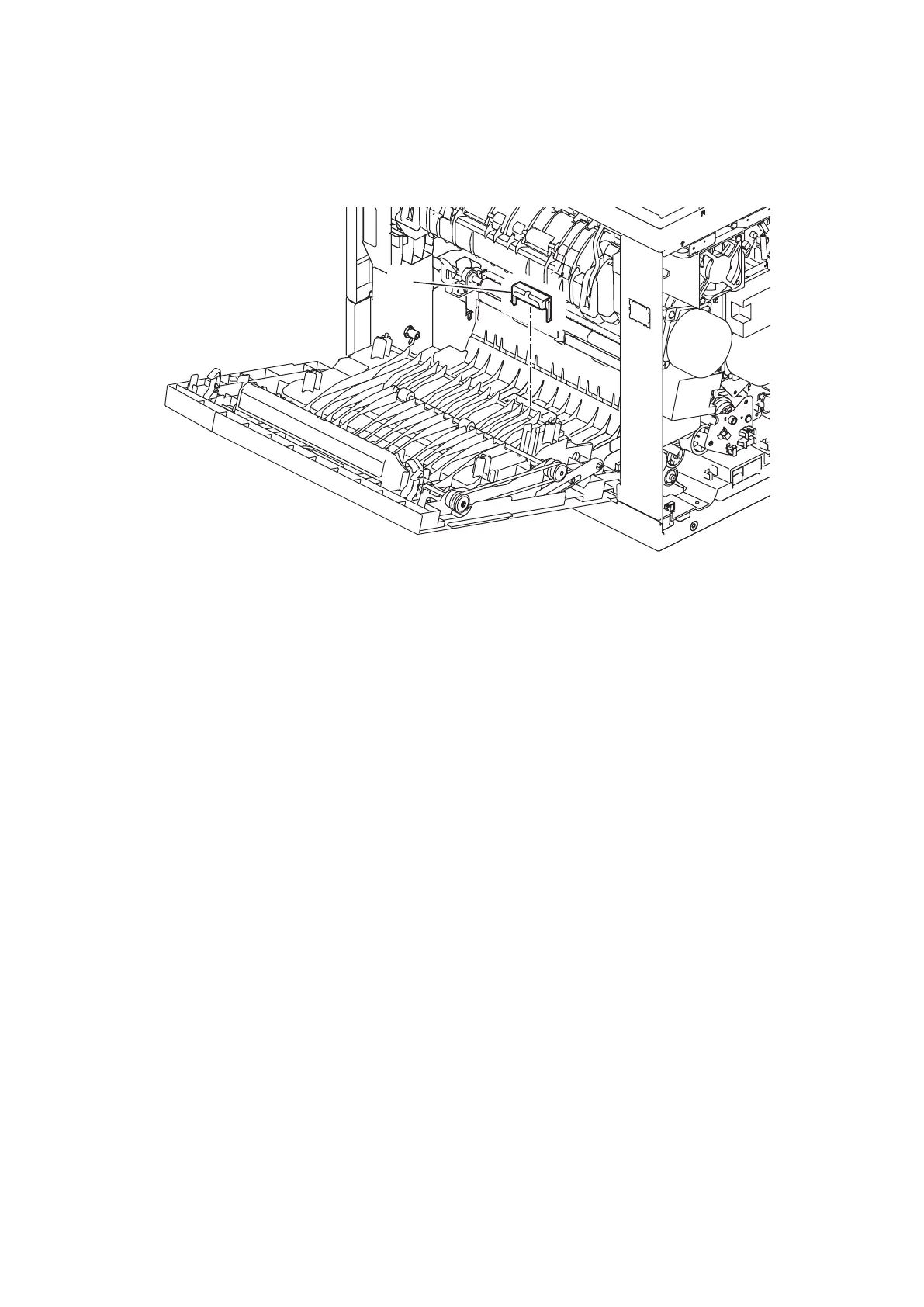

PAD PRESSURE MP
1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Open the Cover jam access. (See “ROLLER REGISTER” on page 5-44.)
3. Remove the Guide DUP MP [1] by bending the shaft. (See “ROLLER PICKUP MP” on page 5-48.)
4. Remove the Shaft pickup MP. (See “ROLLER PICKUP MP” on page 5-48.)
5. Remove the PAD PRESSURE MP [1].
>

@
