Muratec MFX-3595 User Manual

5-42

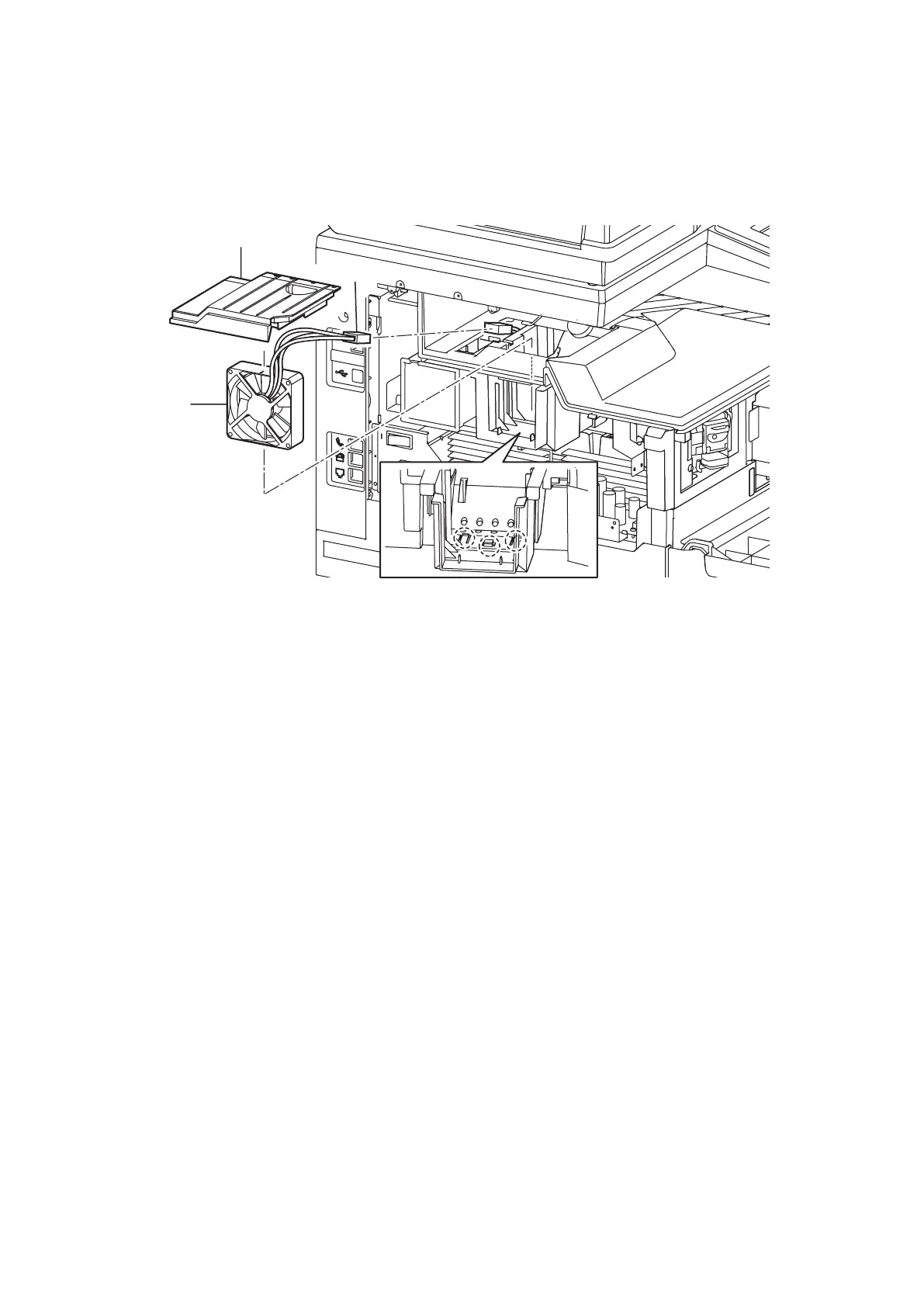

FAN L
1. Remove the Cover left. (See “PCB PSU” on page 5-40.)
2. Remove the Cover tray window [1].
3. Disconnect the junction connector [2].
4. Lift up the FAN L [3] and remove it.
* The bottom of the FAN L is secured with hook. To release the hook, push back and rotate the bottom
side.
>

@
>

@
>

@
