SENSOR PDS/SWBS

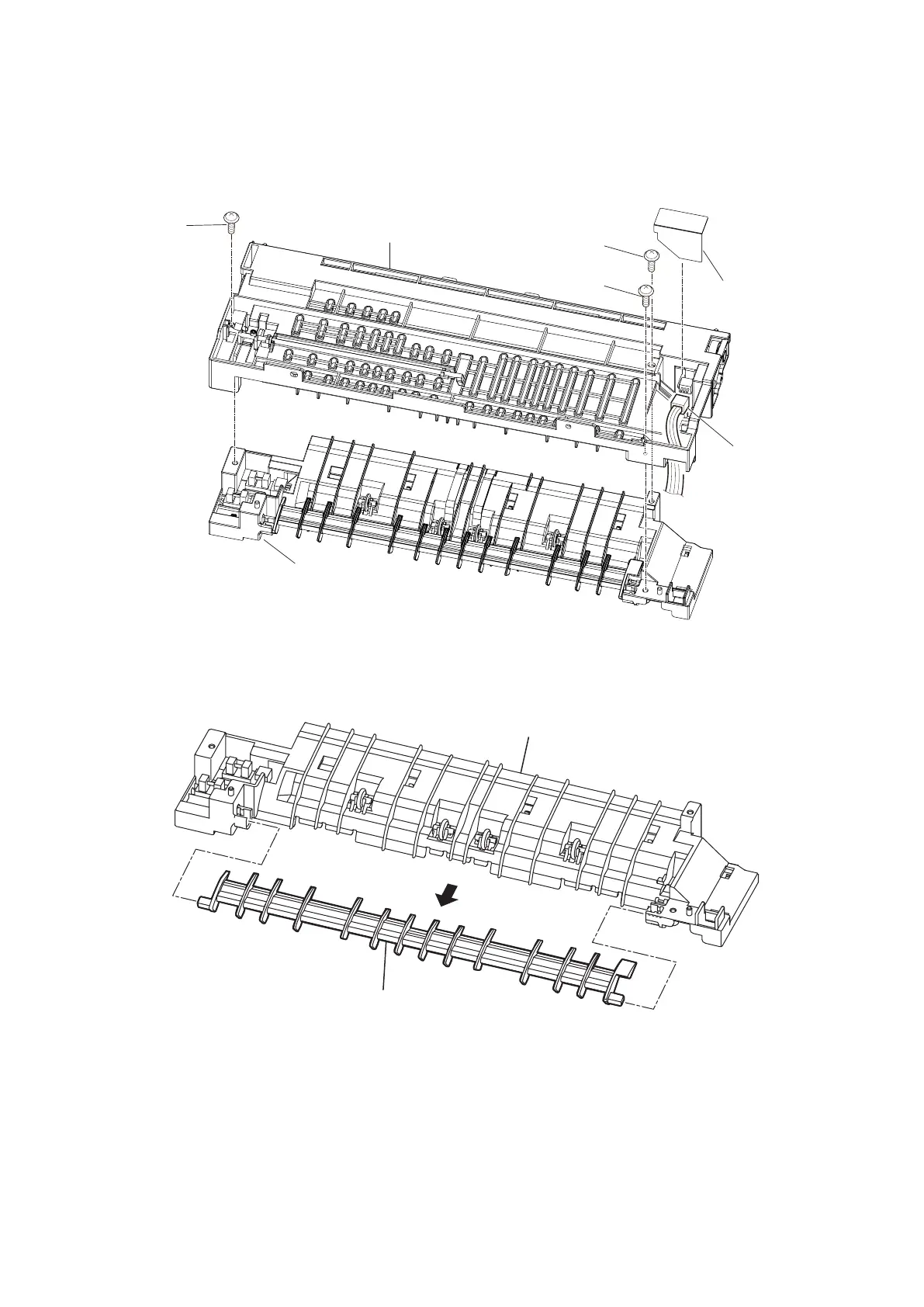

1. Remove the Exit assy. (See “EXIT ASSY” on page 5-63.)
2. Remove Sheet Exit Airflow [1].
3. Disconnect the connector [2].
4. Remove three screws [3], lift up the Guide upper exit [4] from the front and remove the Guide lower exit
[5].
[
1
]
[
2
]
[
5
]
[
3
]
[
3
]
[
3
]
[
4
]
5. Remove the Guide change exit [7] from the Guide lower exit [6].
[
