5-72
SENSOR PRS

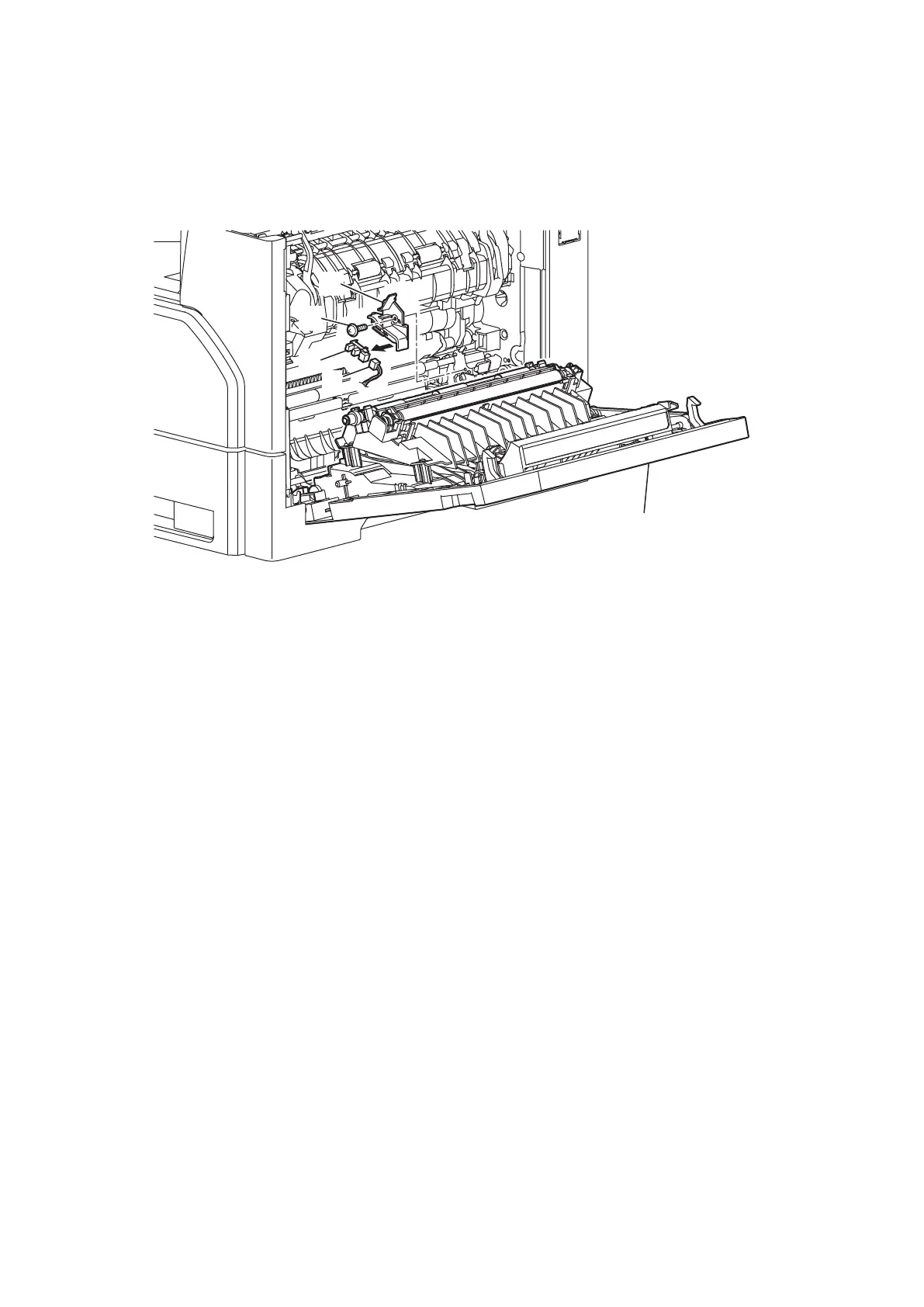

1. Open the Cover jam access [1].
2. Remove one screw [2].
3. Remove the Guide roller regist B [3], then disconnect the connector [4].
4. Remove the SENSOR PRS [5].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After releasing the hook on the short side, slide the sensor to the short side and remove it.
[
2
]
[
3
]
[
5
]
[
4
]
[
1
]
