ASSY INTERLOCKSW-CBL

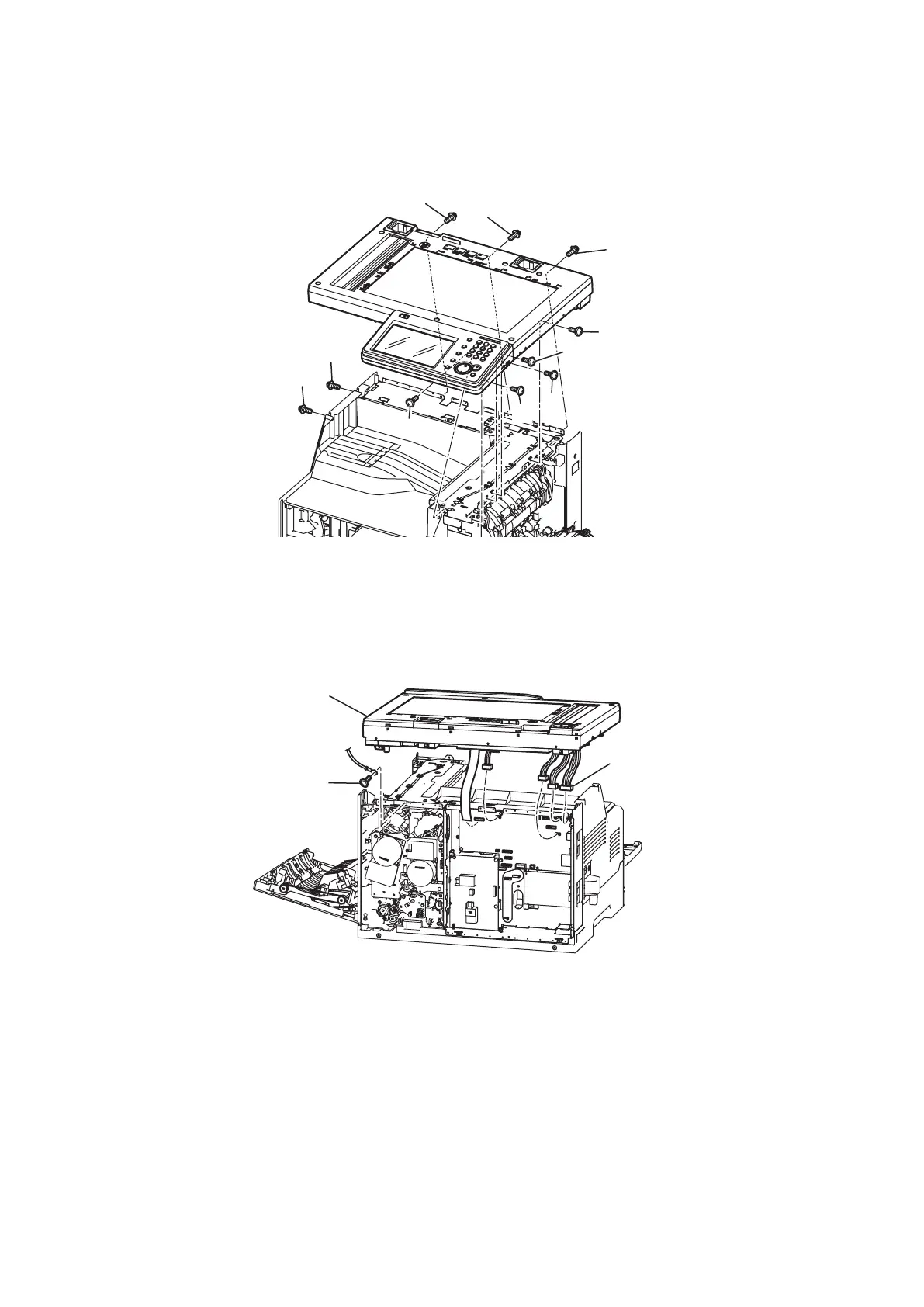

1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
3. Open the Cover jam access. (See “PRINTER FUSER” on page 5-58.)
4. Remove ten screws [1].
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
[
1
]
5. Remove one screw [2].
6. Disconnect five connectors [3], and remove the cores from the harness.
7. Remove the Chassis FBS [4].
[
