5-92

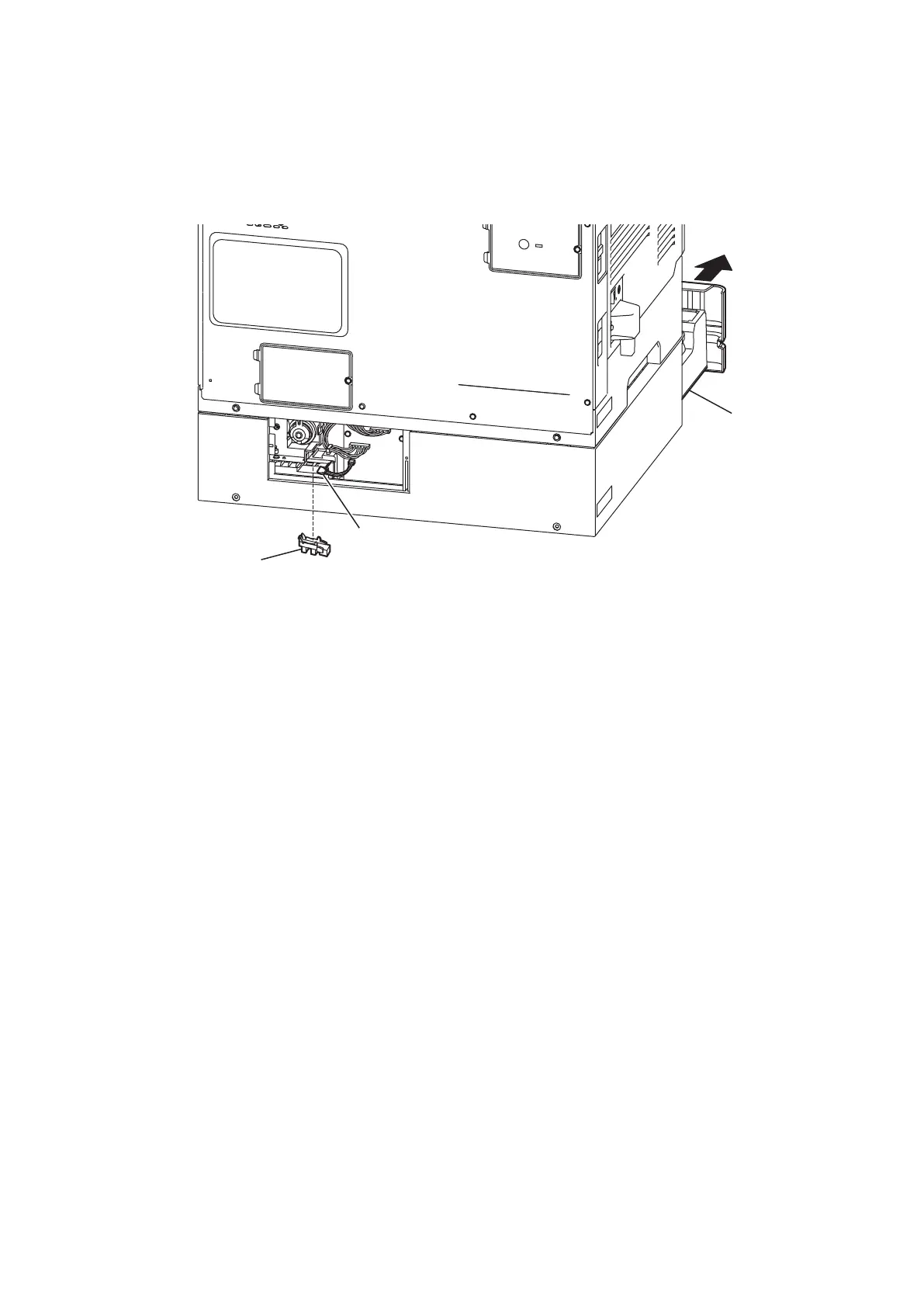

SENSOR OPEN OP
1. If there is a second tier OP Cassette extension, remove the lower cassette beforehand.
2. Pull out the cassette [1] a little.
3. Disconnect the connector [2].
4. Remove the SENSOR OPEN OP [3].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After releasing the hook on the short side, slide the sensor to the short side and remove it.
[
3
]
[
2
]
[
1
]
