Muratec MFX-3595 User Manual

5-32
PCB PANEL (MFX-3535)
1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover top FBS. (See “CIS” on page 5-27.)
3. Remove the PCB panel assy. (See “PCB PANEL ASSY (MFX-3535)” on page 5-30.)

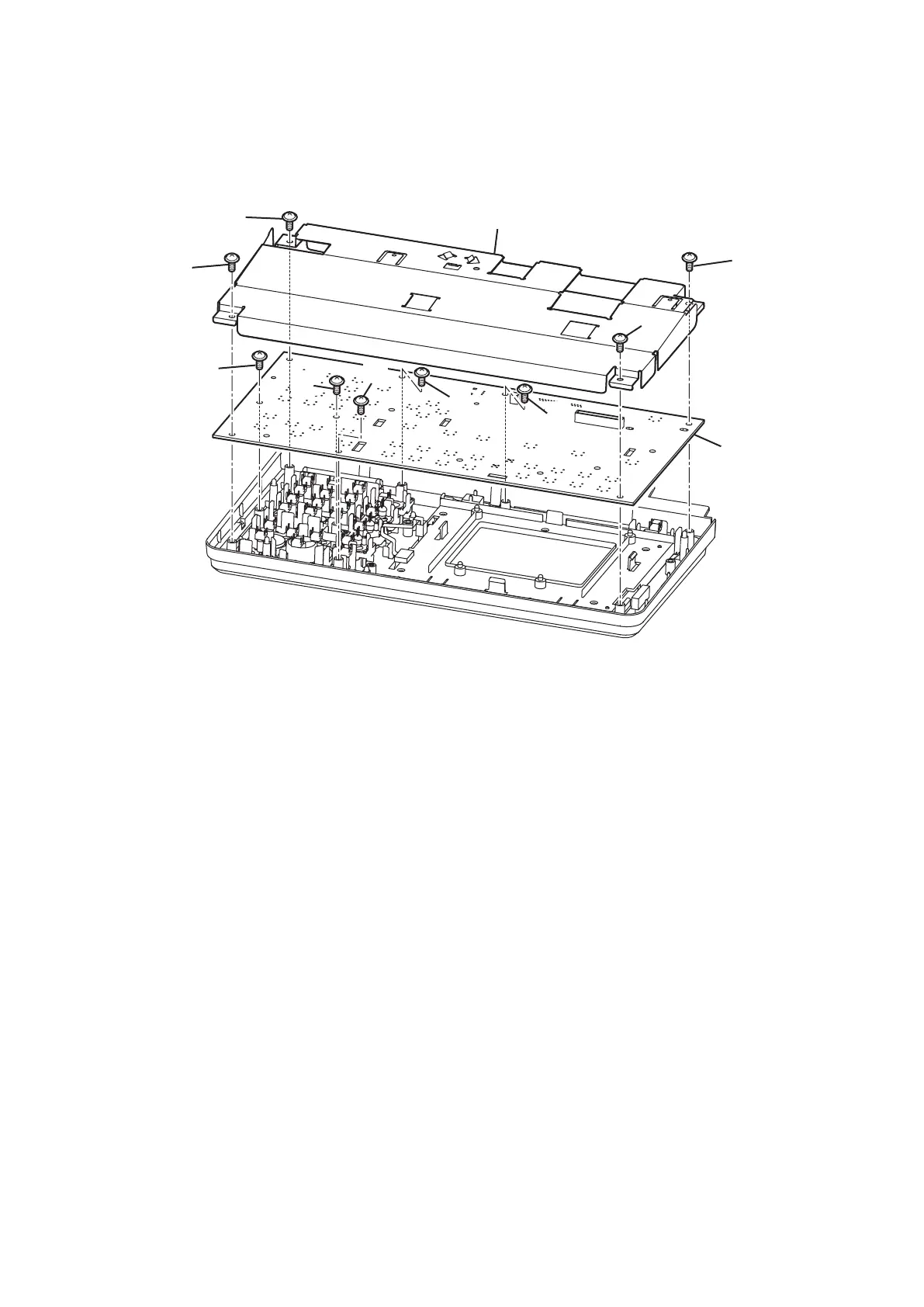

4. Remove four screws [1], then remove the Cover PCB panel [2].
5. Remove five screws [3], then remove the PCB PANEL [4].
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
