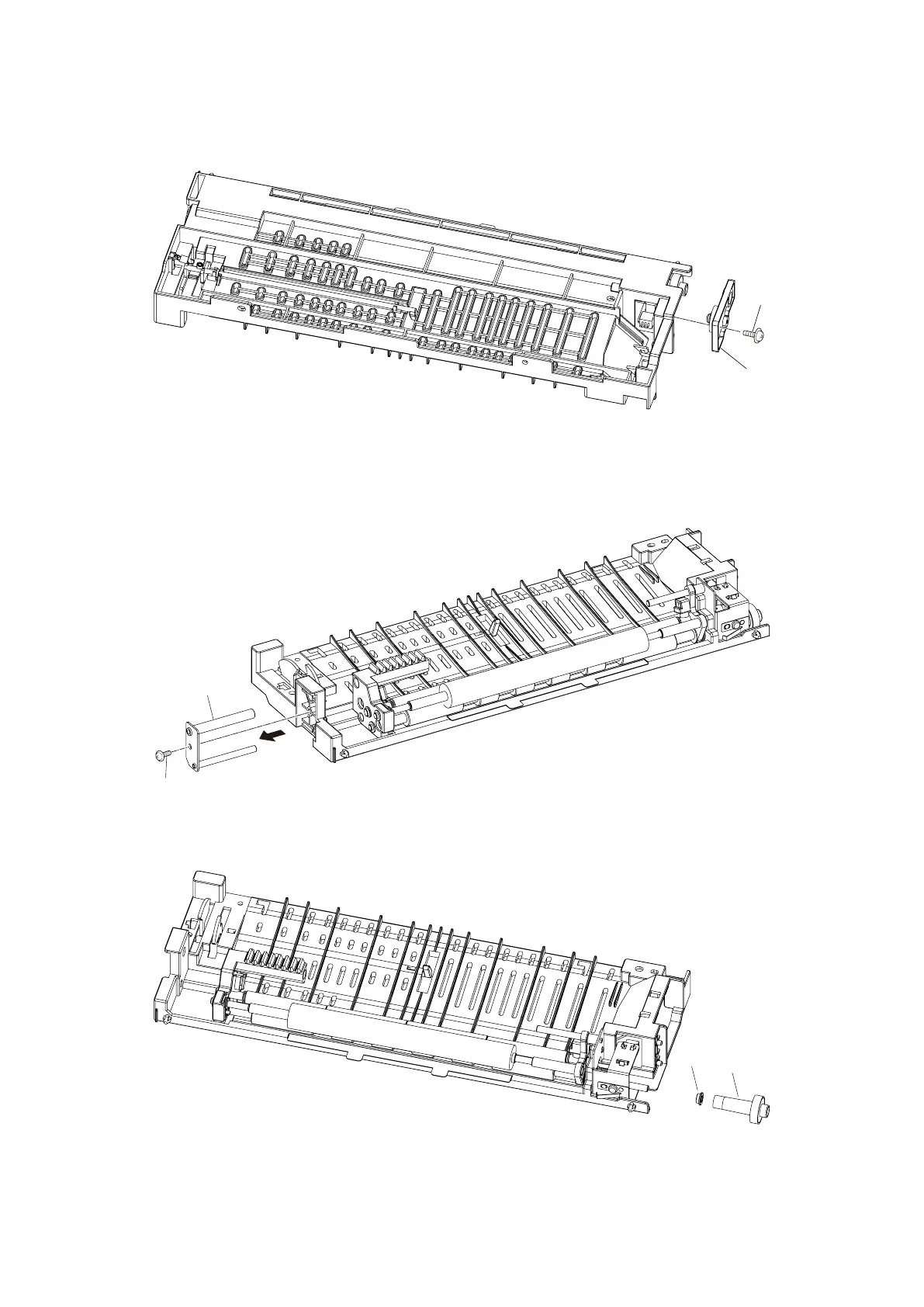

ROLLER EXIT DECARL / ROLLER SPONGE DECARL
1. Remove the Exit assy. (See “EXIT ASSY” on page 5-63.)
2. Remove the Guide lower exit. (See “SENSOR PDS/SWBS” on page 5-64.)
3. Remove one screw [1], then remove Bracket Gear Decarl [2].
[
1
]
[
2
]
4. Remove one screw [3], and remove Plate Shaft Guide Decarl [4].
[
3
]
[
4
]
5. Remove Gear 20 0.8 [5] and Bearing D4 6 [6] on the back side.
[
6
]
[
5
]
