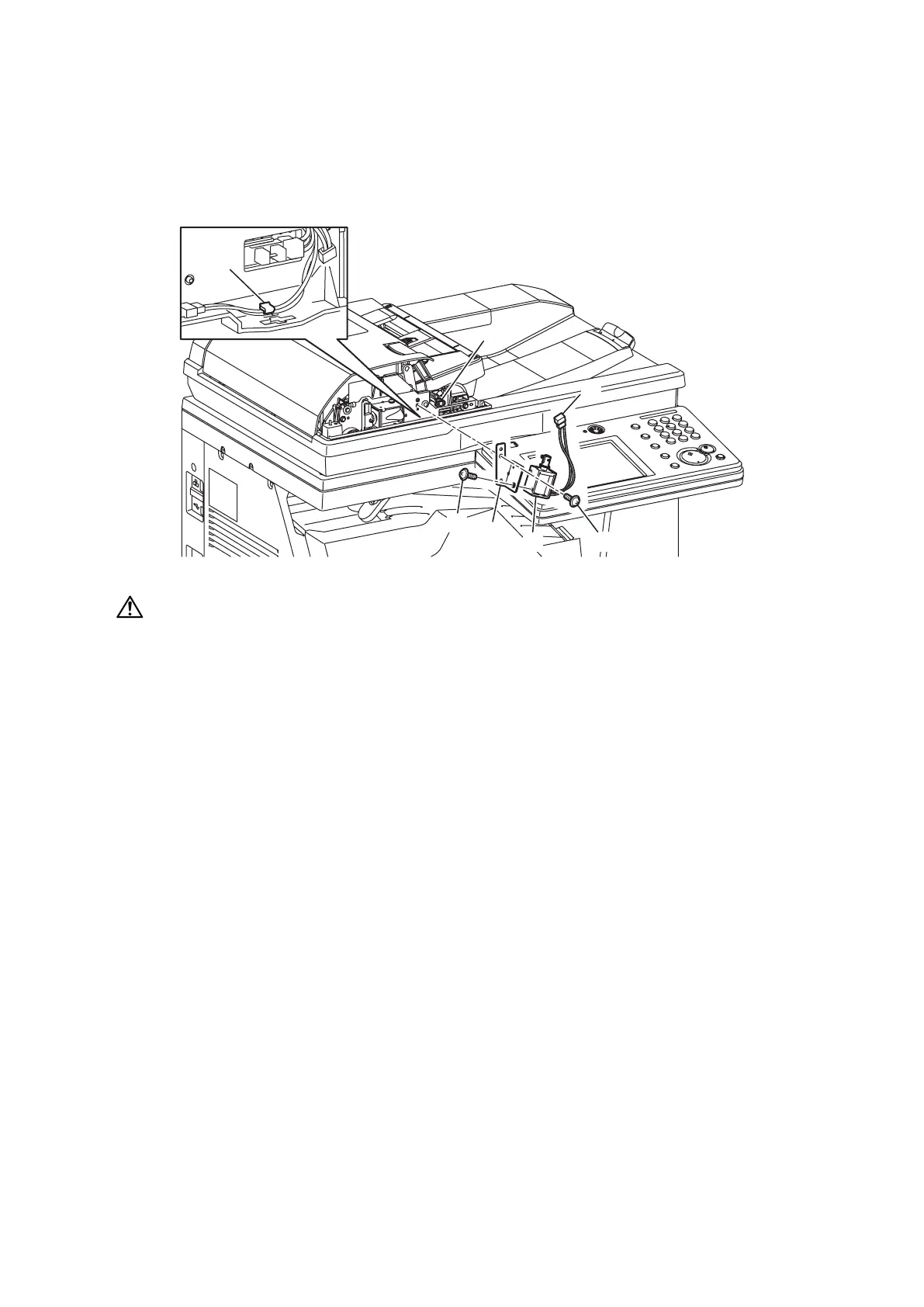

SOLENOID GUIDE
1. Remove the Cover TX side F. (See “COVER TX SIDE F” on page 5-8.)
2. Remove the APS Bracket. (See “GUIDE INNER” on page 5-24.)
3. Remove the harness from the hook [1].
4. Disconnect the junction connector [2].
5. Remove one screw [3] then remove the Bracket solenoid A [4].
6. Remove one screw [5] then remove the Bracket solenoid A [6].
[
5
]
[
1
]
[
4
]
[
2
]
[
7
]
[
3
][
6
]
CAUTION
When assembling, pass the Pin PK 2×12 of Solenoid guide through the Guide switch hole [7].
