5-13

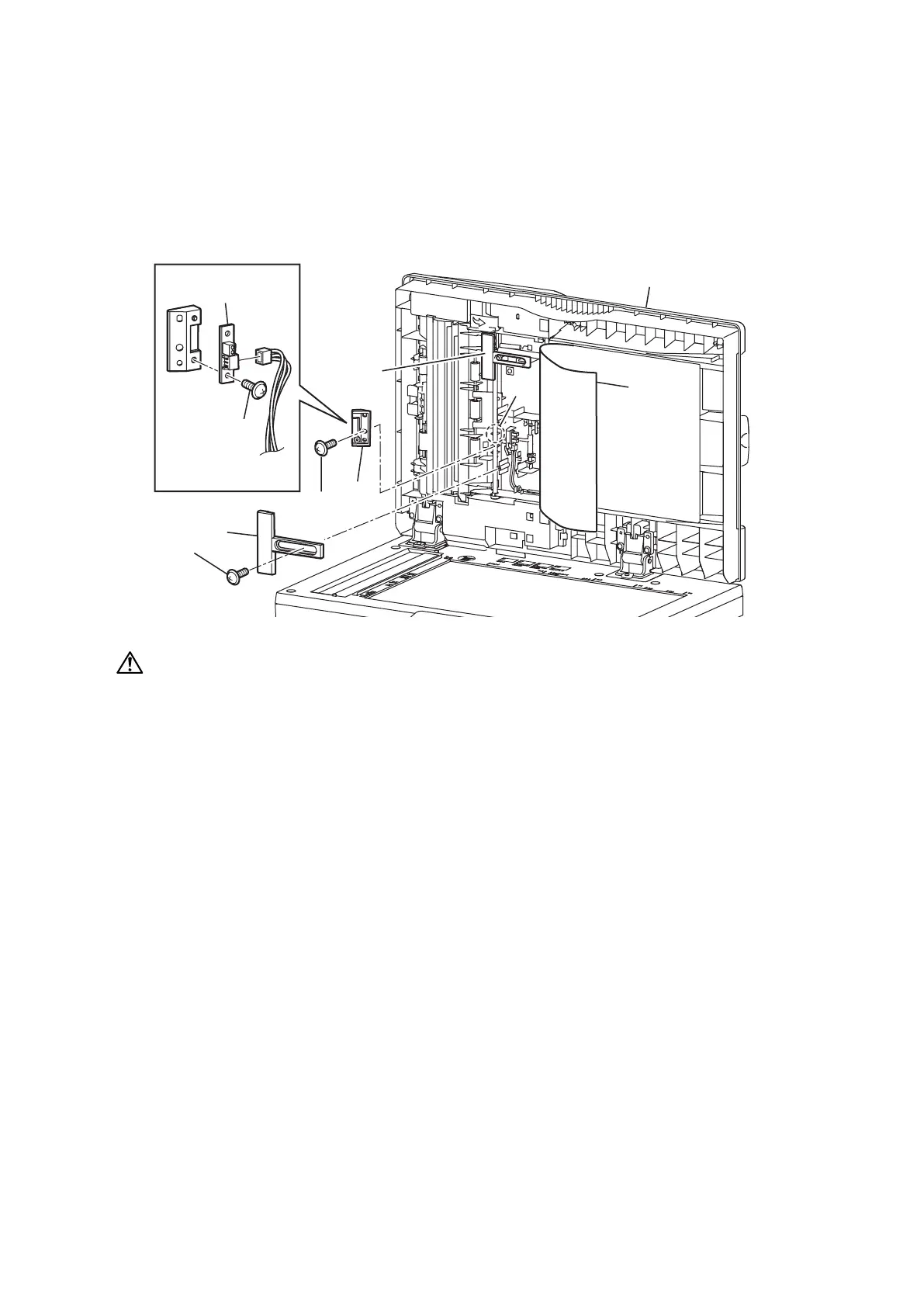

SENSOR DS3
1. Open the Cover platen [1].
2. Peel off the Sheet document press [2].
* Sheet document press is secured with the Velcro tape.
3. Remove one screw [3] of the Bracket press sheet.
4. Remove one screw [5] of the Bracket DS3 [4].
5. Remove the harness from the hook [6] then remove the Bracket DS3 [4].
6. Disconnect the connector from the SENSOR DS3 [7].
7. Remove one screw [8], then remove the SENSOR DS3 [7].
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
>

@
CAUTION
When securing the Sheet document press, slide two Brackets press sheet [9] to the right side.
